SY, SY-HV2M-B2 - Dual High Voltage Motor Relay, for controlling 240V bi-directional AC motors.

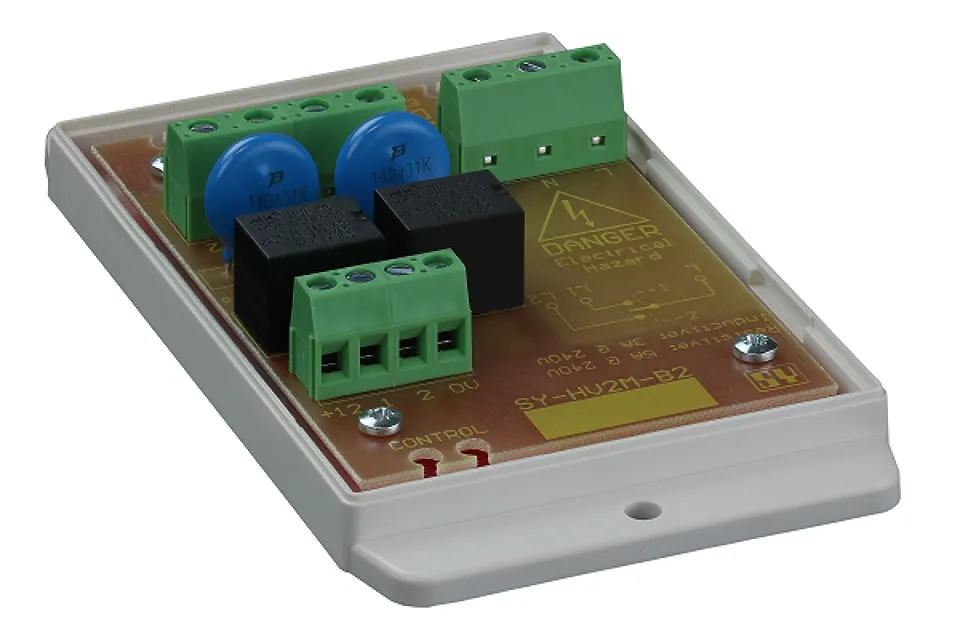

HV2M-B2 The Dual High Voltage Motor Relay is specifically designed for controlling 240V bi-directional AC motors and is suitable for use with electric drop-down projector screens, TV lift mounts, blinds etc.

The built-in failsafe feature prevents both of the relay outputs from being active simultaneously. It interfaces directly with any SY keypad series, and may also be used with any control system that can provide either two controllable logic outputs or two voltage-free normally open contact closure outputs. Comes in an ABS Screw Mountable Box.

2-Way Motor Control – Safe operation for controlling 2-way motors, where it is imperative that either the ‘Up’ or ‘Down’ contact only is energised.

Wide Compatibility with many Control Systems – Relays are controlled directly from the digital outputs of any SY keypad series.

Use with wide range of Controllers – Can be controlled from remote push button contact closure switches or with other brand controllers equipped with active Low Outputs.

Surface Mount – Comes fitted into an ABS enclosure. (Also available in a DIN Rail mount version as the SY-HV2M-DIN)

Features

• Fail-safe feature ensuring only one output will be active when both relays are on
• Easy to mount plastic enclosure
• Interfaces directly with the SY keypads
• Interfaces with control systems having active low logic outputs
• Interfaces with control systems having voltage-free contact closure outputs
• Both inputs are protected to prevent back-EMF
• Both outputs are protected for inductive loads

PART NUMBER: SY-HV2M-B2

RELAY CONFIGURATION FORMAT

  Dual Relay - Only one relay can be energised at any given time

CONTROL INPUTS

Relay Input Voltage

  12V DC

Relay Operating Current

  50mA per relay

OUTPUT CONTACT RATINGS

Mains Input Voltage

  250V AC Max

Contact Rating – Resistive Load

  5A @ 240V AC

Contact Rating – Inductive Load

  3A @ 240V AC

ENVIRONMENTAL AND PHYSICAL

Operating Temperature Range

  0 ~ 40°C (32 ~ 104°F)

Operating Humidity Range

  10 ~ 90% RH (non-condensing)

Dimensions (L x W x H)

  127 x 72 x 36

Weight

  115g

Enclosure Material

  ABS Plastic Enclosure

WHAT’S IN THE BOX

  1x SY-HV2M-B2

  3x cable ties
