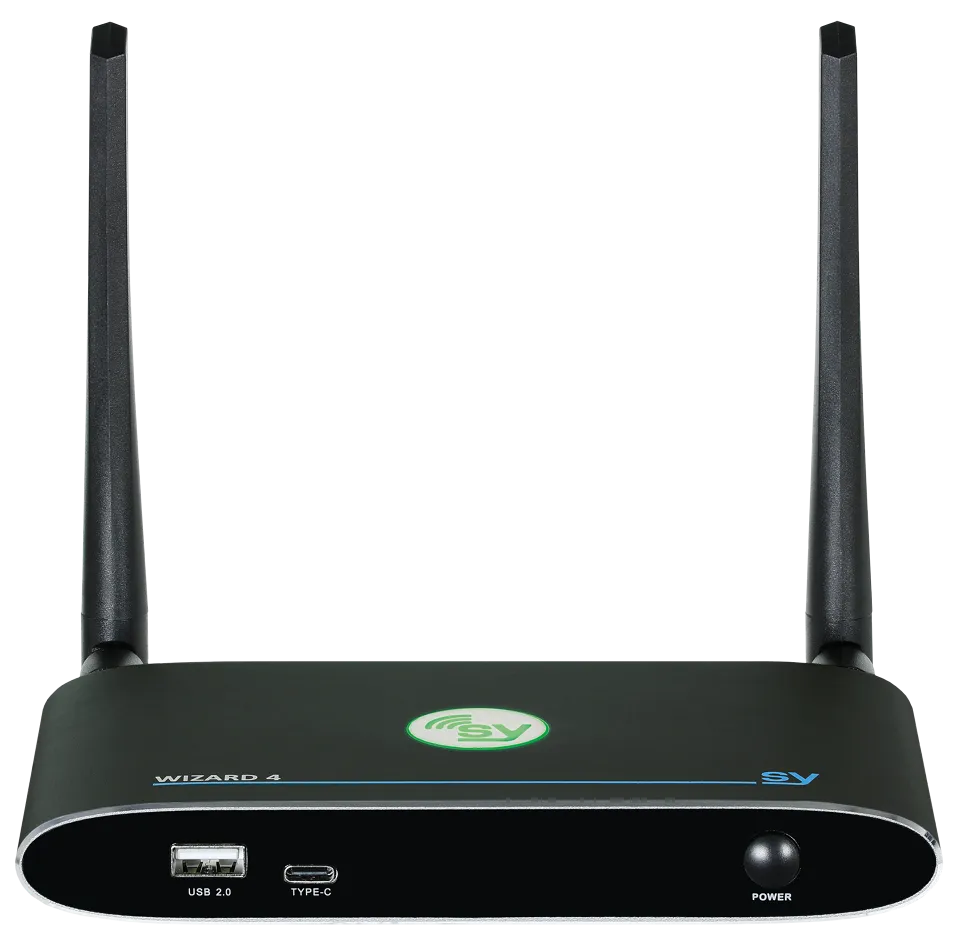

Wizard 4 – BYOD Wireless presentation Switcher.

An optimum solution for any meeting room or huddle space, allowing multiple participants to share content wirelessly from laptop or mobile, (using Airplay, Chromecast, Miracast, etc.) or by 'Touch to Show' via the Wand C or Wand H dongle quickly, and easily to a shared display. Wizard 4 allows presentation from a wide array of devices in a simple and intuitive way, with the capability of sharing one of up to four connected devices at any time, or in 'Multi-View' with up to 4x devices shown concurrently at the touch of a button.

The Touch-Back facility allows a presenter to navigate their source device from the display side. The presenter may annotate onto the display screen image/use it as a white-board, the image/white-board can be saved and sent to other delegates' connected source device. The Moderator facility ensures easy control of presentation with facilities such as, stop-sharing, full-screen mode, audio mute, and many more. No cables, no mess, no limitation – just present with ease. Ideal for scenarios including education spaces, meeting rooms, hospitality and offices/huddle spaces.

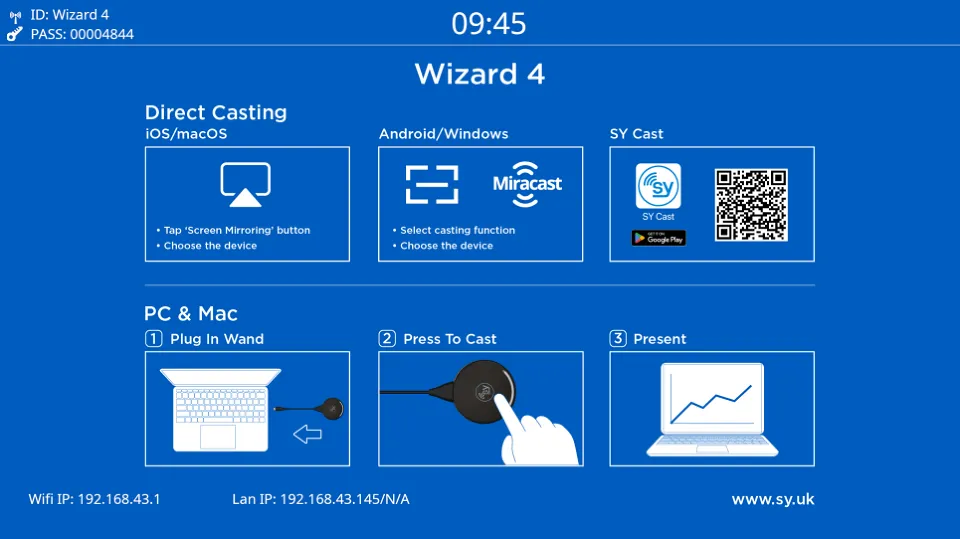

You are able to control and preview content using and OSD (On Screen Display) menu. A customizable home screen enables the experience to be tailored to your liking, along with a Central Management App for total meeting system control.

Wireless App Connection – Airplay, Miracast, Chromecast, laptops and mobiles can connect via various wireless methods directly to the Wizard, without the need for a dongle.

Connect using a Wand C or Wand H – Present video, audio or via USB from your devices via HDMI or USB-C video ports using the single button 'Touch to Show' Wand dongles, by simply pressing the button on the top of the Wand to connect to the meeting or presentation easily.

Use a Wand C dongle for devices with a USB-C video output.

Use a Wand H dongle for devices with an HDMI output.

Touch to Show – The ‘Touch to Show’ feature let’s you connect the wireless Wand dongles with the various presentation modes. Haptic feedback confirms operation.

Connect using Wireless LAN connection – By connecting to the Wireless network, you can connect to the Wizard 4 directly. Two LAN networks are available for maximum security. For example you could use the Main Wi-Fi for company employees and a Guest Wi-Fi network to join your visitors to the meeting.

Wireless content input up to 1080p – Connect your Laptop or other video source with resolutions up to 1080p.

Audio Output – The Wizard 4 has a stereo analogue audio line output via a 3.5mm TRS jack.

Moderator function - Ensures that the meetings can be kept under control by the meeting organiser straight from the main display or from the built-in Web GUI. Touch Back allows the presenter to naviagate the source from the display side, allowing for control of any connected laptop/mobile device. The presenter may annotate the screen image/use as a whiteboard, the annotated image/screenshot may then be sent back to any connected source device.

Security – Best-in-class data security, with Dual Network and high standard encryption ensures that your network remains safe and secure, whilst still allowing visitors to join your BYOD meeting.

Web GUI - The built-in Web GUI allows control of all the functions and features of the Wizard 4 for easy initial set up as well as carrying out ‘on the fly’ changes.

CEC Control – The Wizard 4 can be configured to either let the Wizard 4 control the display’s power, or to allow the Display to control the Wizard 4’s power.

PoE – The Wizard 4 can be powered via PoE or external PSU.

Video Conferencing compatibility –Compatible with mainstream VC platforms like Teams, Zoom, Webex etc.

Features

• ‘Touch to Show’ using the wireless Wand dongles or cast via Airplay, Google Cast, Miracast and LAN

• Supports Single, Dual, Triple, or Quad view

• Supports wireless Touch-Back

• Customizable home screen + Web GUI for system control

• Supports white-board and on-screen annotation

• Output Resolution scales up to 4K@60Hz

• Wireless content input up to 1080p

• Control and content preview using on screen display

• Best-in-class data security, with dual network and high standard encryption

• Analogue audio de-embedding

• PoE or external PSU

PART NUMBER: SY-Wizard 4

RESOLUTIONS / FORMATS

  Input resolutions:

  Resolutions up to 1080P@60Hz

  Output resolutions:

  Output Resolution options: 4K@60, 4K@30, 1080P @60, 720P@60

HDMI VERSION

  Output: HDMI 2.0 (18Gbps)

HDCP COMPLIANCE

  Accepts all versions up to HDCP 2.2

AUDIO

  Audio Input:

  AirPlay, Miracast, DLNA, USB

  Audio Output:

  Via HDMI, or 2.0 channel analogue via 3.5mm TRS Jack

CONTROL

   RS232 settings

   Any baud rate to maximum of 115200, 8 data bits, 1 stop bit

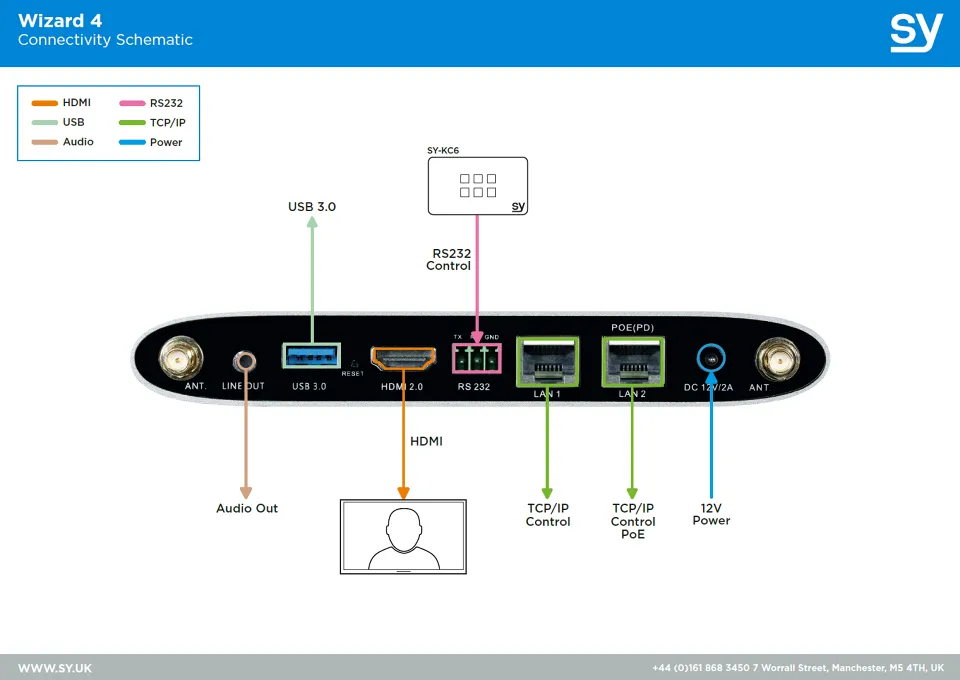

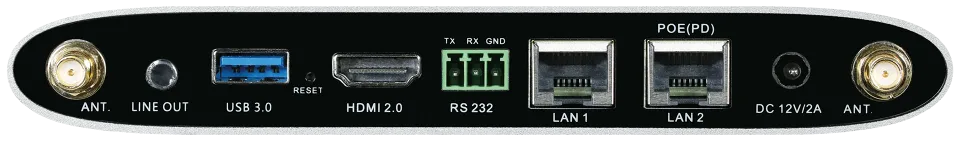

CONNECTORS

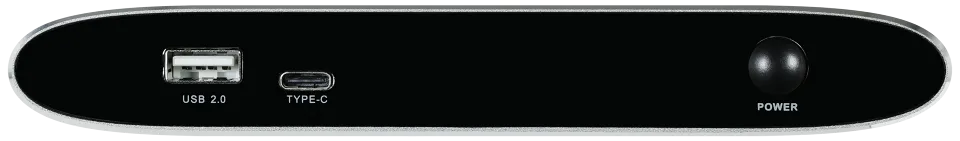

  1x USB-A 2.0

  1x USB-C

  1x USB-A 3.0

  2x LAN

  1x HDMI Output to Display

  1x 3.5mm TRS Audio Output

  1x 3-way Phoenix Screw Terminals for bi-directional RS232 control

  2x Antenna connections

  1x 12V/3A DC Power input (2.1mm barrel jack)

Wireless connection protocols

  Accepts - AirPlay, Miracast, DLNA, Windows/MAC, USB

Wi-Fi

  Transmission protocol:

  WIFI IEEE 802.11 a/g/n/ac

  Band:

  2.4GHz & 5Ghz

  Data rate:

  Up to 1200mbps

  Latency:

  20ms > 100ms

POWER

  Power Consumption:

  10W

  Power Supply:

  12V / 3A DC

  PoE standard:

  IEEE 802.3f

ENVIRONMENTAL

  Operating Temperature Range:

  0 ~ +40˚C (32 ~ 104F)

  Operating Humidity Range:

  20 ~ 90% RH (Non-condensing)

PHYSICAL

  DIMENSIONS (WDH) Each unit:

  220 x 120 x 41mm

  WEIGHT (net) Each unit:

  375g

WHAT’S IN THE BOX

  1x SY-Wizard 4

  2x Antenna

  1x 3-way Screw Terminal Connector

  1x 12V 3A Power Supply

  1x User Manual
