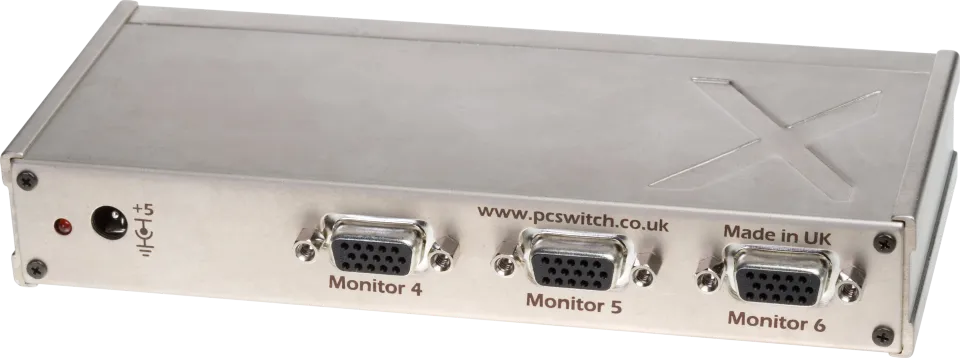

SY, CX-0S-VGAL-6 - 6 Way VGA Lite Splitter

The CX-0S-VGAL-6 is a 6-way VGA Splitter Lite catering for solutions up to 70m.

The VGA6X Lite provides high-quality video to a maximum of six VGA video display devices up to a distance of 65 m.

For the best results use only high-quality VGA cable.

The cascade feature allows additional VGA splitters to connect to any VGA output.

Each VGA6X Lite requires a 5V external PSU, consuming less than 0.75W during normal use.

• Inputs : 1x HD15 male VGA, 1x 5V 2.1mm DC socket
• Outputs : 6x HD15 female VGA
• Video levels : RGB: 0.7V into 75R, HV: TTL compatible
• Video format : VGA – UXGA compatible 1080p compatible, RGBHV, RGSB, YUV, Y/C, and CVBS formats supported Separate or composite HV; Horizontal 15-135kHz; Vertical 25-150Hz
• Max resolution : dependent on length and specification of SVGA cable
• Dimensions
• 160mm [W] x 70mm [D] x 28mm [H]
• Net Weight 265g
• Gross Weight 365g
