SY, SY-UFM-4K-SET - 4K30 UHD Simplex (1 Fibre) HDMI extender Dongle Set

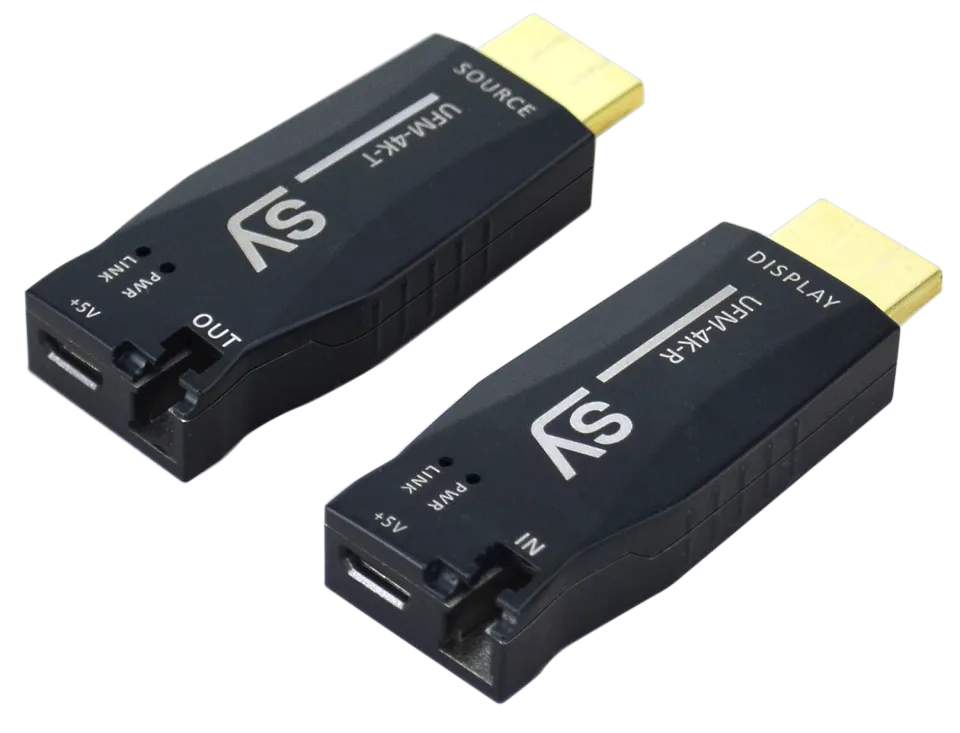

UFM-4K - Mini Optical Fibre Extender - The mini UFM-4K set consists of a transmitter and receiver pair that can extend 4K HDMI video over a single filament fibre with LC-LC connections (Simplex LC-LC).  It is totally immune to electro-magnetic interference as well as any ground potential differences.  These are major advantages when using fibre to transmit video signals over a very long distance in a reliable format.

Fibre Cable Types - Using either Single-Mode (9/125µ) LC-LC optical fibre or Multi-Mode fibre (50/125μ) optical fibre.

HDCP 1.4 support - At up to 300M transmission distance with either type of optical fibre.

HDMI 1.4b – Is supported at all distances, meaning Resolutions up to 4K30 4:4:4 or 4K60 4:2:0 are possible.

With full bypass of HDCP version 1.4 providing compatibility with encrypted content while transmitting up to 300M.

Works over a very long distance - Transmitting up to 300m requires either a simplex Single-Mode (9/125μ) or Multi-Mode fibre (50/125μ) LC-LC optical fibre.

Extended Range - If HDCP support is not required, then an even longer transmission distance of 2000m can be achieved by using a simplex single-mode (9/125μ) LC-LC optical fibre.

Noise Immunity - Total immunity to electro-magnetic interference, with absolute ground isolation over the long distance.  So you can run mix of fibre and copper cables side by side over the entire length of the cable run without any fear of signal degradation.

Easier to install - Fibre optic cables are much thinner and lighter than copper cables, so less space and weight means you can install more in a smaller cable tray or cable duct etc.

Reliable and secure format signal - Ideal for high security links. Cannot eavesdrop transmissions. Fibre optic cables are much more secure for data transfer, since it is very difficult to tap Optical Fibre.

This is product of choice for situations that require any of the attributes mentioned above.  Suitable for installation into premises for government, educational campus, large office, stadiums, mansions, etc.

Features

• HDMI 1.4b
• HDCP 1.4
• Up to 4K30 4:4:4 and 4K60 4:2:0
• LC-LC optical fibre connections
• Powered via USB
• 300m over Multi-Mode fibre or Single-Mode fibre
• 2Km over Single-Mode fibre
• Small form factor
• EMF Immunity

Part Number: SY-UFM-4K

VIDEO RESOLUTIONS/FORMATS

  TRANSMISSION DISTANCE

  300m using Multi-Mode fibre (50/125μ)

  300m using Single-Mode fibre (9/125μ)

  2000m using Single-Mode fibre – (9/125μ – No HDCP support)

BANDWIDTH

  10.2Gbps

HDCP

  Compatible with all versions up to 1.4 up to 300m

  No HDCP over 300m

INPUTS and OUTPUTS

Video

  1x HDMI 1.4b

Power

  1x Micro USB Port on both the TX and RX

Network

  1x LC Optical Fibre port

POWER

Power Supply

  5V DC -@1A Max (USB -Micro -B)

Power Consumption

  TX  2.5W

  RX  2.3W

ENVIRONMENTAL

Operating Temperature

  -10 to +40°C (+14 to +104°F)

Operating Humidity

  10 to 90 % RH (non-condensing)

PHYSICAL

Dimensions (WHD)

  60 x 10 x 22mm

Case Material

Aluminium housing

WEIGHT (net)

26g

WHAT’S IN THE BOX

  1x SY-UFM-4K-T

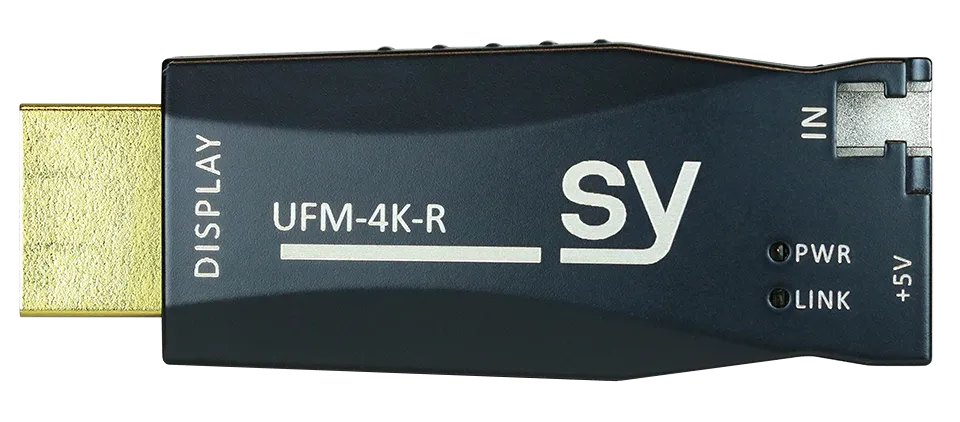

  1x SY-UFM-4K-R

  1x 0.5m LC-LC Fibre Cable

  2x USB PSU (5V 1A)

  1x User’s Manual
