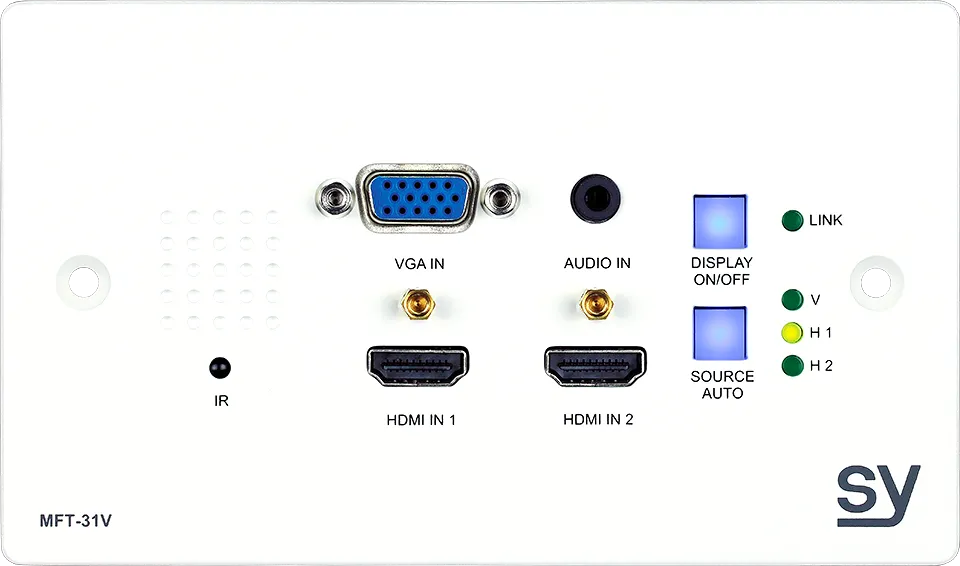

SY, SY-MFT-31V-W-SET - 4K UHD Wall-mounted Multi Format HDBaseT extender -Includes SY HDBaseT Receiver

PART NUMBER: SY-MFT-31V

Video Inputs

  2x HDMI

  1x VGA + L/R Audio

Audio Inputs

  L/R 3.5mm Stereo Jack - 20Hz – 20kHz, 1.5Vrms max

VIDEO RESOLUTIONS/FORMATS:

  VESA and SMPTE up to       2160p with 3D

  All HDMI resolutions up to    3840x2160 @ 30Hz 4:4:4 / 60Hz 4:2:0

  All PC resolutions up to        1920x1200 @ 60Hz

Output Scaling

  1024x768 @60Hz        1280x720 @50Hz         1280x720 @60Hz

  1360x768 @60Hz        1600x1200 @60Hz       1920x1080p @50Hz

  1920x1080p @50Hz    1920x1080p @60Hz     3840x2160 @30Hz

HDMI

  1.4

BANDWIDTH

  10.2Gbps

HDCP

  1.4, 2.2, Cascade mode

MAXIMUM HDBaseT RANGE

  40m - 4K30 4:4:4

  70m - 1080p60

CONTROL

  RS232

  IR

  Front Panel buttons

  Auto-Switching

  CEC

RS232 communication settings:

  2400,  4800,  9600(Default),  19200,  38400,  57600,  115200 bps

  8 data-bits   No parity   1 stop bit   No handshaking

POWER

Power Supply

  24V DC @ 1.25A via 2 pin phoenix screw terminal connector

Power Consumption

  5W max. (excluding HDBaseT Receiver)

Environmental

Operating Temperature

  -10 to +40°C (+14 to +104°F)

Operating Humidity

  10 to 90 % RH (non-condensing)

PHYSICAL

Weight (net)

  0.245kg

Dimension (WHD)

   146 x 86 x 43mm

Case Material

  Aluminium

Finish

  Brushed Aluminium

WHAT’S IN THE BOX

  1x MFT-31V

  2x 3 pin phoenix screw terminal connectors

  1x 24V DC 1.25A PSU with UK and EU plug adapters

  1x User’s Manual

1x HDBT Receiver
