SY, SY-MFT62-SET - Compact 4K UHD Matrix - Includes SY HDBaseT Receiver

PART NUMBER SY-MFT62

VIDEO RESOLUTIONS/FORMATS

HDMI Video Input/Output

  VESA and SMPTE 480p to 2160p (4K UHD) with 3D.

  All resolutions to:-

  4096x2160p @60Hz 4:2:0 8bit

  3840x2160p @30Hz 4:4:4 8bit

  All PC resolutions to 1920x1200

VGA Video Input

The following VGA resolutions are supported:-

  800x600      1024x768    1280x768   1280x800    1280x1024

  1400x1050  1600x1200  1920x1080  1920x1200

HDMI Audio Input/output

  Pass through of all HDMI audio formats including:-

  Dolby D (TrueHD)  DTS (HD-Master Audio)  PCM Channel count: 2.0 to 7.1

  Sample rates:-

  32 kHz  44.1 kHz  48 kHz  88.2 kHz  96 kHz  176.4 kHz  192 kHz

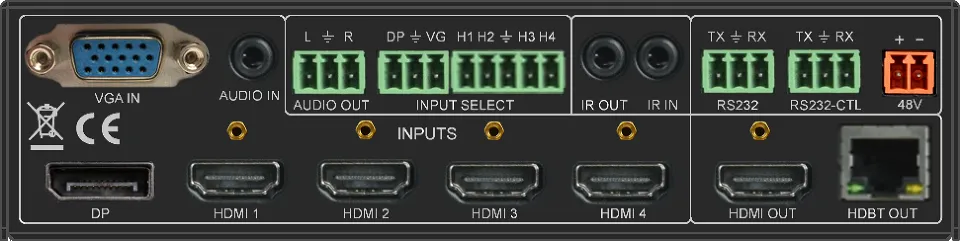

INPUTS

VIDEO

  4x HDMI 2.0

  1x DisplayPort

  1x VGA

AUDIO

  1x 3.5mm analogue stereo for VGA IP

OUTPUTS

VIDEO

  1x HDMI 2.0

  1x HDBaseT (IPoC)

AUDIO

De-embedded Audio out

  Analogue L+R

  PCM 2.0 channel audio (from HDBT output) extracted onto 3 pin Phoenix connector.

  Stereo L/R  0.7V Rms – 20Hz-20KHz

BANDWIDTH

  10.2Gbps

HDCP

  Compatible with all versions up to 2.2

EDID MANAGER

  EDID data and manual EDID management

CONTROL

  IR, RS232, Front Panel Buttons, Remote Contact closure terminals

POWER SUPPLY

  48V DC max.

POWER CONSUMPTION

  14.4W (inc. a powered HDBT RX)

WEIGHT

  0.860kg

SIZE (WHD)

  164 x 40 x 145mm

MFT62

WHAT’S IN THE BOX

  1x MFT62

  1x Wall power supply with UK and EU plug adaptors

  1x User’s Manual

Also available as the ‘MFT62-SET’

MFT62-SET

WHAT’S IN THE BOX

  1x MFT62

  1x SY-HDBT-70-SE-R

  1x Wall power supply with UK and EU plug adaptors

  1x User’s Manual

1x HDBT Receiver
