SY, SY-HDBT-100-ARC-SET - ARC HDBT Long range 110m Extender set.

The SY-HDBT-ARC-100-SLIM-SET is a combination of the SY-HDBT- ARC-100-SLIM-T and SY-HDBT- ARC-100-SLIM-R HDBT transmitter / receiver pair.  Allowing Video, Audio and control to be sent down one single CAT 6 (preferred) up to a maximum of 100m.

This SET can broadcast 4K UHD HDMI up to 100m or 1080p up to 150m.

With its Bi-directional RS232 port this long-range extender will pass through all control signals, which can be used for control of the remote display from the source end, and/or for controlling the source from the display end.

The transmitter provides outputs for both Toslink (S/PDIF) and stereo analogue for audio and the receiver has an audio Toslink fibre input port.

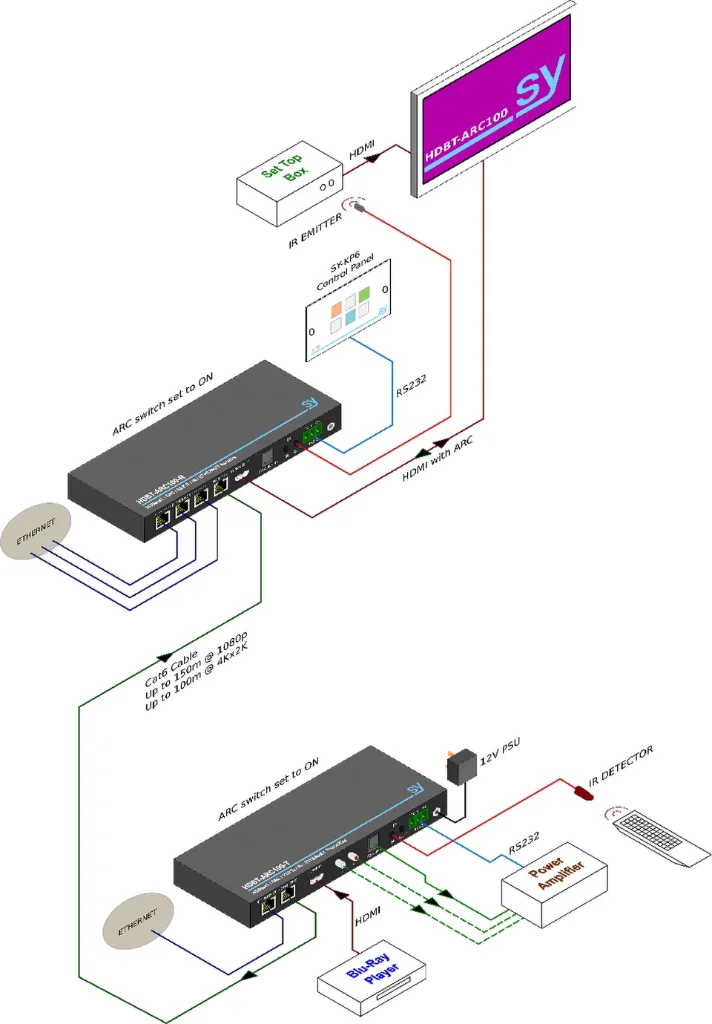

This extender set can also use the HDMI audio return channel (ARC) from the display, and send it all the way through back to the HDBT-ARC100-T transmitter where the audio can be connected to an amplifier using either the analogue stereo (L+R) or optical Toslink output ports on the transmitter unit.

Also included is an Ethernet data port on the transmitter unit for extending a LAN data network to the Receiver which has 3x Ethernet ports.

HDCP compatible for versions 1.4 to 2.2

The HDBT-ARC-100-SLIM extender has PoC (Power over Cable) system, which means a single PSU from either the Transmitter or the Receiver can power the set, saving cost and installation time.

HDBaseT Extenders are the ideal solution for connecting HDMI equipment over longer distances than an HDMI would allow, with the added benefits of being able to carry control and data signals.

These extenders will suit a wide range of applications in the AV industry, digital signage and at home.

Features

• HDMI 2.0 4K2K up to 100m or 1080p up to 150m
• Max resolution: 4K2K @ 60Hz 4:2:0 - Supports 1080p 3D
• Supports CEC and ARC
• Support for HDMI 1.4 and HDCP 1.4 & 2.2
• HDBaseT port provides PoC, so only one PSU is required to power both units
• Bi-directional IR and RS232 control
• Ethernet switch – 1 port on ARC100-T
• Ethernet switch – 3 ports on ACR100-R
• Status LEDs for Power, HDMI/HDCP mode, Link status and unit operating status
• Only one 12V DC power supply required (at the Transmitter or Receiver)

PART NUMBER: SY-HDBT-ARC-100-SLIM-SET

Video General Resolution

HDMI:

  up to 4Kx2K@60Hz 4:4:4 (18Gbps)

  480i   480p   720i   720p   1080i   1080p   1920 x 1200   4K x 2K

Standards and Compliance

  HDMI 2.0

  HDCP 1.4 and 2.2

  HDBaseT Cable cat5e/cat6/cat6a

  100m for 4Kx2K 18Gbps

  150m for 1080p

Transmitter

Video Connectors

HDMI:

  1x Female HDMI socket

HDBaseT

  1x RJ45

Audio Connectors

  1x L+R RCA analogue audio input

  1x Toslink digital optical output

Control Ports

  1x Ethernet

  1x IR input

  1x IR output

  1x RS232

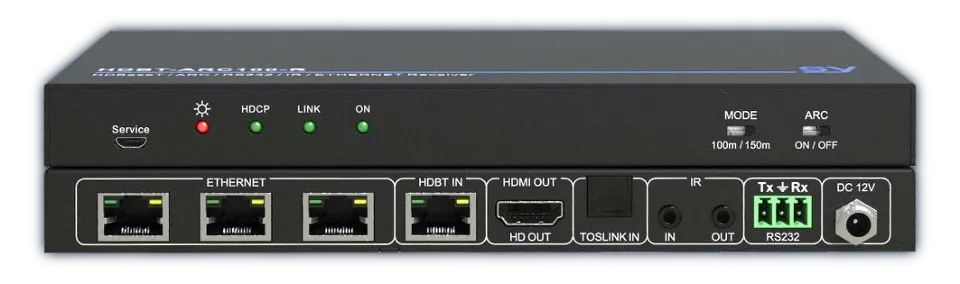

Receiver

Video Connectors

HDMI

  1x Female HDMI socket

HDBaseT:

  1x RJ45

Audio Connectors

  1x Toslink digital optical input

Control Ports

  3x Ethernet

  1x IR input

  1x IR output

  1x RS232

Environmental

Temperature:

  0~ 45℃

Humidity:

  10% ~ 90%

POWER

PSU:

  12V DC @ 2A

Power Consumption:

  10W (Max)

PHSICAL

Dimensions (W*H*D):

  115 x 12 x 84 mm

Weight:

  240g

WHAT’S IN THE BOX

  1x SY-HDBT- ARC-100-SLIM-T transmitter

  1x SY-HDBT- ARC-100-SLIM-R receiver

  1x PSU

  1x User’s Manual
