SY, SY-MSU-88-18G - 8x8 HDMI 2.0 (18G) Matrix

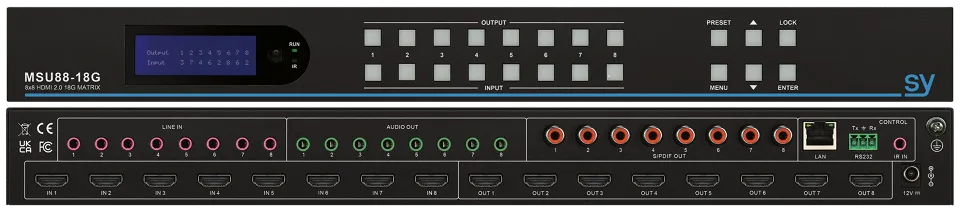

MSU88-18G – 8x8 Matrix & Scaler

Slimline HDMI Matrix Switcher with 8x inputs, 8x outputs at resolutions of up to 4K60 4:4:4 (18Gbps). Each output can perform a variety of functions independently, including down Scaling from 4K to 1080p and audio de-embedding of the video streams.  De-embeded audio is presented both as  S/PDIF (RCA Coax), or analogue stereo L/R (3.5mm TRS jacks).  Audio Embedding is also available, using the 8x L/R Analogue Audio Inputs.

This Matrix has four methods of control: Front Panel, RS232, LAN or IR, front panel locking prevents accidental operation.  19" rackmountable with only 1U height.

The MSU88-18G is suitable for a wide range of environments from corporate, retail, and control rooms to training centres and education spaces.

8x8 Matrix – Switch between 8x HDMI 2.0 inputs, to 8x HDMI 2.0 outputs. Capable of 4K60 4:4:4 18G.

Down Scaling – All outputs can be scaled independently. Down Scaling from 4K to 1080p.

EDID – Management of EDID ensures stable installation performance.  The EDID for each HDMI input can be from a wide choice of stored EDID or an EDID from one of the connected displays.

Test Pattern Generator – Various Test pattern colours to aid set-up & commissioning and signal cue facility. Each pattern can be set onto pairs of outputs.

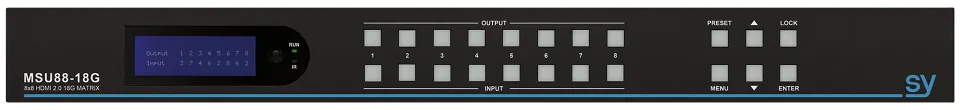

Front panel display – LCD display shows the current matrix routing and aids with visual confirmation of various settings.

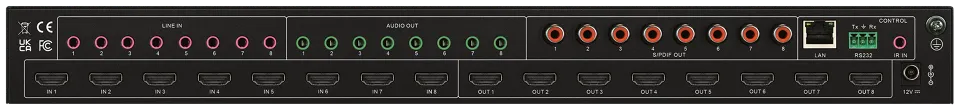

Audio Control – Any of the 8 L/R audio inputs can be embeded onto any of the video output streams. Each output video stream is de-embedded and presented as Digital S/PDIF (RCA) output and as Analogue L/R Stereo audio output (3 pin Phoenix).  There is also audio mute function available too.

HDCP Control – Support and management of HDCP ensures compatibility. Convert from HDCP 2.2 down to HDCP 1.4 or simply put the unit into cascade mode.

Control – All functions can be operated either from the Front Panel, IR, RS232 or LAN. A built in WEB GUI is accessible via LAN allowing control of Video, Audio, EDID and network parameters to be made. A remote Infra-Red handset is included to select Inputs and Outputs.

FEATURES

• 8x8 HDMI 2.0 Matrix
• Resolution up to 4K60 4:4:4 18G
• Auto Down Scaling 4K > 1080p per output
• Advanced Test Pattern Generator
• HDCP management
• Extensive EDID management
• 8x Analogue Stereo L/R de-embed audio outputs
• 8x Digital S/PDIF de-embed audio outputs
• 8x Audio embed facility (analougue stereo)
• Supports HDR10, HLG, Dolby Vision
• Control: Front panel, IR, RS232, LAN & Web GUI
• Front panel lock
• 19" 1U rack mountable
