SY, SY-MSU-44-18G - 4x4 HDMI 2.0 (18G) Matrix

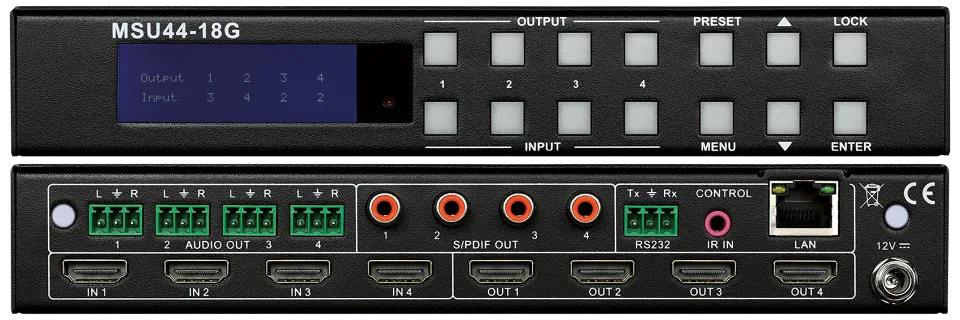

MSU44-18G – 4x4 Matrix & Scaler

Slimline HDMI Matrix Switcher with 4x inputs, 4x outputs at resolutions of up to 4K60 4:4:4 (18 Gbps).  Each output can perform a variety of functions independently, including down Scaling from 4K to 1080p and audio de-embedding, which is possible from any of the 4x HDMI inputs.  De-embeded audio is presented both as  S/PDIF (RCA Coax), or analogue stereo L/R (3.5mm TRS jacks).

This Matrix has four methods of control: Front Panel, RS232, LAN or IR, front panel locking prevents accidental operation.  The optional 19" 1U rack mount brackets are available for this compact half rack unit.

The MSU44-18G is suitable for a wide range of environments from corporate, retail, studios and control rooms to training centres and education spaces.

4x4 Matrix – Switch between 4x HDMI 2.0 inputs, to 4 x HDMI 2.0 outputs. Capable of 4K60 4:4:4 18G.

Down Scaling – Each output can be scaled independently. Down Scaling from 4K to 1080p.

EDID – Management of EDID ensures stable installation performance.  The EDID for each HDMI input can be chosen from a wide choice of stored EDID or an EDID from one of the connected displays.

Test Pattern Generator – Various Test pattern colours available to aid set-up, commissioning and signal cue facility. Selection made via RS232 commands.

HDCP Control – Support and management of HDCP ensures compatibility. Convert from HDCP 2.2 down to HDCP 1.4 or simply put the unit into cascade mode.

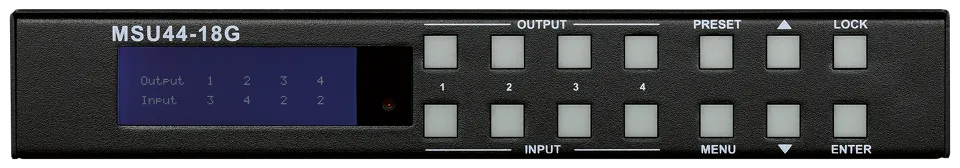

Front panel display – LCD display shows the current matrix routing and aids with visual confirmation of other settings.

Audio Control – There is also audio mute function available too. Audio can be de-embedded from any input and presented as Digital S/PDIF  (coax RCA) outputs, as well as analogue L/R Stereo audio oututputs (phoenix screw terminal connectors).

Control – All functions can be operated either from the Front Panel, IR, RS232 or LAN. A built in WEB GUI is accessible via LAN allowing full control of Video, Audio, EDID and network parameters. A remote Infra-Red handset is also included for easy matrixed Output selections.

FEATURES

• 4x4 HDMI 2.0 (18Gbps) Matrix
• Resolutions up to 4K60 4:4:4
• Auto Down Scaling 4K > 1080p per output
• Advanced Test Pattern Generator
• HDCP management
• Extensive EDID Management
• 4x Analogue Stereo L/R de-embed audio outputs
• 4 x Digital S/PDIF de-embed audio outputs
• Supports HDR10, HLG, Dolby Vision
• Control: Front panel, IR, RS232, LAN & Web GUI
• Front panel lock

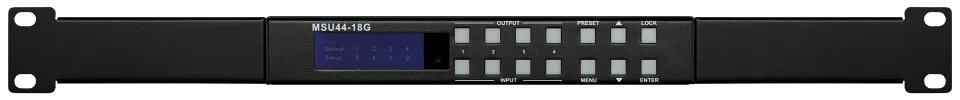

• 19" 1U rack mount brackets (optional)

Part Number: SY-MSU-44-18G

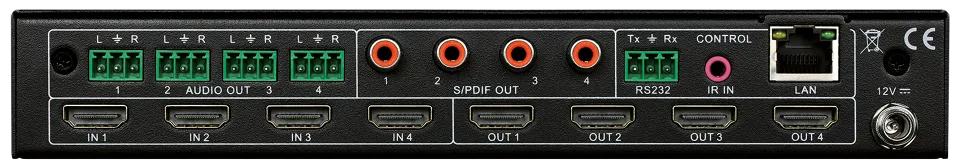

INPUTS

  4x HDMI

  4x L/R Analogue audio 3.5mm TRS Jacks

Outputs

  4x HDMI

  4x L/R Analogue audio 3.5mm TRS Jacks

  4x SPDIF Digital audio Coax Phono Jacks

HDMI Standard

  HDMI 1.4 and HDMI 2.0

HDMI RESOLUTIONS

  All HDMI resolutions up to 4K60 4:4:4 (18Gbps)

   Example: 4K60 4:4:4, 4K60 4:2:0, 4K30 4:4:4, 4K24, 4:4:4, 1080p60

HDR10, HLG and Dolby Vision

  Supported for 4K60 4:2:0, 4K30 4:4:4, 4K24 4:4:4 resolutions

HDCP COMPLIANCE

  1.4 and 2.2

AUDIO FORMATS

  LPCM (2.0 ch, 5.1 ch, 7.1 ch) , Dolby True HD, DTS-HD Master

  All audio sample rates up to 192kHz

DE-EMBED AUDIO OUTPUTS

  RCA Coax - Digital S/PDIF

  3 pin Phoenix - Stereo Analogue (L/R)

CONTROL

  Front panel

  RS232

  LAN

  Web GUI

  IR eye on front and rear 3.5mm input jack

Default IP Settings

  IP: 192.168.1.168

  DHCP: Off (Static IP)

Default RS232 baud rate:

  115200, 8 bits, no parity, one stop bit

  can be set to 57600, 19200 or 9600

Operating Temperature

  0 ~ 40°C (32 ~ 104°F)

Operating Humidity

  10 ~ 90% RH – non-condensing

Physical Dimensions

  (WxHxD) 216.2 x 44 x 128.5 mm (19” 1U Rack mountable)

Weight

  470g

WHAT’S IN THE BOX

  1x MSU44-18G

  5x 3 pin phoenix terminal connectors

  1x IR remote controller

  1x 12V DC power supply

  1x user manual

  1 x pair rack brackets (optional)
