SY, SY-MUHD-88 - 4K UHD 8x8 HDMI Matrix

MUHD-88 is an 8x8 HDMI 4K60 4:2:0 Scaler Matrix. This unit can connect any Input to any Output simultaneously.  Transmit your favourite HD sources (Blu-Ray, Satellite Receiver, Gaming Console, etc) the MUHD-88 can easily connect to both 4K and legacy HD projectors/displays without any compromise, supporting HDMI1.4b up to 4K video resolution and HDCP 1.4 and HDCP2.2.  The output signals are amplified and equalised for the best HDMI signal without loss of quality.

HD – Supports High-Definition resolutions 4K60 4:2:0, 4K30, 1080p, 1080i, 720p and standard video format.

HDMI – Compliant to HDMI version 1.4b with a max bandwidth of 10.2Gbps.

HDCP – This unit will accept HDCP versions 1.4 and 2.2.

VIDEO AND AUDIO MUTING – Outputs can be controlled to enable/disable the Video Stream and Mute Audio, both independently and globally.

EDID – Management of EDID ensures stable installation performance, with the ability to read the EDID from the connected displays and then to store it to each input independently.  Can be managed from the front panel buttons or via RS232 commands. With 12 built-in pre-defined EDID settings, and 3 user programmable EDID memories.  The Cascade mode function can be enabled and will disable the reading of all EDID from any Display device, and will therefore always transmit a video signal.

Audio De-embedding - Audio Outputs are provided with L+R analogue de-embedded audio per output on all outputs via 3 pin screw terminals.

Control - All switching functions are carried out via a choice of Front Panel Buttons, IR, RS232 or LAN. A remote Infra-Red handset is included to select Inputs and Outputs. An IR input extension socket is present on the rear panel for use within closed AV credenzas.

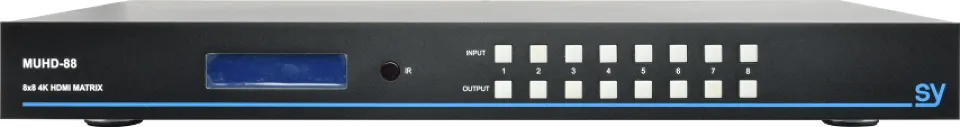

Front panel display - An LCD display shows the current matrix routing and aids with visual confirmation of other settings.

This unit is 1U and can be fitted into any rack with ease.

The MUHD-88 offers a solution for digital entertainment centres, HDTV retail, show sites, data centre control, information distribution, conference room presentation, school and corporate training environments

FEATURES

• 8x8 HDMI (10.2Gbps) Matrix
• HDMI 1.4b, 4K60 4:2:0
• HDCP 1.4, 2.2 compliant
• 8x L/R de-embed audio outputs
• Extensive EDID Management
• Control: Front panel, IR, RS232, LAN

PART NUMBER: SY-MUHD-88

Video Format Supported:

  Alll PC and Video formats supported, including:

  4K60, 4K30, 1080P, 1080i, 720P, 576P, 576i, 480P,  480i

INPUTS:

  8x HDMI

OUTPUTS:

  8x HDMI 1.4b

  Maximum Transmission Distance 15m

  Analogue audio outputs (Stereo) x8

Audio Format Supported on HDMI ports:

  L-PCM, DTS-HD, Dolby TrueHD

CONTROL PORTS:

  IR

  Ethernet

  RS232

  RS232 Settings Baud rate: 57600, Data bits: 8,  Parity: None,  Stop bits: 1,  Handshaking: None.

POWER:

  Supply 12V DC

  Power Consumption 15W (Max.)

ENVIRONMENTAL:

  Operating Temperature Range 0 to +40°C (32 to +104°F)

  Operating Humidity Range 10 to 90 %RH (non-condensing)

DIMENSIONS:

  W440 x D256 x H42 mm

  W17.3” x D10” x H1.65”

  19” Rack height: 1U

WEIGHT:

  (Main Unit) 2.4kg

WHAT’S IN THE BOX

  1x Main unit

  1x IR remote control

  1x IR receiver (eye) with self-adhesive pad

  1x Pair 19” rack mounting brackets

  6x M3 x 8 screws for the mounting brackets

  9x Three-Way pluggable screw terminal connectors

  1x UK or EU to IEC 60320 Type C7 (figure-of-eight) cable

  1x 12V DC PSU

  1x User manual
