SY, SY-SMS88-18G - Seamless 8x8 HDMI 2.0 (18 Gbps) Matrix With 4K 4:4:4 @ 60hz input/ output capability.

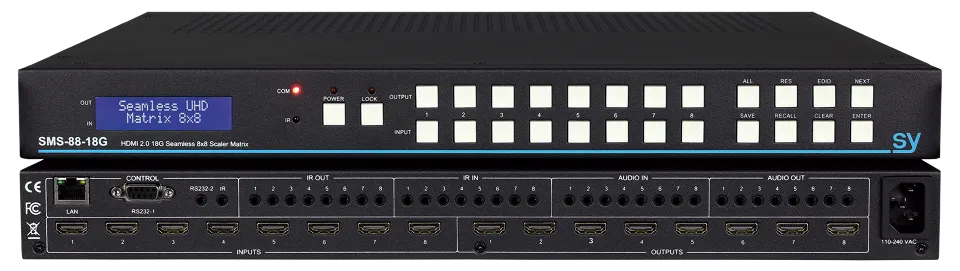

SMS88-18G – Seamless Matrix Switch with Video Wall Mode

Seamless Switching Matrix with the ability to accept 8x HDMI 18G inputs, with 8x HDMI outputs, and perform wide range Scaling up to 4K 60Hz 4:4:4. Can be used as a 8x8 Seamless Matrix, or a Video Wall Processor that can be configured up to a 2 x 2 video wall layout. Programmable through RS232, front panel an the PC App which offers the most complete control over all settings, including customisable Input and Output name labels. Audio embed (L/R), and de-embed options are available as optical Toslink or L+R analogue output from any of the 8 HDMI inputs. Available with easy to install 19” 1U rack-mount unit, suitable for a wide variety of applications within the residential, educational, commercial and hospitality sectors.

Seamless 8x8 HDMI Matrix – Seamlessly switch between 8x HDMI 2.0 inputs, to 8x HDMI 2.0 outputs, capable of 4K60 4:4:4 60Hz 18G with programmable, and pre-saved modes. Switching is performed seamlessly with no black between the video transition.  The current matrix routing configuration can be stored into 8 Pre-Sets.  These may be recalled by using the front panel buttons, RS232 or PC App.

Video Wall Processor – Video Wall processing settings can be used to create multiple Video Walls using some or all of the 8 HDMI outputs.  The functions include ‘Stitch/Un-Stitch’ to place a second video source onto a display within the video Wall, and ‘Bezel Compensation’ to match the edge of the display screens being used.  Scenes can be saved and recalled via pre-set memory locations.

Audio Control – Audio can be embedded via Analogue L/R Audio Inputs. Audio can be de-embedded via Toslink, Analogue L/R RCA jacks, or Balanced Analogue L/R audio. Any of the available inputs' audio can be independently selected at any time. Full audio signal routing can be performed by using the PC App.

Wide Range Scaling – Full Up/Down 4K 18G Scaling with complete control over both resolution and refresh rate, ensuring an optimal image based on the display's capabilities.

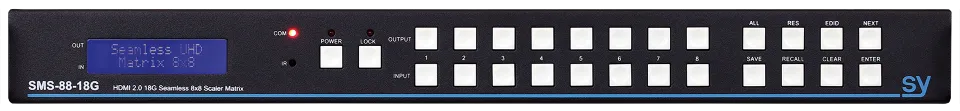

Control Options– Control can be carried out via Front panel buttons, PC App, RS232, TCP/IP or LAN controlled Web GUI.  RS232 commands can be sent directly via the LAN interface. The Web GUI offers basic control of parameters.  Front Panel offers 'Panel lock' to prevent accidental switching of front panel buttons.

Video Tuning – Fine Tuning of the picture is afforded via the ‘PQ’ function which is accessible through the Web GUI.

EDID Management – This unit has several EDID options and also the ability to utilise any of the onboard pre-set EDIDs settings, which can be fed to any input selectively. Read EDID from any output and import EDIDs .bin files

HDCP Control – Support and management of HDCP ensures compatibility. Convert from HDCP 2.2 down to HDCP 1.4 or simply put the unit into Cascade Mode.

IR Matrix - Bi-directional control of connected sources and displays may be carried out by utilising the built-in Infra-Red Matrix system.  The discreet IR control matrix switching offers ‘IR follows Video input’.

Out of the box, it will operate as a fully-fledged 8x8 Matrix switch.  All these amazing features are packed in an easy to install 19” 1U rack-mount unit, making it suitable for a wide variety of applications within the residential, education, commercial and hospitality sectors.

Features

• HDMI 2.0 18G Matrix & Video Wall Processor
• Seamless Switching
• Wide range Scaling up to 4K60 4:4:4
• Video-Wall Processing with Bezel Compensation
• Supports 180 degree image rotation per display in Video Wall mode
• Test Pattern Generator
• Audio Embed
• De-embed Audio
• HDCP Management (up to 2.2)
• Extensive EDID control
• Infra-Red Matrix
• Controllable from Front Panel Buttons, IR, RS232, Web GUI or TCP/IP

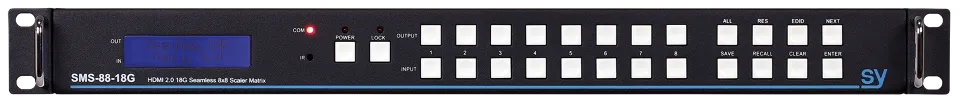

• 19in 1U rack mount

PART NUMBER: SY-SMS-88-18G

VIDEO RESOLUTIONS/FORMATS

Input resolution examples:

  All HDMI resolutions to 4096x2160p 60Hz 4:4:4

  4096x2160p 24/25/30/50/60Hz      3840x2160p 24/25/30/50/60Hz      2560x1440 50/60Hz

  1920x1200 60/65/75Hz                 1920x1080p 24/25/30/50/60Hz      1920x1080i 50/60Hz

  1680x1050 60/75Hz                      1600x1200 60/65/70/75Hz            1600x1024 60/75Hz

  1600x900 60/75Hz                        1440x900 60/75Hz                       1400x1050 60/75Hz

  1366x768 60Hz                             1360x768 60Hz                            1280x1024 60/72/75/85Hz

  1280 x 960 60/75/85Hz                 1280x800 60/75Hz                       1280x768p 50/60/75Hz

  1280x720p 25/30/50/60/75Hz       1024x768p 60/70/75/85Hz             800x600p 60/72/75/85Hz

  720x576p 60Hz                            640x480p 60/65/85Hz

Output Scaler resolution examples:

  3840x2160p 25/30/50/60Hz         1920x1200p 60Hz                        1920x1080p 50/60Hz

  1600x1200 60Hz                         1400x1050 60Hz                          1366x768 60Hz

  1360x768 60Hz                           1280x1024 60Hz                          1280x768 60Hz

  1280x720p 50/60Hz                    1024 x 768p 60Hz

  Auto mode

BANDWIDTH

  18Gbps

HDCP

  HDCP 1.4, HDCP 2.2

HDMI

  HDMI 2.0

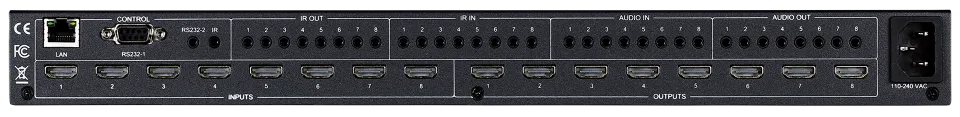

INPUTS

Video in

  8x HDMI 2.0

Audio in

  8x 3.5mm TRS Jack connectors for un-balanced line audio

  Frequency response: 20Hz – 20kHz, 1.0Vrms max.

Audio Embedding

  Any input audio can be routed to any Video Input

IR in

  8x TRS 3.5mm Jack, 30Hz – 60kHz carrier

OUTPUTS

Video out

  8x HDMI 2.0

Audio out

  8x TRS 3.5mm Jack for L+R unbalanced audio

  Frequency response: 20Hz – 20kHz, 1.0Vrms max.

Audio Format Supported:  2.0, 5.1, 7.1 channel LPCM, Dolby, AC3, DTS

Audio De-embedding

  Any input audio can be routed to any Audio Output

IR out

  8x 3.5mm Jack, 30Hz – 60kHz carrier

CONTROL

  IR via 3.5mm TRS Jack

  RS232 port 1 via 9 Pin socket

  RS232 port 2 via 3.5mm TRS Jack

  LAN via RJ45

Control Matrix

  8x IR Inputs via 3.5mm TRS Jacks

  8x IR Outputs via 3.5mm TRS Jacks

  ‘IR Follows Video’ Input functionality

POWER

Power Supply:

  110~240V AC

Power Consumption:

  100W max.
