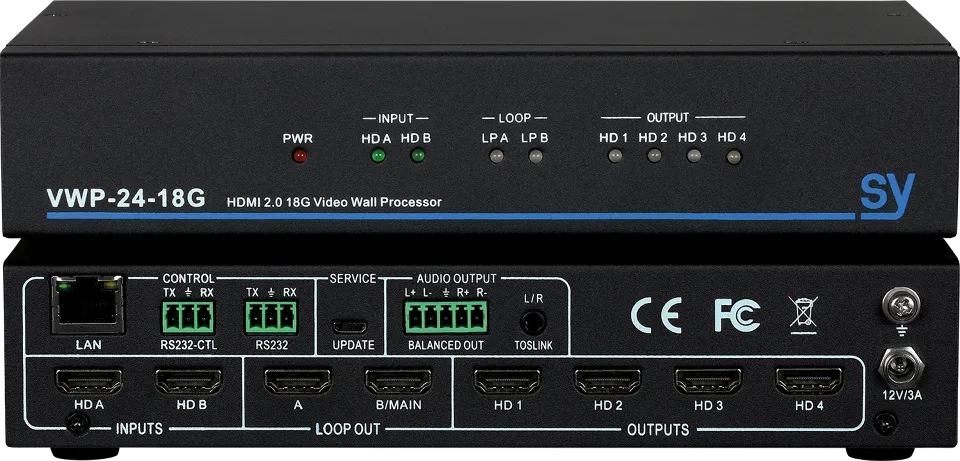

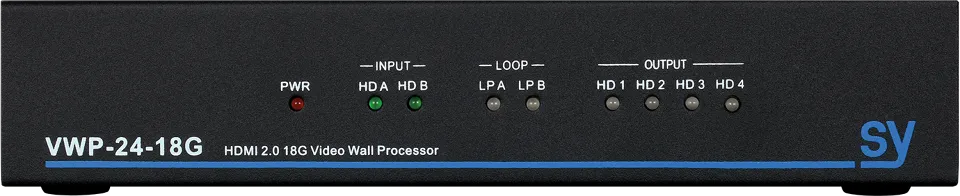

SY, SY-VWP-24-18G - Dynamic Single or Multiple 4K 18G Video-Wall Processor

VWP-24-18G  Dual input Video Wall Processor, with 4x HDMI outputs plus 2 local loop outputs.

Capable of creating up to a 2 x 2 Video Wall as a stand alone unit or cascade with other VWPs to create up to 8 x 8. The two HDMI Inputs can accept all resolutions up to 4K60 4:4:4. Each output has up/down wide range Scaling capabilities up to 4K60 4:4:4 (18G), optimising content on any display. Packed with features to aid system integration, suitable for a variety of applications within live events, commercial, education and the hospitality sector.  ­­

Video-Wall – Simple configuration to create up to a 2 x 2 Video Wall with a single unit, allowing a variety of configurations across 4 screens.

Expandable – Cascade multiple VWPs together to create large Video Wall configurations up to an 8 x 8 grid.

Screen Stitching – Allows adding or removing of selected displays from Video Wall or single display mode.

Bezel Compensation – Optimises and aligns content across multiple displays, reducing visual disruptions caused by physical bezels for a smooth and uninterrupted viewing experience.

Image Rotate – Rotate 180° to accommodate for image orientation when flipping displays.

Scenes – The ability to recall up to 10 memory pre-sets via the ‘Load Scene’/‘Save Scene’ commands, allowing you to switch between saved scene configurations.

18G Scaler – Up/down scaling up to 4K60 4:4:4 (18G). The built in Scaler enables all outputs to be scaled to most suitably match the target displays’ optimum resolution. Wide choice of 16 different Scaling options.

Audio Formats – Supported major formats including: 2.0 channel, 5.1 channel LPCM, Dolby, AC3, DTS.

De-embedded audio – Analogue balanced L+R and L/R unbalanced, Optical Mini-Toslink S/PDIF.

Test Pattern Generator – A built in test patten can be used for system commissioning, from image testing to cable link tests.

EDID Management – 16 built in pre-configured EDID memory positions to suite a variety of needs.

Control – The device can be controlled via RS232 or LAN. When cascading, each device can be assigned a unique ID for direct control.

PC APP – A dedicated PC Tool program is available for quick and easy configuration, this includes fine tune PQ per output/CEC control.

Features

• Inputs: 2x HDMI 2.0, Outputs: 4x HDMI 2.0
• Loop Outputs: 2x HDMI 2.0
• Supports all resolutions up 4K60 4:4:4
• 4K wide range Up/Down Scaling
• Dynamic single or multiple Video Wall capabilities
• Cascade or daisy-chain
• CEC control
• Memory pre-sets
• Bezel Compensation
• Screen Stitching
• Audio de-embedding
• Extensive EDID Management
• Test Pattern generator
• HDCP 2.2
• RS232, TCP/IP, PC App control

PART NUMBER: SY-VWP-24-18G

HDMI Version

  HDMI 2.0,18Gbps

HDCP Compliance

  HDCP 1.4 and HDCP 2.2

VIDEO RESOLUTIONS/FORMATS

Input Video Formats Supported

Output Scaled Resolutions

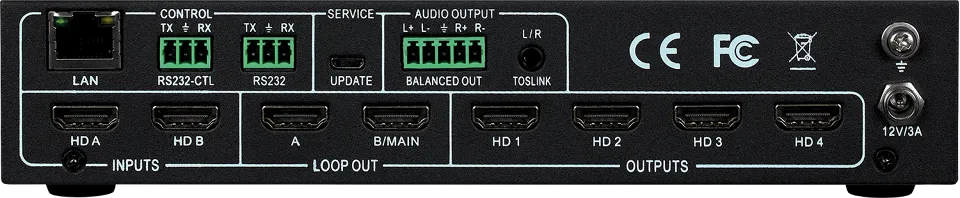

INPUTS

Video

  2x HDMI 2.0

OUTPUTS

Video

  4x HDMI 2.0 Video Wall outputs plus 2x Input Loop Outputs

  (Total of 6 outputs)

Audio

  Balanced Analogue audio via 5 pin screw terminals

  Unbalanced L+R analogue audio (via shared 3.5mm TRS Jack socket)

  Toslink Digital (via shared 3.5mm TRS Jack socket)

Audio Format Supported

  2.0 channel ,5.1 channel LPCM, Dolby, AC3, DTS

CONTROL

  2x RS232 ports via 3 pin screw terminals

  LAN RJ45 socket for TCP/IP

RS232-CTL

  (Tx, Rx) 57600 baud, 8 data bits, 1 stop bit, no parity

RS232

  (Pass-Through – Tx, Rx) Any baud rate to maximum of 115200.

POWER

  12V DC 3A

POWER CONSUMPTION

  40W Max

ENVIRONMENTAL / PHYSICAL

Operating Temperature Range

  0 to +40°C (+32 to +104 °F)

Operating Humidity Range

  10 to 90 % RH (non-condensing)

DIMENSIONS (LxWxH)

  218 x 146 x 43 mm

WEIGHT (net)

  2kg (aprx)

WHAT’S IN THE BOX

  1x VWP24-18G

  1x 12V/3A adapter

  1x 5 pin female captive screw connector

  2x 3 pin female captive screw connector

  1x User Manual
