SY, SY-MSU-121 - Presentation Scaling Switcher

The SY-MSU-121 is a 12 input multi-format Presentation Scaler Switcher with two scalable HDMI outputs

Inputs 10 HDMI inputs and 2 VGA + audio inputs for support of legacy devices.

Switcher Any input can be selected to output to both of the HDMI mirrored outputs.

Accepts 4k inputs Compliant to HDMI 1.4, HDMI input resolutions up to 4K30 4:4:4 or 4K60 4:2:0 and VGA inputs at up to 1900x1200 and VGA input resolutions up to 1900x1200 60Hz

Up/Down Scaler Each input can be scaled to output at a max resolution of up to 1080P ensuring the connected device receives an optimal resolution regardless of the input.

Audio De-embedding The Audio can be de-embedded onto balanced or 3.5mm TRS output jacks.  This can then be sent to an amplifier to provide audio to the room's speakers.

Picture Management The MSU-121 also has controls for adjusting the picture (colour, brightness, contrast), Noise reduction,

The VGA inputs have several additional adjustments from size, position and phase.

HDCP Management Compliant with version 1.4.  Cascade mode offers the option to defeat HDCP.

EDID Management  With three EDID modes to choose from for maximum flexibility and operability with all kinds of display device.

 AUTO mode - Copy the EDID of the display device to the HDMI/VGA inputs.

 MANUAL mode - Select the user defined EDID, this may need to programming first using the RS232 control software.

 PREDEFINED mode - The inputs will use the default EDID settings

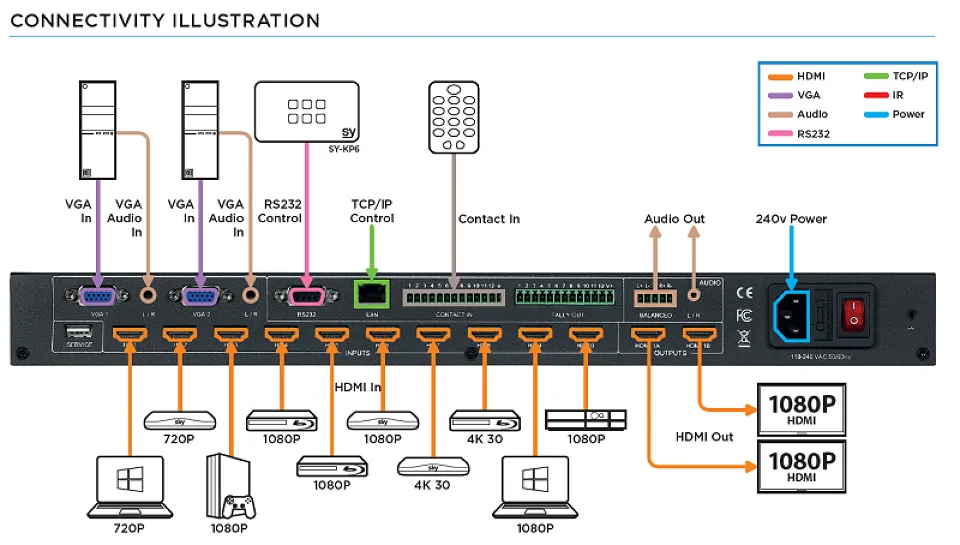

Control All of this can be controlled from either the front panel, RS232, LAN, IR, contact closure or by using the PC App.

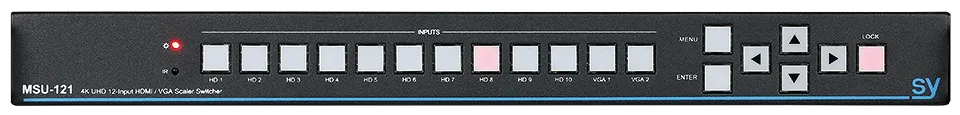

Front panel buttons control the ‘On Screen Display’ Menu which is shown on any connected display device.

This unit is a cost effective 4K Presentation Switcher and can accommodate a variety of installations.

A smart choice for education and corporate environments.

Features

• Inputs: 10 HDMI up to 4K UHD, 2 VGA + Audio up to 1920x1200
• Outputs: Two mirrored HDMI outputs, Scalable up to 1080P
• De-embedded audio
• HDMI/HDCP 1.4 Compliant
• EDID Management
• OSD menu for easy and flexible configuration
• Control via TC/IP RS232, IR, Contact closure, PC App

PART NUMBER:  SY-MSU-121

VIDEO RESOLUTIONS/FORMATS

  Input resolutions examples:

  All HDMI resolutions to 3840x2160p 30Hz 4:4:4 or 3840x2160p 60Hz 4:2:0

  4096x2160p 24/25/30/60Hz (HDMI Only)   3840x2160p 24/25/30/60Hz (HDMI Only) and;

  1080p 24/25/30/50/60Hz   1080i 50/60Hz   1920x1200 60/65/75Hz   1680x1050 60/75Hz   1600x1200 60/65/70/75Hz     1600x1024 60/75Hz   1600x900 60/75Hz   1440x900 60/75Hz   1400x1050 60/75Hz   1366x768  60Hz   1360x768 60Hz     1280x1024 60/72/75/85Hz   1280x960 60/75/85Hz   1280x800 60/75Hz   1280x768p 50/60/75Hz     1280x720p 25/30/50/60/75Hz   1024x768p 60/70/75/85Hz   800x600p 60/72/75/85Hz   720x576p 60Hz   640x480p 60/65/85Hz

Output Scaler resolutions:

  1920x1080p 60Hz   1680x1050 60Hz   1600x1200 60Hz   1400x1050 60Hz   1400x900 60Hz

  1360x768 60Hz   1280x1024 60Hz   1280x720p 60Hz   1024x768p 60Hz

Bandwidth

  10.2Gbps

HDCP:

  1.4  with HDCP Management

HDMI:

  1.4

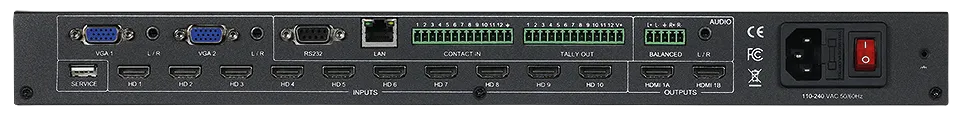

INPUTS

  Video in: 10x HDMI, 2x VGA

  Audio in: L+R 3.5mm TRS Jack. (for VGA inputs only) 20Hz – 20kHz, 1.5Vrms max.

OUTPUTS

  Video out: 2x Mirrored HDMI 1.4

  Audio out: Unbalanced L+R 3.5mm TRS Jack, Balanced L+R 5-way pluggable terminal connector 20Hz – 20kHz, 1.5Vrms max.

CONTROL

Control Ports

  IR

  LAN

  RS232

  (RS232 port Settings:  Baud rate 57600, 8 bits, no parity, 1 stop bit)

  Contact Closure inputs

POWER

Power supply

  110~240V AC

Power consumption

  25W max. (17W Nominal).

PHYSICAL AND ENVIRONMENTAL

Weight

  3Kg (net)

Dimensions

  (WHD): 430 x 44 x 220 mm,

  (Without rack mounted ears and other connectors)

  (19in 1U rack mounting)

Case Material

  Steel chassis

WHAT’S IN THE BOX

  1x SY-MSU-121 unit

  2x Rack mounting brackets (already fitted)

  1x 5 way pluggable terminal connector

  2x 13 way pluggable terminal connector

  1x SY-MSU-121 User Manual

  1x PSU (IEC C13)
