SY, SY-MFS51-18G - 5x1 Fast Switching 4K18G full scaling presentation switcher.

MFS51-18G is a powerful & flexible scaling 4K presentation switcher accepting Input resolutions up to 4K60 4:4:4 (HDMI 2.0 18G) and output at any resolutions up to 4K30 4:4:4.

Fast Switching Inputs - It offers fast switching between the 3 HDMI inputs,1 DisplayPort input,1 VGA input.

Auto / Manual Switching – This unit has three Auto Switching modes that can be set using either RS232 commands or from the Web GUI interface.

The three modes are as follows: Last Connected Mode, First Connect Mode, Priority Mode.

Mirrored Outputs – The HDMI and HDBaseT outputs both show the same source.

Scaling – A built in Scaler lets you scale up or down the video signals and will output to both the  HDMI and HDBaseT outputs at 4K30 4:4:4.  (The HDBaseT outputs will transmit 4K30 4:4:4 to 40m and 1080p to 70m – using a Slim70 Edge RX).

Output Aspect Ratio - Set the output to a choice of three screen ratios: 4:3, 16:9 or 16:10.

EDID Management – Select between pre-defined EDIDs or read from either output.

HDCP Mode control – Select between HDCP 1.4 or bypass mode.

Embed and De-embed Audio - This 18G HDMI 2.0 5x1 Presentation Switcher unit offers a stereo de-embedded audio output, and embedding of any external audio source onto any selected input.

Microphone Input - The dedicated Microphone Input channel also has switchable 48v phantom power, or it could be used as another Line level input by the setting the 3 position Switch.

Auto Ducking - Something else that is not often seen in other High End Presentation Switchers, but is present here on this unit, is a user selectable Auto Ducking function.  In other words it contains a built-in Side Chain Compressor effect.  What does this do?  With auto Ducking enabled, when someone speaks into the Microphone, then it will lower (or Duck) the Level of the Programme Audio from your other inputs.

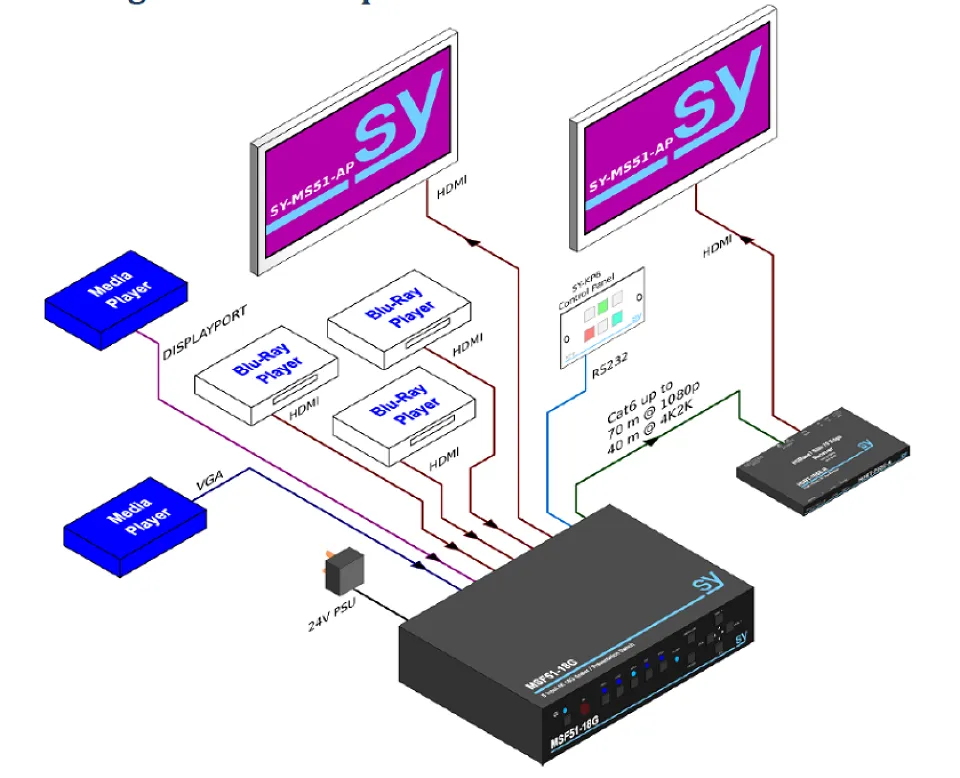

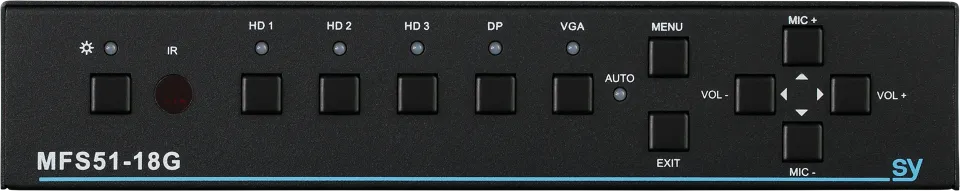

Audio System Control - The MFS51-18G has a versatile and fully controllable audio routing and MIC mixing system with ‘Fade In/Out’ options for the background audio inputs. A software Audio / Microphone Mixer is built-in. Physical buttons for Audio and Mic volume are situated on the front panel.

Control options - Controllable from front panel buttons, RS232, IR, Web GUI or via an external push button control.

OSD Menu – A Built-In On Screen Display Menu aids easy set-up.

Test Pattern Generator - The built-in menu also provides access to a single colour test pattern mode for White, Red, Green, Blue and Black. The test pattern can be used to confirm that a video signal can be seen on the HDMI and HDBaseT outputs.

It is suitable for a wide number of applications including classrooms, lecture halls and conference rooms.

• 3x HDMI, 1x DisplayPort, 1x VGA inputs
• Supports up to HDMI 2.0b 18G inputs
• Compliant up to HDCP 2.2
• Input HDMI & DisplayPort resolutions up to 4K60 4:4:4
• Fast switching HDMI output
• Input VGA resolution up to 1920x1200 @60Hz
• VGA input supports RBBHV, YPbPr and CVBS
• Full up/down scaler to 4K30
• HDBaseT output transmits up to 70m @ 1080p or 40m @ 4K30 4:4:4
• Mirrored HDMI/HDBaseT
• Automatic and Manual switching modes
• Easy EDID Management
• Extensive audio management
• Controllable from front panel, contact closure, RS232, IR, Web GUI or external push button panel

PART NUMBER: SY-MFS51-18G

VIDEO RESOLUTIONS/FORMATS

HDMI & Display-Port Inputs

  All VESA resolutions to 3840x2160p @60Hz 4:4:4.  All PC resolutions to 1920x1200 @60Hz

  Example input resolutions:

  4096x2060p 24/25/30/50/60       3840x2160p 24/25/30/50/60Hz      2560x1440 50/60Hz

  2048x1152 50/60Hz                    1920x1080p 24/25/30/50/60Hz     1920x1080i 50/60Hz

  1280x720p 50/60Hz                    1920x1200 60/75Hz                     1360x768 60/75Hz

  1680x1050 60/75Hz                    1600x1200 60/75Hz                     1280x1024 60/75Hz

VGA Input

  All PC resolutions to 1920x1200 @60Hz

HDMI/HDBT Output (Full Scaler range)

  4K2K 25/30 (4:4:4)    1080p 50/60       720p 50/60

  1920x1200 60            1680x1050 60    1400x1050 60

  1360x768 60              1280x800 60      1024x768 60

HDCP

  HDCP Input

  Compatible with all versions up to 2.2

  HDCP Output

  1.4

  2.2

  Cascade Mode

INPUTS

  Video

  3x HDMI 2.0b

  1x VGA

  1x DisplayPort 1.2a

AUDIO

  Microphone Input

  1x Microphone input via Phoenix connector

  inc Phantom Power

  Mic Ducking

  Line Inputs

  5x Analogue Stereo L+R via Phoenix connectors

  20Hz – 20kHz, 1.5Vrms max.

  Embedded Audio Format

  LPCM 2 channel

OUTPUTS

  Video

  2x Mirrored Outputs

  1x HDMI 2.0 Fast switching HDMI output

  1x HDBaseT output - Transmits up to 70m @ 1080p or 40m @ 4K/30 4:4:4

  HDMI Output

  HDMI 1.4  10.2 Gbps 4K 30Hz 4:4:4

  HDBaseT Output

  10.2 Gbps Bandwidth 4K 30Hz 4:4:4

  Audio Output

  1x Analogue pre out L+R

SCALER

  Full up/down scaler to 4K30

TEST TOOLS

  Test Signal Generator with:

  White, Red, Green, Blue and Black Colours

CONTROL

  Front panel Buttons

  RS232

  IR

  Web GUI

  Contact Closure

Control Connectors

  1x Built-in IR sensor

  3-pin pluggable terminal block for RS232

  1x HDBaseT output with PoC

POWER

  Power Supply

  24V, 1.25A

  Power Consumption

  9W (unit only)

PHYSICAL AND ENVIRONMENTAL

  Operating Temperature

  -10 to +40°C (+14 to +104°F)

  Operating Humidity

  10 to 90 % RH (non-condensing)

  Weight

  1.25kg

  Dimensions (WHD)

  220 x 150 x 44mm

  Case Material

  Aluminium chassis

WHAT’S IN THE BOX

  1x MFS51-18G

  1x 6 way Pluggable terminal block (Phoenix)

  8x 3-way Phoenix connectors

  1x RS232 cable

  1x RGB to VGA cable

  1x IR receiver

  2x IR emitter

  1x set mounting brackets

  1x IR Handset

  1x 24v 1.25A external power supply

  1x User’s manual
