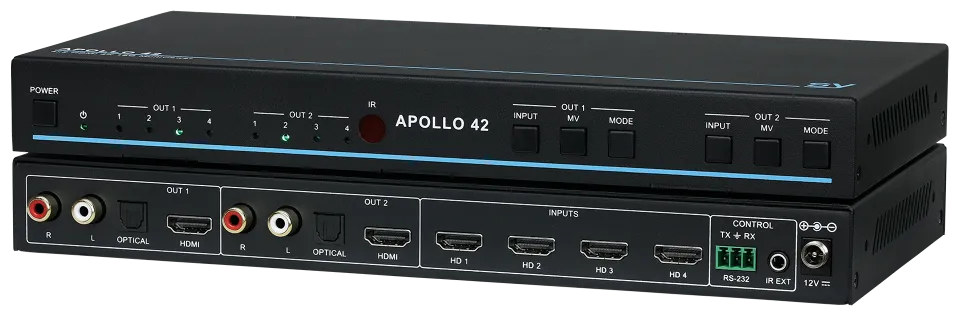

SY, SY-APOLLO-42 - 4x2 HDMI Seamless switching Multi-Viewer Matrix.

Apollo 42 – 4x2 Seamless Matrix & Multi-Viewer with 4x HDMI 18G inputs and 2x HDMI 2.0 outputs. Each output can perform a variety of functions independently, with wide range Scaling up to 4K 60Hz 4:4:4 and is capable of displaying in Single, Dual, Triple, Quad Multi-View or various PIP modes. Dynamic Audio selection allows for choice between any of the HDMI inputs' audio, regardless of the chosen video signal. De-embeded audio via optical Toslink or L+R analogue output is available independently on both channels. Apollo 42 provides a convenient solution for easily managing multiple sources across 2 displays and is suitable for collaboration, educational environments, seamless presentation, control centres and gaming.

Seamless 4x2 Matrix – Seamlessly switch between 4x HDMI 2.0 inputs, to 2 x HDMI 2.0 outputs. Capable of 4K60Hz 4:4:4 18G.

2 Independent Outputs – Each of the 2 HDMI outputs may be independently configured including Multi-view, PiP, Scaling and Auto-Switching.

Auto or Manual Switching – When set to Single mode, the auto-switch feature will automatically select the newly connected source. When currently selected source is lost, the next available active input will be automatically selected. Manual switching can be carried out from the front panel, IR or RS232.

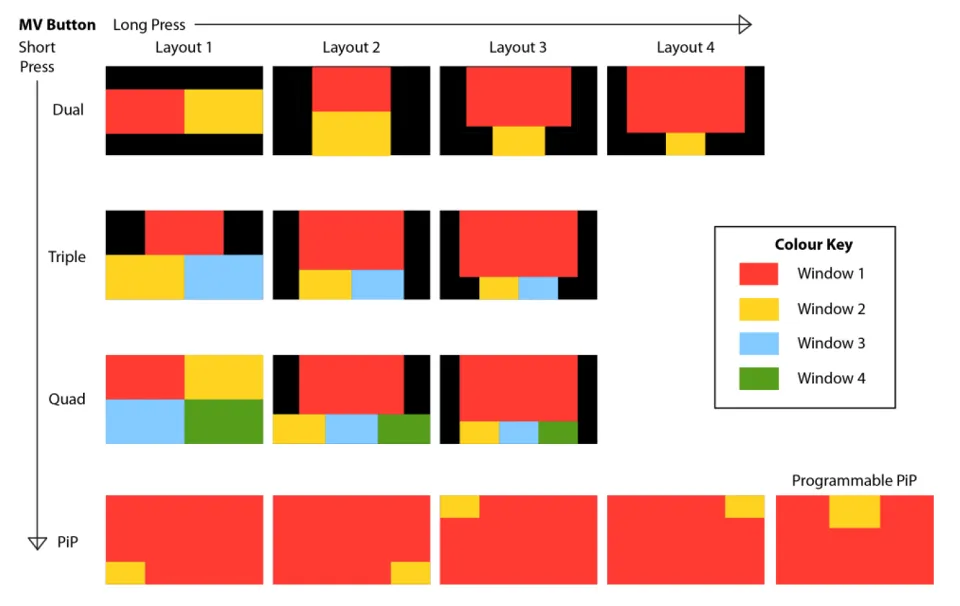

Multi-View mode – Any of the 4 available inputs can be independently selected per display to be viewed in either Single, Dual, Triple or Quad view, with various options of window size.

PiP – Each output can be independently configured to its own custom Picture In Picture mode, with various options of window sizing and position.

Wide Range Scaling – Each output has its own full Up/Down Scaler with complete control over both resolution and refresh rate, guaranteeing optimal image quality based on the displays' capabilities.

Audio Control –  Any available audio inputs can be paired with the video at any time, with mute function available. Audio can also be de-embedded via Toslink or Analogue L/R RCA jacks.

VKA – The Video Keep Alive function can maintain a video output when there is no signal. When there is no active input signal, the display can be configured to show a blue or black image, ensuring that the screens remain active until a new signal is detected.

IT Content Setting – The IT Content (ITC) setting tells the display to use its own video quality processing algorithms, instead of the Intel graphics driver when movies are played in full-screen mode to ensure the best video quality.

HDCP Control – Support and management of HDCP ensures compatibility. Convert from HDCP 2.2 down to HDCP 1.4 or simply put the unit into cascade mode.

 Features

• 4:2 HDMI Matrix
• Multi-Viewer
• Seamless Switching
• Wide Range Scaler upto 4K60 4:4:4
• Single, Dual, Triple, Quad display modes
• PiP (Picture in Picture)
• Extensive EDID control
• HDCP management
• VKA (Video Keep Alive)
• ITC (IT Content)
• De-embed audio

PART NUMBER: SY-Apollo 42

HDMI VERSION

  Inputs: HDMI 2.0 (18Gbps) – HDR, HDR10, HDR10+, HLG and Dolby Vision Formats supported

  Outputs: HDMI 2.0 (18Gbps) – HDR, HDR10, HDR10+, HLG and Dolby Vision Formats supported

HDCP COMPLIANCE

  Input HDCP: 1.4, 2.2

  Output HDCP: Fully controlled – Pass through, 1.4, 2.2, Cascade mode

RESOLUTIONS / FORMATS

Input resolutions:

  All HDMI and PC resolutions up to 4K2K 60Hz 4:4:4

Colour Space:

  Pass through of RGB, YCbCr 4:4:4, 4:2:2, 4:2:0

Colour Depth:

  8, 10, 12 bits

DISPLAY MODES

  Single, Dual, Triple, Quad, PiP, with Variable sizes for each.

SCALER

Up and Down-Scaling (Resolution and Refresh Rate)

  Various resolutions and refresh rates up to 4K@60Hz 4:4:4

AUDIO

Audio Formats Supported:

  2.0, 2.1, 5.1, 7.1 channel LPCM, Dolby, AC3, DTS

De-embedded Audio out:

  Optical Toslink and line level analogue audio RCA L/R

CONTROL

 1x RS232 (3-way pluggable terminal block) (57600 bps, 8 bits, no parity, 1 stop bit)

 1x IR Ext (3.5 stereo jack)

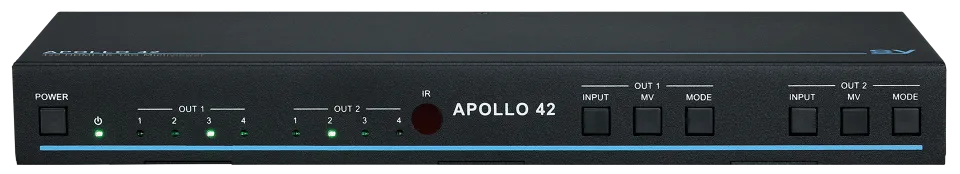

 Front Panel buttons

 Front Panel IR

FACTORY DEFAULT SETTINGS

  Input EDID: 4K60 4:4:4 2Ch

  Output View Mode: Single Display

  Output HDCP: v1.4

  Multiview Aspect Ratio: 16:9

  Dual View Mode: Side by Side

  Triple View Mode: 1 over 2

  PiP Position: Bottom Left

  RS232: 57600 bps, 8 bits, no parity, 1 stop bit

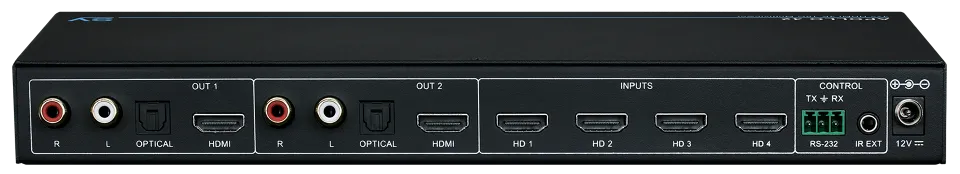

CONNECTORS

SY-Apollo 42

  4x HDMI Inputs

  2x HDMI Outputs

  2x Optical Toslink Digital audio out

  2x RCA L and R Analogue audio outs

  1x 3.5mm TRS IR Input

  1x Phoenix Screw Terminals for RS232 control

  1x IR Eye on front panel

  1x 12V DC Power input (2.1mm barrel jack)

POWER

Power Consumption:

  14W max

Power Supply:

  12V 2.5A DC – (2.1mm barrel jack)

ENVIRONMENTAL

Operating Temperature Range:

  0 ~ +40°C (32 ~ 104F)

Operating Humidity Range:

  10 ~ 90% RH (Non-condensing)

PHYSICAL

Dimensions (WDH) Each unit:

  270 x 130 x 30mm

Weight (net) Each unit:

  780g

WHAT’S IN THE BOX

  1x SY-Apollo 42

  1x 12V 1A Power Supply

  1x User manual
