SY, SY-APOLLO-41 - 4x1 HDMI Seamless switching Multi-viewer.

Apollo 41 – 4x1 Seamless Switcher & Multi-viewer

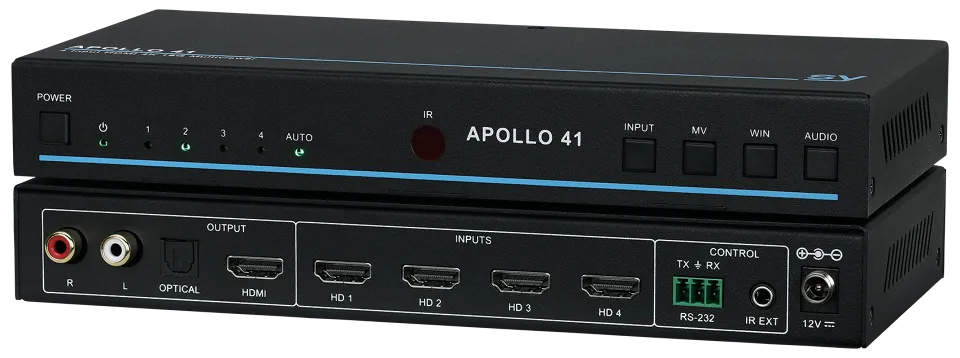

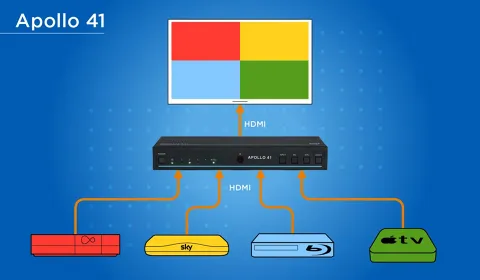

Seamless Multi-viewer with the ability to accept up to 4x HDMI 18G inputs, 1x HDMI output and perform wide range Scaling up to 4K 60Hz 4:4:4. Capable of displaying in Single, Dual, Triple, Quad Multi-View or various PIP modes via the HDMI output. An audio de-embed option is available as optical Toslink or L+R analogue output from any of the HDMI inputs. Apollo 41 is an ideal presentation solution for management of multiple video sources onto one display for offices, huddle spaces and educational and residential settings.

Seamless 4x1 Switcher – Seamlessly switch between 4x HDMI 2.0 inputs, to 1x HDMI 2.0 output, capable of 4K60 4:4:4 60Hz 18G.

Multiview mode – Any of the 4 available inputs can be selected to display in Single, Dual, Triple or Quad view, with various options of window size.

PiP – Any two inputs can be used to create a customised picture in picture, which includes window size and position.

Wide Range Scaling – Full Up/Down 4K 18G Scaling with complete control over both resolution and refresh rate, ensuring an optimal image based on the display's capabilities.

Audio Control – Mute function and control of output volume. Audio can be de-embedded via Toslink or Analogue L/R RCA jacks. Any of the available inputs' audio can be independently selected at any time.

VKA – The Video Keep Alive function can maintain a video output when there is no signal. When there is no active input signal, the display can be configured to show a blue or black image, ensuring that the screens remain active until a new signal is detected.

IT Content Setting – The IT Content (ITC) setting tells the display to use its own video quality processing algorithms, instead of the Intel graphics driver when movies are played in full-screen mode to ensure the best video quality.

HDCP Control – Support and management of HDCP ensures compatibility. Convert from HDCP 2.2 down to HDCP 1.4 or simply put the unit into Cascade Mode.

Auto or Manual Switching – In Single mode, the auto-switch feature will automatically select the newly connected source. When currently selected source is lost, the next available active input will be automatically selected. Manual switching can be carried out from the front panel, IR or RS232.

Features

• 4x1 4K 18G Switcher & Multi-viewer
• Seamless Switching
• Wide range Scaler to 4K60 4:4:4
• Single, Dual, Triple, Quad display modes
• PiP (Picture in Picture)
• Extensive EDID control
• HDCP management
• VKA (Video Keep Alive)
• ITC (IT Content)
• De-embed audio

PART NUMBER: SY-Apollo 41

HDMI VERSION

  Inputs: HDMI 2.0 (18Gbps) – HDR, HDR10, HDR10+, HLG and Dolby Vision Formats supported

  Output: HDMI 2.0 (18Gbps) – HDR, HDR10, HDR10+, HLG and Dolby Vision Formats supported

HDCP COMPLIANCE

  Input HDCP: HDCP 1.4, 2.2

  Output HDCP: Fully controlled – Pass through, 1.4, 2.2, Cascade mode

RESOLUTIONS / FORMATS

Input resolutions:

  All HDMI and PC resolutions up to 4K 60Hz 4:4:4

Colour Spacing:

  Pass through of RGB, YCbCr 4:4:4, 4:2:2, 4:2:0

Colour Depth:

  8, 10, 12 bits

SCALER

Up and Down-Scaling (Resolution and Refresh Rate)

  Various resolutions and refresh rates up to 4K@60Hz 4:4:4

AUDIO

Audio Formats Supported:

  2.0, 2.1, 5.1, 7.1 channel LPCM, Dolby, AC3, DTS

De-embedded Audio out:

  Optical Toslink and line level analogue audio RCA L/R

CONTROL

 1x RS232 (3-way pluggable terminal block) (57600 bps, 8 bits, no parity, 1 stop bit)

 1x IR Ext (3.5 stereo jack)

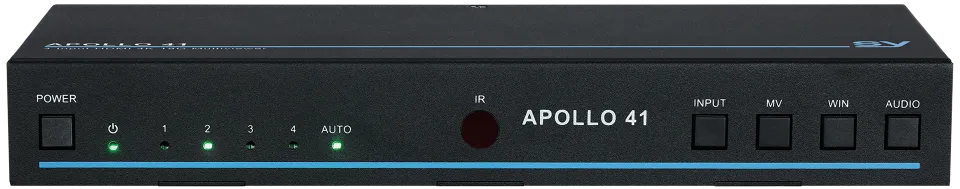

 Front Panel buttons

 Front Panel IR

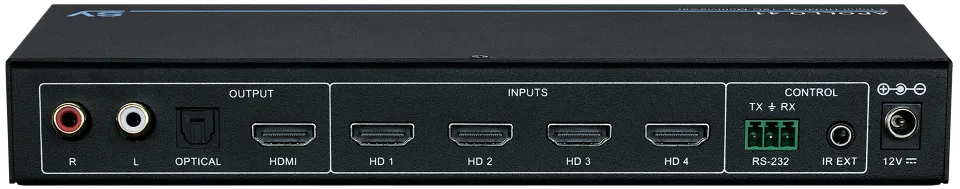

CONNECTORS

  4x HDMI Inputs

  1x HDMI Output

  1x Optical Toslink Digital audio out

  1x RCA L and R Analogue audio outs

  1x 3.5mm TRS IR Input

  1x Phoenix Screw Terminals for RS232

  1x IR Eye on front panel

  1x 12V DC Power input (2.1mm barrel jack)

POWER

Power Consumption:

  10W max

Power Supply:

  12V 2.5A DC – (2.1mm barrel jack)

ENVIRONMENTAL

Operating Temperature Range:

  0  ~ +40°C (32 ~ 104F)

Operating Humidity Range:

  10 ~ 90% RH (Non-condensing)

PHYSICAL

Dimensions (WDH)

  220 x 100 x 30mm

Weight (net)

  620g

WHAT’S IN THE BOX

 1x SY-Apollo 41

 1x User manual

 1x 12V 2.5A DC PSU (Locking)

 1x IR Eye

 1x IR remote control

 1x pluggable 3-way screw terminal connector

 2x Mounting Ears

 4x M3 screws

 4x Rubber feet
