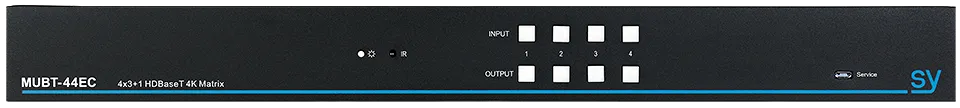

SY, SY-MUBT-44EC-SET - 4K UHD 4X3+1 Matrix - Includes 3x HDBT EC Rx

MUBT-44EC-Set is a cost-effective Professional 4K30 HDBaseT Distribution Matrix with 4x HDMI inputs, 1x HDMI output and 3x HDBaseT outputs.  The selected source can be routed to any HDBaseT output, as well as the local HDMI output.

POC - Only the matrix unit needs to be powered, as all the receivers are powered over the Cat6 (PoC).

HDCP - Version 1.4/2.2 compliant

EDID Management - Comprehensive EDID management is afforded by means of RS232 or Web GUI commands.

Audio De-embedding - The HDMI output also has De-embedded Audio available via both the analogue RCA jacks and the digital S/PDIF Optical Toslink audio connector.  Thus enabling the connection of an audio amplifier and speakers.

Control - Inputs can be selected from the Front Panel buttons, IR, RS232, or Web GUI.

RS232 and IR Control - This rack mountable matrix supports bi-directional IR.  Any SY keypad controller can be used in conjunction with the system to control Matrix routing, system functions via RS232 and also control remote displays via IR.

LAN Control - The powerful Web GUI provides a nice way to interface with the unit and control its functions. For example Configuration page allows you the set the HDCP compliance status for each input, and also gives a graphical view of the inputs and outputs, as well as tabs for Network settings and IO Labels.

Status updates - LED Status updates are also provided on the front panel, with the current matrix routing indicated by the LED back-lit input and output buttons.

HDBaseT - UHD 4K30 video is transmitted up to 40m, while 1080p will extend to 70m.  Supplied complete with HDBaseT receivers and associated accessories.  The EC HDBaseT receivers have 2 way IR extender functionality, and have a power status LED indicator to show that it is powered from the main unit, and also LEDs on the RJ45 socket to show Link and HDCP status.

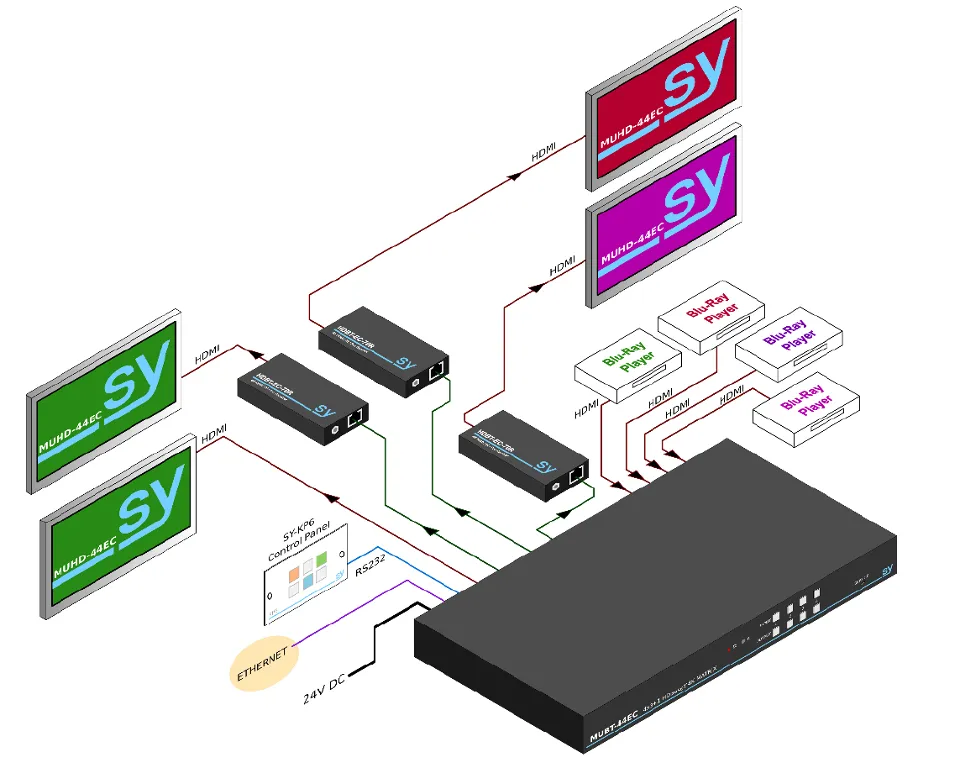

Suitable for applications where simple cost effective multi-room distribution of HDMI video signals from 4 sources to 1 local display and 3 remote displays over HDBaseT up to 70m.

Typical uses include: residential multi-room, offices, reception areas, waiting rooms and shops.

Features

• 1x HDMI and 3x HDBaseT outputs
• All resolutions up to 4K @60Hz 4:2:0
• Transmits 4K30 to 40m and 1080p to 70m
• HDBaseT Receivers are powered by the matrix (PoC)
• Supports HDMI 1.4 & HDCP 2.2
• De-embedded audio on HDMI output
• Supports Bi-directional IR Control
• Extensive EDID management
• Control: Front panel, IR, RS232, LAN

GENERAL

VIDEO RESOLUTIONS/FORMATS:

  VESA and SMPTE 480p to 2160p (4K UHD) with 3D.

  All resolutions to: 4096x2160p @60Hz 4:2:0 8bit, 3840x2160p @30Hz 4:4:4 8bit.

  All PC resolutions to 1920x1200

Bandwidth

  10.2Gbps

HDCP:

  Compatible with all versions up to 2.2

HDBaseT Transmission distance

  1080p to 70m and 4K to 40m

VIDEO:

Inputs:

Video:

  4x HDMI

Outputs:

Video:

  3x HDBaseT (RJ45) with PoC, 1x HDMI

AUDIO:

Outputs:

  1x Analogue RCA L+R Analog Audio - PCM

  1x Optical TosLink Digital Audio - PCM, Dolby, DTS, DTS-HD

Frequency Response

  20Hz ~ 20KHz

CONTROL:

   RS232 via 3 pin phoenix terminal connector

   IR, TCP/IP, Front panel buttons

POWER:

  Power supply: 24V DC, 2.7A max.

  Power consumption: 35W

PHYSICAL

Weight:

  1.7kg

Dimensions: (WxHxD):

  436.4 x 44 x 236.5 mm

WHAT’S IN THE BOX

  1x MUBT-44EC

  4x IR Emitters

  1x IR remote control

  2x rack ears with 6 chassis screws

  4x Self adhesive pads for Matrix switch and HDBT Receivers

  3x HDBT EC HDBaseT receivers

  4x IR Receivers

  1x RS232 cable

  6x Mounting ears and 6 screws for HDBT receivers

12x Round self-adhesive plastic pads for the HDBaseT receivers

  1x UK Power cable

  1x 24V DC 2.7A PSU

  1x User manual
