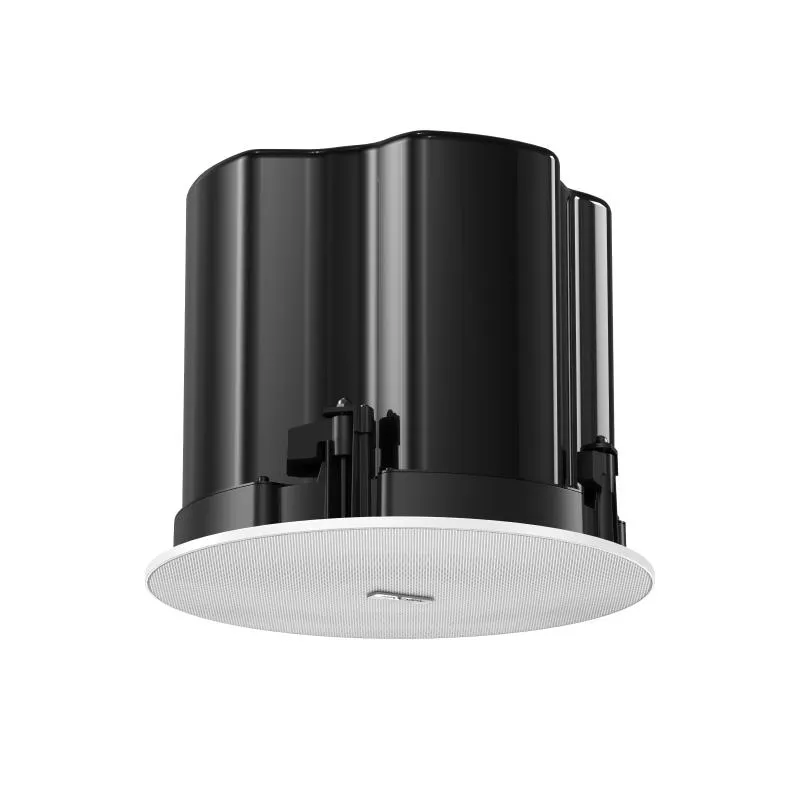

6.5" Analog Ceiling Speaker

• Rated power: 60W
• Sensitivity(1m,1W)：91dB
• Max SPL：108dB(Rated Power)
• Frequency Response：65Hz~20kHz(-10dB)
• Speaker unit：1 × 1.0-inch tweeter and 1 × 6.5-inch woofer
• Power： Input impedance: 8Ω/60W;Constant voltage 100V/30W;Constant voltage 70V/30W
• Color：Black and white optional

• Impedance 8Ω
• Speaker Unit

  Woofer: 1×6.5"

  Tweeter: 1×1.0"

• Rated Power 60W
• Sensitivity 91 dB
• Maximum Sound Pressure Level

  Rated Power：108dB

  Peak Power：114dB

• Frequency Response -10dB：65-20kHz
• System Configuration Two-way crossover
• Program Power 120W
• Peak Power 240W

• Audio In 4-pin Phoenix connector × 1
• Voltage Input

  Voltage Input Constant voltage 100V: 30W, 15W, 7.5W,

  Constant voltage 70V: 30W, 15W, 7.5W 3.75W

• Power Input impedance: 8Ω/60W
• Material

  Body: Plastic

  Steel mesh: Metal

• Dimension Ø247.58 × 228.7 mm
• Package Dimension 345mm X 345mm X 285mm
• 4632g
• With Package Weight 5642g
• Color Black and white optional
• Packing List

  Complete unit × 1;

  SQG × 1;

  4-pin Phoenix terminal × 1

• Operating Temperature -10℃～50℃，<90%RH
• Mounting Hole Dimension Ø224 mm (8.82")
• Installation Ceiling mount
• Mounting Depth 232 mm (9.13")
