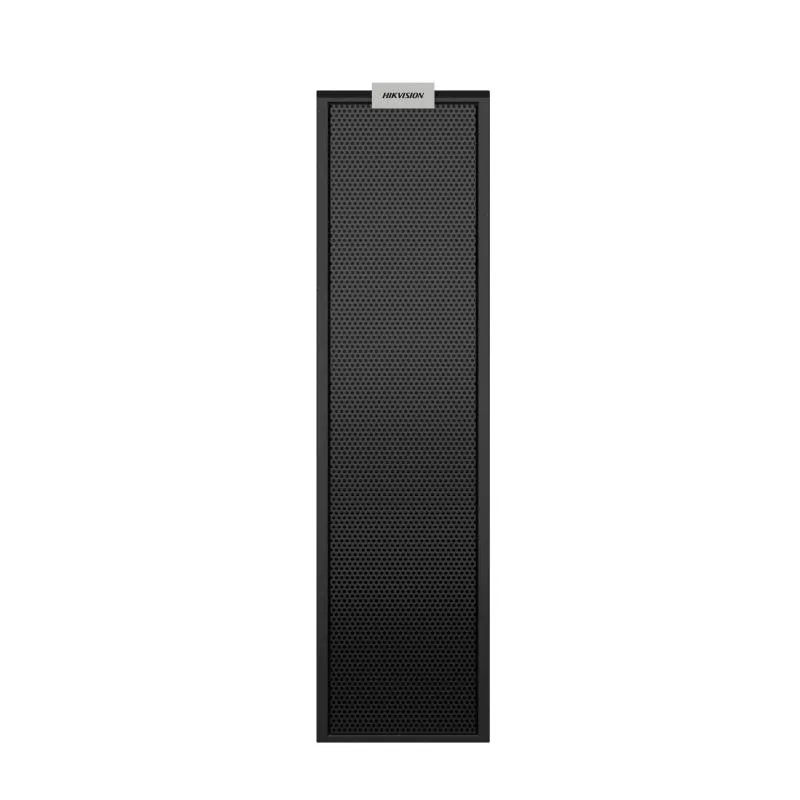

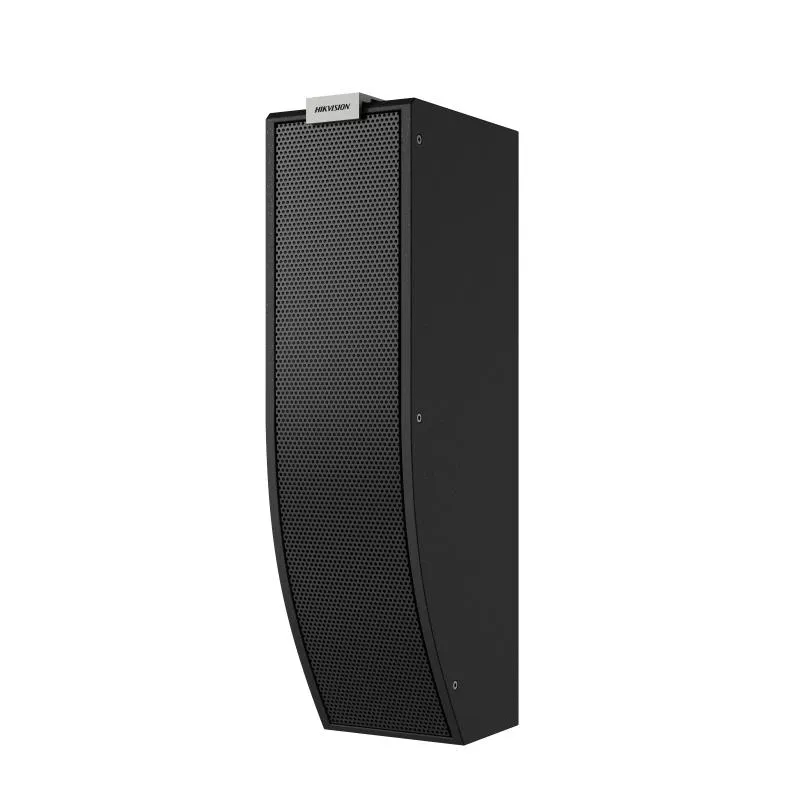

4 × 4" J-shaped Column Speaker

• 200 W rated power
• Driver：4-inch woofers × 4, 0.75-inch tweeters × 12
• Sensitivity(1 m, 1 W): 98 dB
• Frequency response: 60Hz~20KHz（±10dB），80Hz~20KHz （±3dB），
• Coverage angle: horizontal dispersion angle: 100°, vertical radiation angle: up 15° , down 25°
• Maximum sound pressure level: 121 dB @1 m

• Impedance 8 Ω
• Rated Power 200 W
• Total Harmonic Distortion (THD) ＜1%
• Sensitivity (1 m, 1 W)98 dB
• Max. Acoustic Pressure 121 dB @1m
• Frequency Response

  ±10dB：60Hz~20KHz

  ±3dB：80Hz~20KHz

• Coverage Angle

  Horizontal dispersion angle: 100°；

  vertical radiation angle：up 15°,down 25°

• Device Interface 4-Pin phoenix connector（Fixed Resistance Input）

• Material Birch
• Dimension 476.1*130*195.5mm
• Approx. 5.6 kg (12.3 lb.)
• Operating Condition -10℃ to 50℃ (14 °F to 122 °F)
• Package Dimension 688 X 245 X 310mm
• With Package Weight Approx. 8.0 kg (17.6 lb.)
• Color Black
• Mounting Hole Dimension 180mm
• Installation Wall Mount
