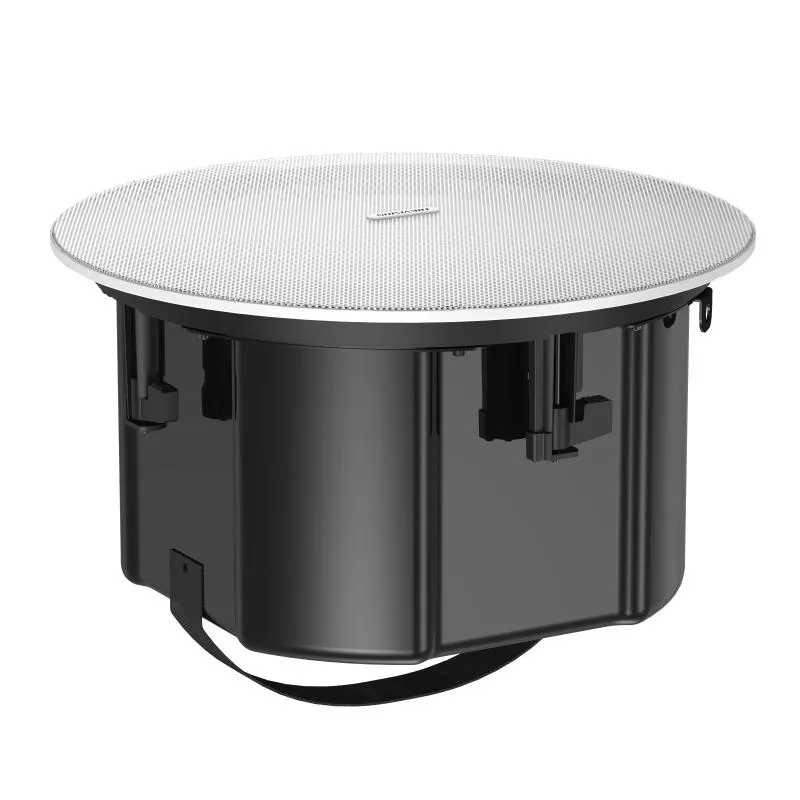

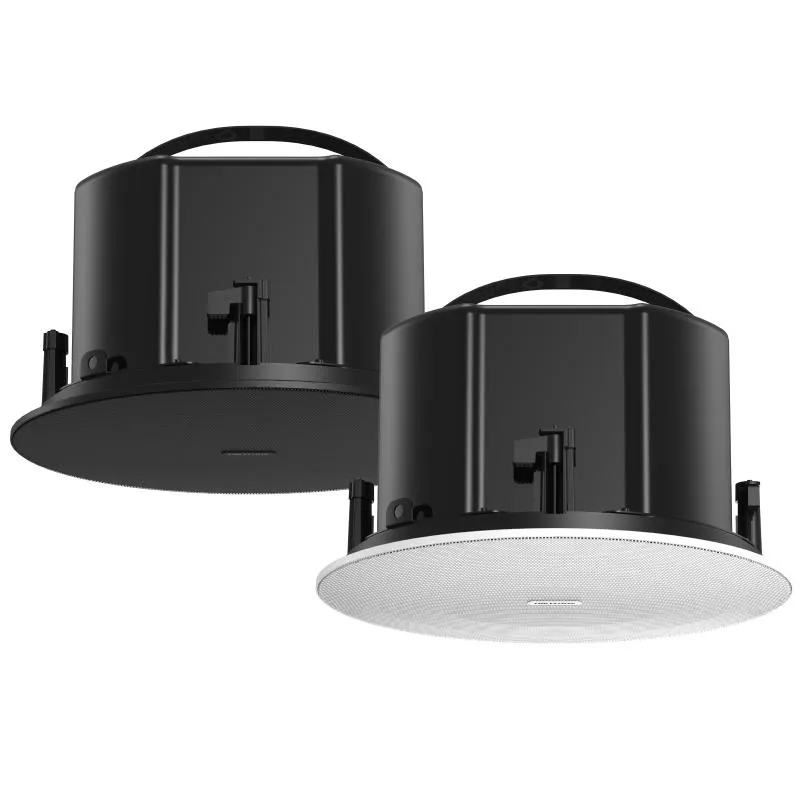

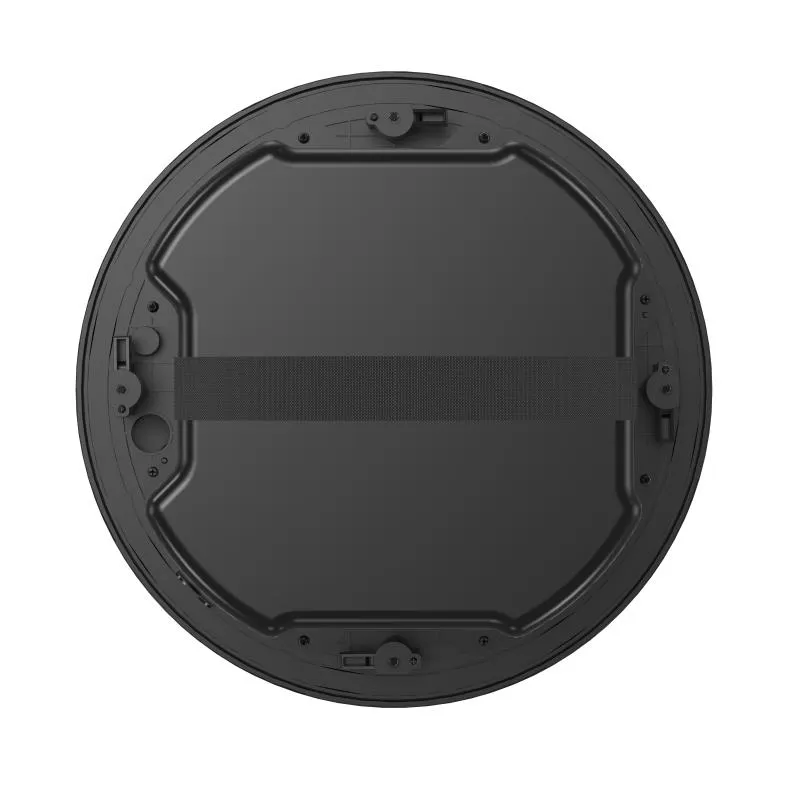

6.5" Network Frameless Ceiling Speaker PoE

• 1 × 1.2-inch tweeter and 1 × 6.5-inch woofer
• PoE af、PoE at、PoE bt Adaptive，Max 40W。
• 90 dB Nominal Sensitivity
• 105 dB@1 m Rated Maximum SPL
• 74 Hz to 20 kHz (-10 dB) Bandwidth
• White or Black

• Impedance 4 Ω
• Maximum Output Loudness 106 dB
• Effective Bandwidth (-10 dB) 74Hz to 20 kHz
• Total Harmonic Distortion (THD) THD(1 W @1 kHz): ＜0.5%
• Sensitivity (1 m, 1 W)90 dB
• Crossover Point 3.3 kHz
• Speaker Unit 1 × 1.2-inch tweeter and 1 × 6.5-inch woofer
• Coverage Angle 110°
• Speaker Type Two-Way
• Effective Bandwidth (-3 dB) 100 Hz to 20 kHz
• Crossover Type Digital Crossover

• Audio Algorithm Delay, Mixing, PEQ, ALC, Digital Crossover

• Network Protocol AES67, TCP/IP, ICMP, HTTP, HTTPS, DNS, RTP, RTSP, RTCP, NTP, QoS, UDP, SSL/TLS, IEEE1588
• Interface Protocol (API) OTAP

• Network Interface RJ45 100 M Ethernet port × 1
• Audio In Network input
• LED Indicator

  Light Off: The device is not powered on. The program is not started.

  Breathing White: The device is powering on and initializing

  Solid White: The device is running normally

  Flashing White: Device recognition is in progress (when there are multiple devices in the system, click Identify Device on the client

  Flashing Red: Device fault.

• Reset Support

• System Requirement

  Recommended system configuration for Audio Assistant Tool:

  Operating System: Windows(R) 10 (recommended), Compatible with Windows(R) 7 / Windows(R) 8.1 / Windows(R) 11

  CPU: Intel(R) i3-9100@4.2 GHz or above

  RAM: 4 GB and above

  Video Card: GT1030 D5

  HDD: 20 GB

  Display: 1920 × 1080 and above

• Power Hi-PoE/PoE++ (802.3bt) 60 W
• Material Metal
• Dimension Ø327.49 × 179.69 mm (12.89" × 7.07")
• Package Dimension 425 × mm × 425 mm × 310 mm (16.78" × 16.78" × 12.2")
• 4.4 kg (9.7 lb.)
• With Package Weight 7.4 kg (16.31 lb.)
• Color

  Main Body: black

  Top Cap: white/black

• Operating Temperature -10 °C to 50 °C (14 °F to 122 °F)
• Operating Humidity 90% or less (non-condensing)
• Mounting Hole Dimension Ø300 mm (11.81")
• Installation Ceiling Mounting
• Mounting Depth 174 mm (6.85")
