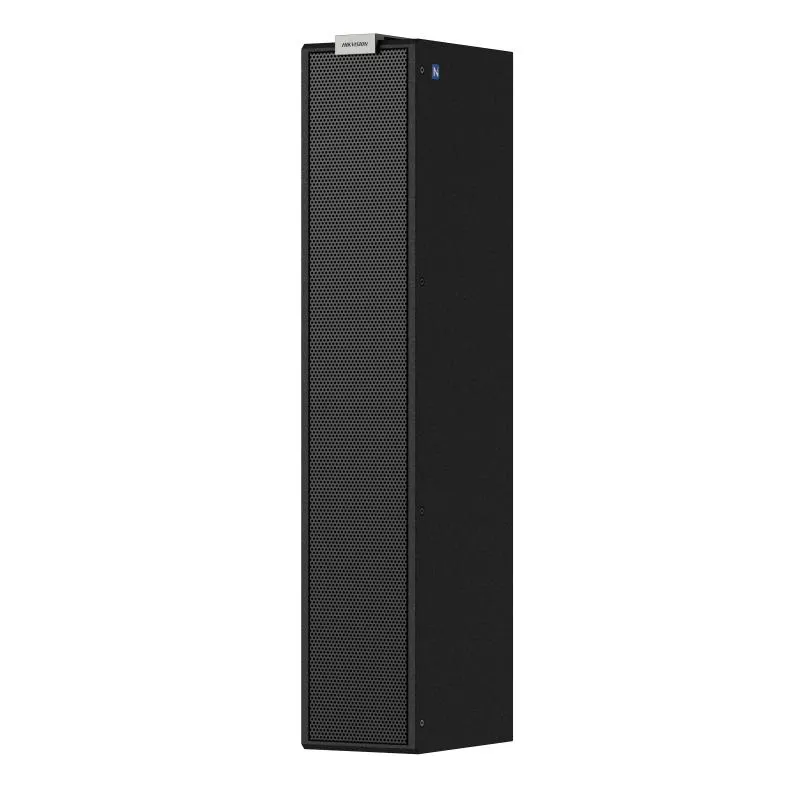

Hikvision, DS-QAPS4R30E-4N - Netwerk Zuil Luidsprekers, 300 Watt

Hikvision, DS-QAPS4R30E-4N - Netwerk Zuil Luidsprekers, 300 Watt

6 × 4" netwerkkolomluidspreker Eco

Nominaal vermogen: 300 W
Driver: 6 x 4-inch woofers, 18 x 0,75-inch tweeters
Gevoeligheid (1 m, 1 W): 90 dB
Frequentiebereik: 80 Hz~20 kHz (±10 dB), 100 Hz~20 kHz (±3 dB)
Structuurhoek: horizontale spreidingshoek: 130°, verticale stralingshoek: omhoog 20°, omlaag 20°
Maximaal geluidsdrukniveau: 116 dB @1 m

Speaker
  • Rated Power 300 W
  • Total Harmonic Distortion (THD) ≤1%
  • Sensitivity (1 m, 1 W)91 dB
  • Max. Acoustic Pressure 116 dB @1m
  • Frequency Response

    ±10dB：80Hz~20KHz

    ±3dB：100Hz~20KHz

  • Speaker Unit 6-inch woofers × 4, 0.75-inch tweeters × 18
  • Coverage Angle

    Horizontal dispersion angle: 130°；

    vertical radiation angle：up 20°,down 20°

  • Crossover Type Electronic Crossover
Function
  • Audio Algorithm VOLUME、DELAY、MIX、HPF、LPF、PEQ、COMP、PP、FD、NOISEGATE
Network
  • Network Protocol AES67，TCP/IP，ICMP，HTTP，HTTPS，DNS，RTP，RTSP，RTCP，NTP，QoS，UDP，SSL/TLS，IEEE1588
  • Interface Protocol (API) OTAP
  • Network Security Password protection, complex passwords, HTTPS encryption, HTTP/HTTPS authentication, security audit logs, TLS 1.2/1.3
  • Data Security Secure Boot
Interface
  • Indicator

    Power status indicator × 1

    Line In input status indicator × 1

  • Network Interface 2 x RJ45 100 Mbps Ethernet ports
  • Audio In

    Network input

    3-pin Phoenix terminal (Line in input) × 1

  • Audio Out 3-pin Phoenix terminal (Line in output) × 1
  • Reset support
General
  • Power AC 110-240V ~50/60Hz 1.5A
  • Dimension 130mm × 208.5mm × 697.9mm
  • 8.54kg
  • Material Birch
  • Packing List

    Complete unit × 1

    AC power cord × 1

    QSG × 1

    Installation screw pack × 1

    Wall-mount bracket × 1

  • Operating Condition -10℃ to 50℃
  • Package Dimension 915mm × 245mm × 320mm
  • With Package Weight 12.5kg
  • Color Black
  • Installation Wall Mount
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
€ 2.399,00 € 2.399,00 (Exclusief btw)

Aan winkelmandje toevoegen
Bekijk hier onze Algemene voorwaarden
Documenten
DS-QAPS4R30E-4N_Datasheet_20251202.pdf
