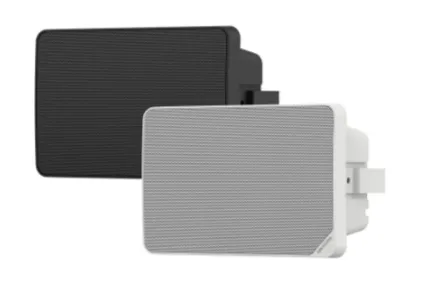

Network Cabinet Speaker 20W

• 5.25′′ × 1
• Rated Power: 20 W
• Sensitivity(1 m, 1 W): 90 dB
• Max. SPL: 103 dB
• Frequency Response: 130 Hz to 17.5 kHz
• Support schedule/live/emergency broadcast; alarm linkage; two-way audio; TTS
• White or black appearance optional
•


• Type electret
• Amount 2
• Frequency Response 100 Hz to 18 kHz
• Sensitivity -42 dBV/Pa
• Sampling Rate 48 kHz
• Quantization Bits 16 bit

• Rated Power 20 W
• Impedance 8 Ω
• Max. Acoustic Pressure 103 dBSPL
• Sensitivity(1 m, 1 W) 90 dB
• Direction All directions
• Frequency Response 130 Hz to 17.5 kHz
• SNR 83 dB
• Speaker Unit 5.25′′ × 1
• Coverage Angle

  Horizontal: 135°

  Vertical: 130°

• Audio Algorithm AEC、AGC、ANS、DRC
• Audio Bit Rate

  G.711u law(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)

  Sampling bit width: 16 bits

• Audio File Format WAV、MP3、MP2、AAC
• NTP Timing Support
• Broadcast Regular broadcast, live broadcast, emergency broadcast
• Two-Way Audio Support
• Speech Synthesis Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French

• Network Protocol IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP
• Interface Protocol (API) ISAPI, ISUP, SIP, RTP,ONVIF
• Client Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone

• Communication Method Support wired network and bluetooth communication

• Number of Sub Speaker 24 V, 2.5 A, max. 60 W: support 1* 20W sub speakers
• Sub Speaker Connection Method Impedance Input

• Ethernet Interface RJ45 10 M/100 M Adaptive Ethernet port × 1
• Local Storage Built-in 64 GB EMMC (Audio file storage is 55 GB.)
• APII SAPI, ISUP, SIP,ONVIF
• Audio In 3.5 mm audio interface × 1
• Audio Out Fixed resistance output × 1，phoenix terminal，8 Ω
• LED Indicator

  Solid green: normal working

  Flashing green: intercom in progress

  Solid red: start or network disconnection

  Flashing red: upgrading

• Reset Support
• Volume Knob Support

• Power 24 VDC/2.5 A
• Material Main body&Front cover：plastic, bracket: metal
• Operating Temperature -30 °C to 60 °C (-22 °F to 140 °F)
• Operating Humidity＜90% (No condensation)
• Dimension 268.4 mm × 180.4 mm × 125.12 mm (10.57" × 7.1" × 4.93")
• Package Dimension 340 mm × 306 mm × 180 mm (13.39" × 12.05" × 7.09")
• Approx. 2 kg (4.4 lb.)
• Color White or black appearance optional
• With Package Weight Approx. 2.2 kg (4.8 lb.)
• Packing List

  Device × 1

  U-shaped bracket × 1

  Adapter × 1

  Screw pack × 1

  Installation sticker × 1

  Regulatory Compliance and Safety Information × 1

• Language 41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
• Bluetooth Bluetooth 5.0, 10 m

• RF

  CE-RED: EN 301489-1 V2.2.3 (BT or 2.4G), EN 301489-17 V3.2.4 (BT or 2.4G), EN 300 328 V2.2.2 (BT or 2.4G), EN62311 2020(BT or 2.4G)

  RCM: EN 300 328 V2.2.2 (BT or 2.4G), AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note

  IC ID: RSS-247(BT or 2.4G)

  ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018

• EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
• Safety

  CB: IEC 62368-1:2014

  CE-LVD: EN 62368-1:2014/A11:2017

• Environment

  CE-RoHS: 2011/65/EU

  WEEE: 2012/19/EU

  Reach: Regulation (EC) No 1907/2006
