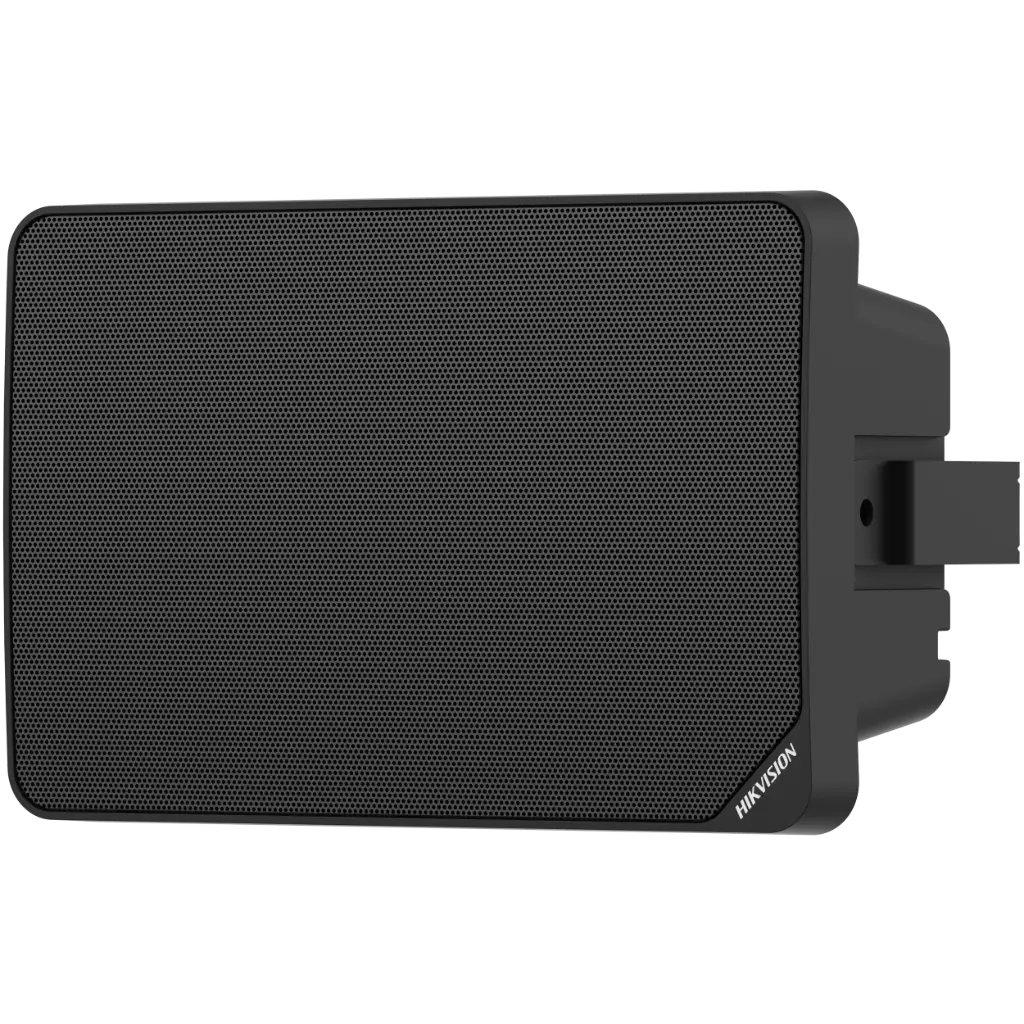

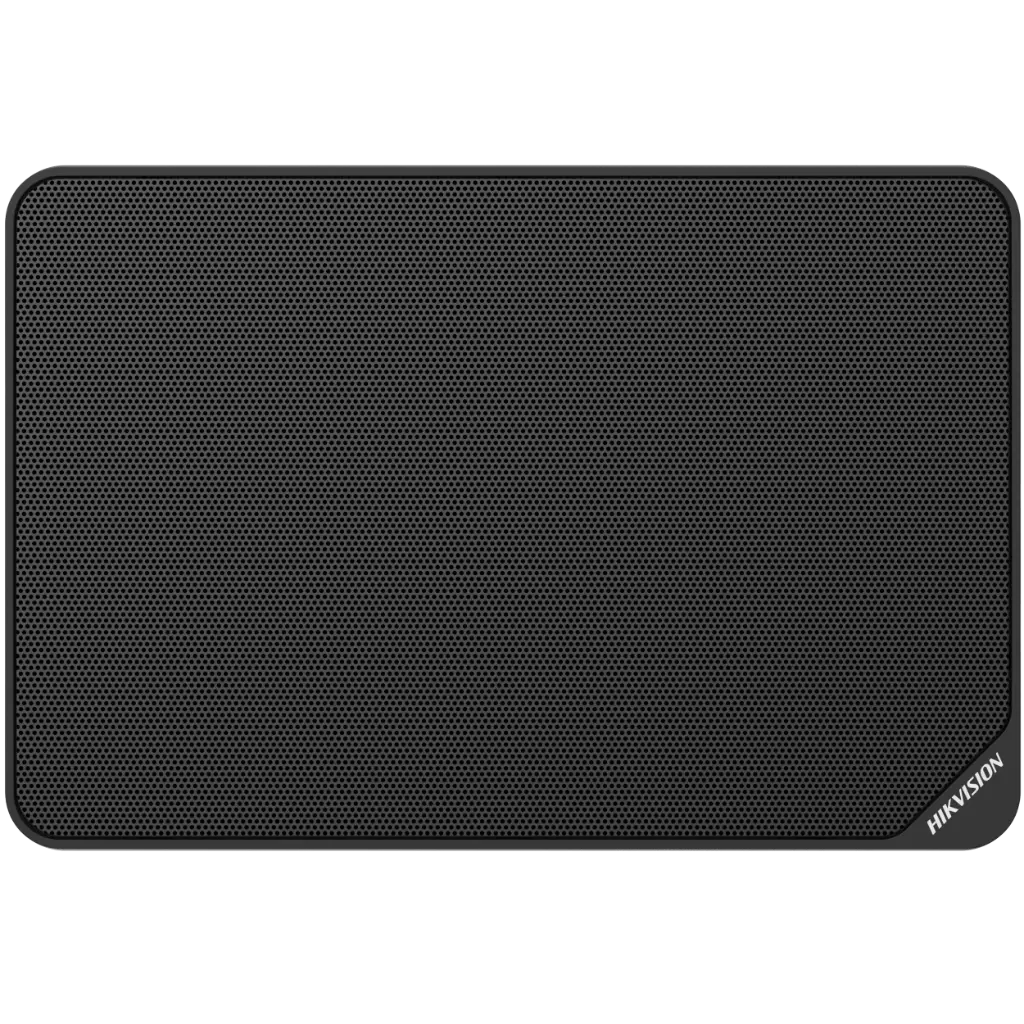

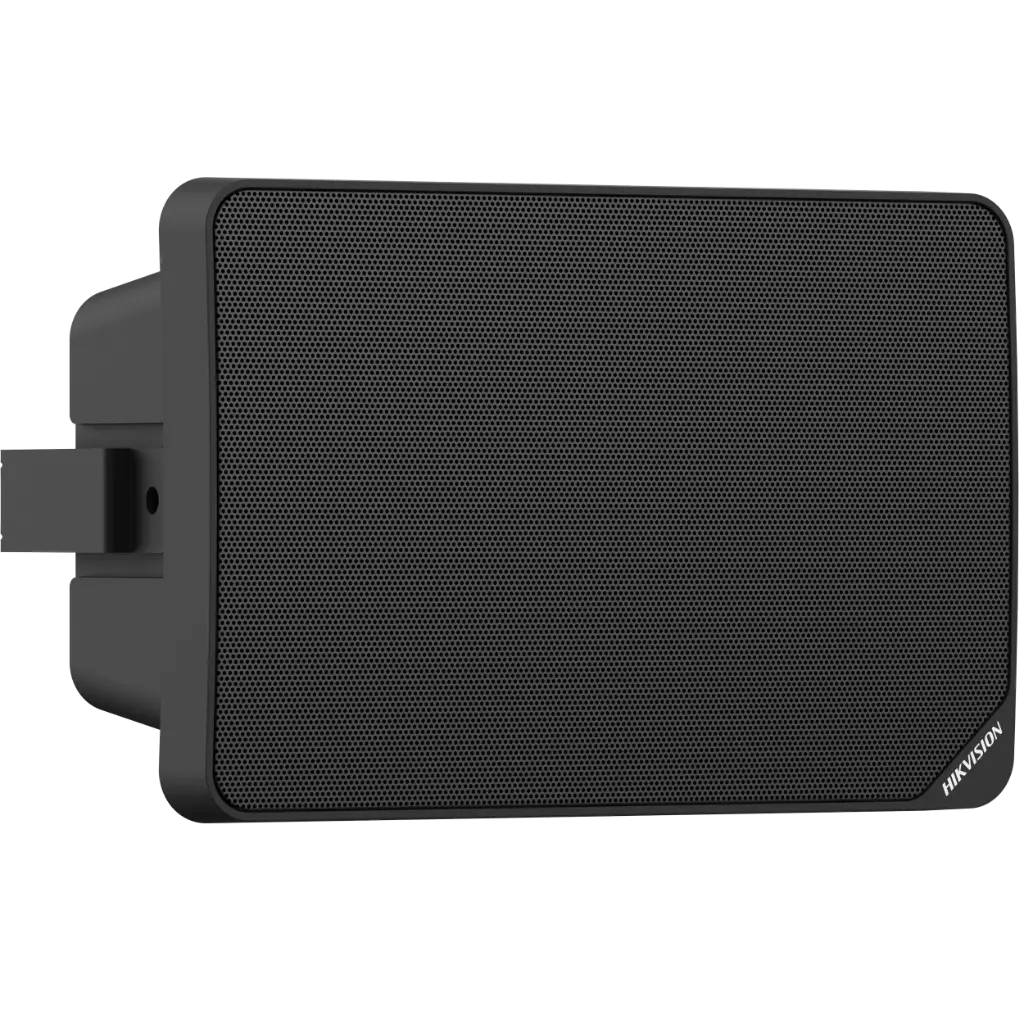

Analog Cabinet Speaker 20W EN54

• 5.25′′ × 1
• Rated Power: 70 V: 5 W/10 W/15 W/20 W, 100 V: 5 W/10 W/15 W/20 W
• Sensitivity(1 m, 1 W): 90 dB ± 3 dB
• Max. SPL: 103 dB
• Frequency Response: 130 Hz to 17.5 kHz

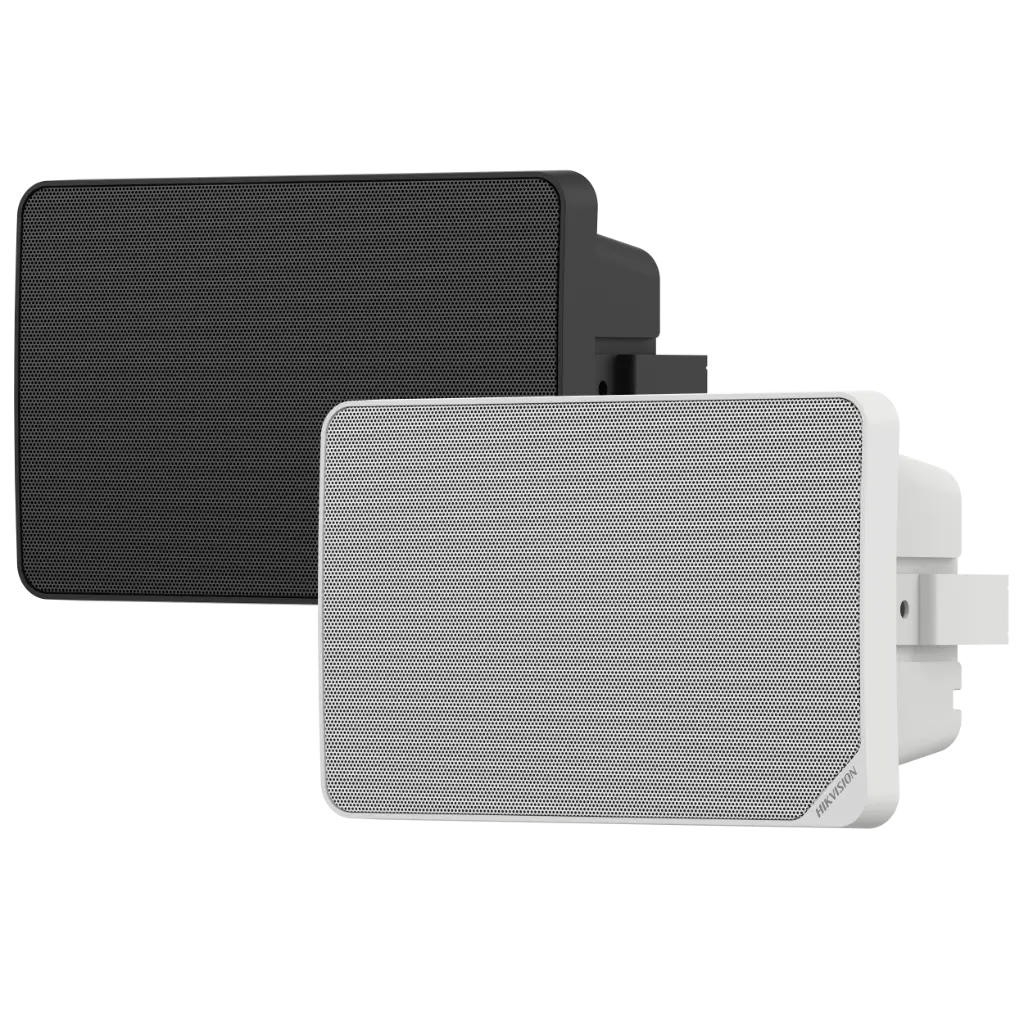

• White or black appearance optional

• Rated Power

  70 V: 5 W/10 W/15 W/20 W

  100 V: 5 W/10 W/15 W/20 W

• Impedance 8 Ω
• Max. Acoustic Pressure 103 dBSPL
• Sensitivity(1 m, 1 W) 90 dB ± 3dB
• Direction All directions
• Frequency Response 130 Hz to 17.5 kHz
• Speaker Unit 5.25′′ × 1

• Audio In Fixed pressure in 100 V/Fixed pressure in 70 V/Fixed resistance input 8 Ω × 1

• Material Main body&Front cover：plastic, bracket: metal
• Operating Temperature -30 °C to 60 °C (-22 °F to 140 °F)
• Operating Humidity ＜90% (No condensation)
• Dimension 268.4 mm × 180.4 mm × 125.12 mm (10.57" × 7.1" × 4.93")
• Package Dimension 340 mm × 306 mm × 180 mm (13.39" × 12.05" × 7.09")
• Approx. 1.5 kg (3.3 lb.)
• Color White or black appearance optional
• With Package Weight Approx. 2 kg (4.4 lb.)
• Packing List

  Device × 1

  U-shaped bracket × 1

  Screw pack × 1

  Installation sticker × 1

  Regulatory Compliance and Safety Information × 1
