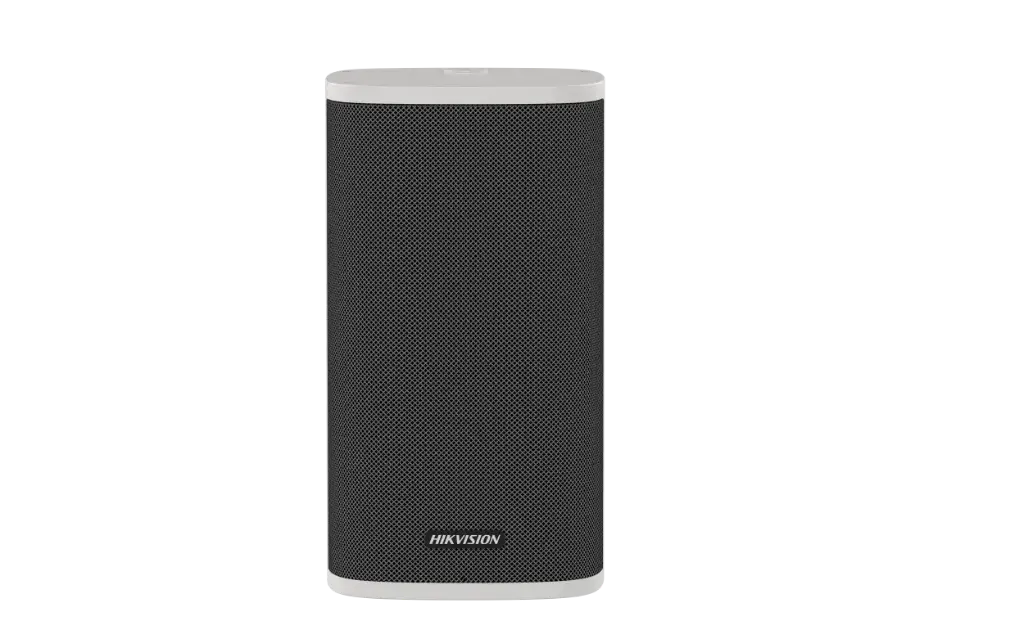

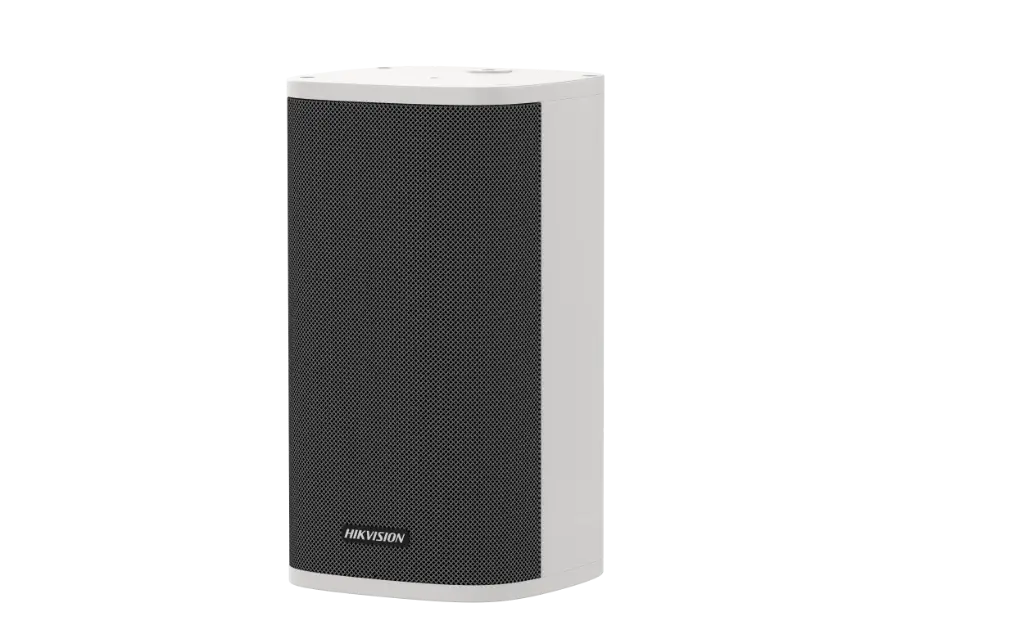

Network Column Speaker 30W

• Low frequency 5.25′′ × 2，high frequency 1′′ × 1
• Rated Power: 30 W
• Sensitivity(1 m, 1 W): 91 dB
• Max. SPL: 97.5 dB
• Frequency Response: 100 Hz to 20 kHz
• Support schedule/live/emergency broadcast, alarm linkage, two-way audio, TTS

• Type electret
• Amount 2
• Frequency Response 100 Hz to 20 kHz
• Sensitivity -42 dBV/Pa
• Sampling Rate 48 kHz
• Quantization Bits 16 bit

• Rated Power 30 W
• Impedance 8 Ω
• Max. Acoustic Pressure 97.5 dBSPL
• Sensitivity(1 m, 1 W) 91 dB
• Direction All directions
• Frequency Response 100 Hz to 20 kHz
• SNR 85 dB
• Speaker Unit Low frequency 5.25′′ × 2，high frequency 1′′ × 1
• Coverage Angle

  Horizontal: 170°

  Vertical: 190°

• Audio Algorithm AEC、AGC、ANS、DRC
• Audio Bit Rate

  G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)

  Sampling bit width: 16 bits

• Audio File Format MP3, WAV
• NTP Timing Support
• Broadcast Regular broadcast, live broadcast, emergency broadcast
• Two-Way Audio Support
• Speech Synthesis Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French

• Network Protocol IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
• Interface Protocol (API)ISAPI, ISUP, SIP, RTP,ONVIF
• ClientHik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone

• Communication Method Support wired network communication

• Ethernet Interface RJ45 10 M/100 M Adaptive Ethernet port × 1
• Local Storage Built-in 4 GB EMMC (Audio file storage is 1 GB.)
• APIISAPI, ISUP, SIP,ONVIF
• Alarm Alarm input × 2
• Audio In Line in × 1, phoenix terminal
• LED Indicator

  Green light on: normal

  Green light flash: intercom in progress

  Red light on: start or network disconnection

  Red light flash: upgrading

• Reset Support

• Power24 VDC/1.5A
• Material Metal
• Operating Temperature -40 °C to 60 °C(-40 °F to 140 °F)
• Operating Humidity ＜90% (No condensation)
• Dimension 160 mm × 160 mm × 292.8 mm(6.3" × 6.3" × 11.53")
• Package Dimension 560 mm × 265 mm × 250 mm(22" × 10.4" × 9.8")
• Approx. 3.47 kg (7.65 lb.)
• Color White
• With Package Weight Approx. 5.14 kg (11.33 lb.)
• Packing List

  Device × 1

  Adapter × 1

  Screw pack × 1

  Support × 1

  L-shaped wrench × 1

  Regulatory Compliance and Safety Information × 1

• Language 41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese

• Protection IP66: IEC 60529-2013
• EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
• Safety

  CB: IEC 62368-1:2014

  CE-LVD: EN 62368-1:2014/A11:2017

• Environment

  CE-RoHS: 2011/65/EU

  WEEE: 2012/19/EU

  Reach: Regulation (EC) No 1907/2006
