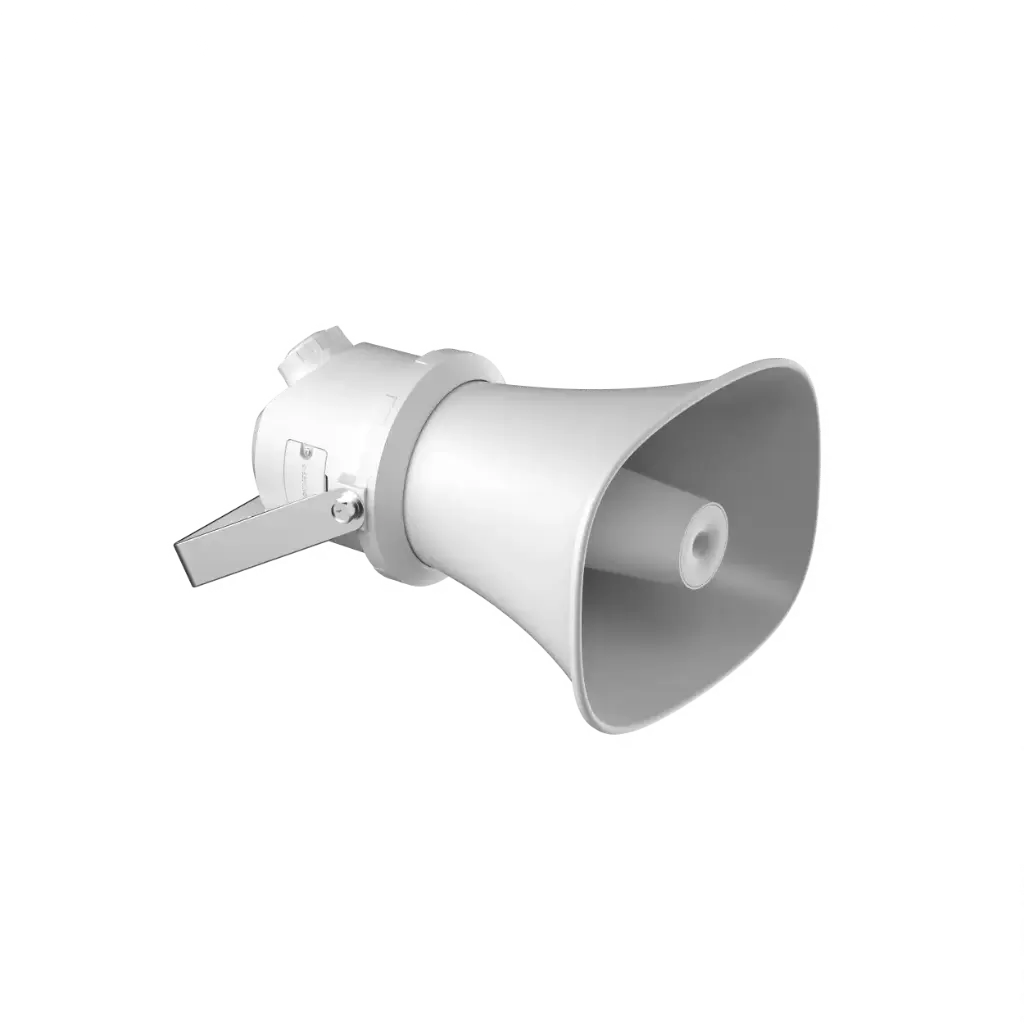

Network Horn Speaker 7W

• Rated Power: 7W
• Sensitivity(1 m, 1 W): 110 dB
• Max. SPL: 121 dB
• Frequency Response: 300 Hz to 13 kHz
• Support PoE
• Support schedule/live/emergency broadcast, alarm linkage, two-way audio, TTS
• White

• Type electret
• Amount 2
• Frequency Response 100 Hz to 20 kHz
• Sensitivity -42 dBV/Pa
• Sampling Rate 48 kHz
• Quantization Bits 16 bit

• Rated Power 7 W
• Impedance 8 Ω
• Max. Acoustic Pressure 121 dBSPL
• Sensitivity(1 m, 1 W) 110 dB
• Direction 70° horizontal by 100° vertical
• Frequency Response 300 Hz to 13 kHz
• SNR 85 dB

• Audio Algorithm AEC、AGC、ANS、DRC
• Audio Bit Rate G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)
• Audio File Format MP3, WAV
• NTP Timing Support
• Broadcast Regular broadcast, live broadcast, emergency broadcast
• Two-Way Audio Support
• Speech Synthesis Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French

• Network Protocol IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
• Interface Protocol (API) ISAPI, ISUP, SIP, RTP,ONVIF
• Client Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone

• Communication Method Support wired network communication

• Ethernet Interface RJ45 10 M/100 M Adaptive Ethernet port × 1
• Local Storage Built-in 4 GB EMMC (Audio file storage is 1 GB.)
• APII SAPI, ISUP, SIP,ONVIF
• Reset Support

• Material Metal
• Operating Temperature -40 °C to 60 °C(-40 °F to 140 °F)
• Operating Humidity ＜90% (No condensation)
• Language 41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
• Dimension 182mm × 265 mm × 239 mm(7.18" × 10.62" × 9.42")
• Power POE IEEE 802.3at 16.4w(max)
• Package Dimension 310 mm × 245 mm × 350 mm(12.2" × 9.6" × 13.8")
• Approx. 2.1 kg (4.63 lb.)
• Color White
• With Package Weight Approx. 3.0 kg (6.61 lb.)
• Packing List

  Device × 1

  Threading cap × 1

  Regulatory Compliance and Safety Information × 1

• Protection IP67, IK10
• EMC CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
• Safety

  CB: IEC 62368-1:2014

  CE-LVD: EN 62368-1:2014/A11:2017

• Environment

  CE-RoHS: 2011/65/EU

  WEEE: 2012/19/EU

  Reach: Regulation (EC) No 1907/2006
