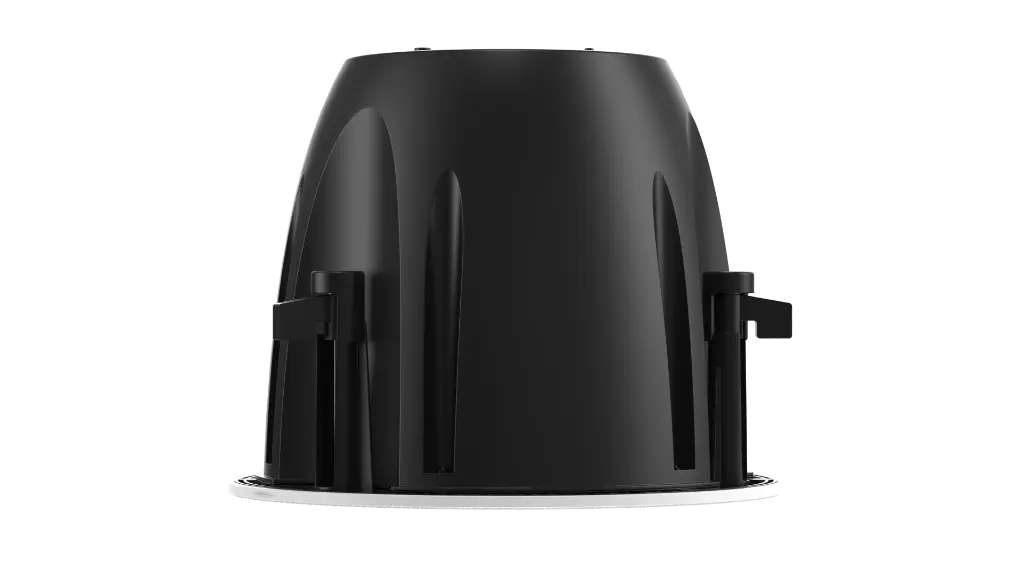

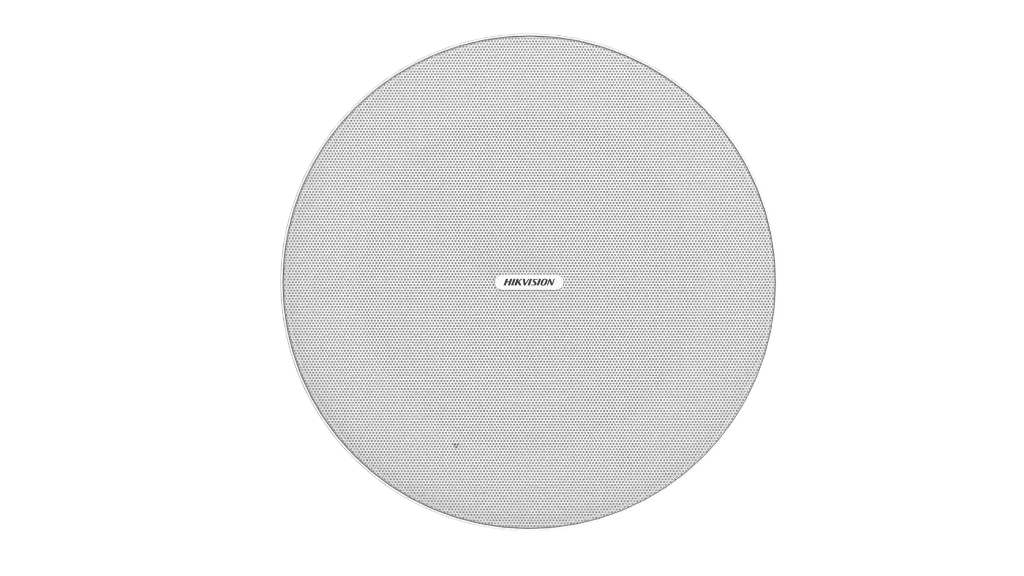

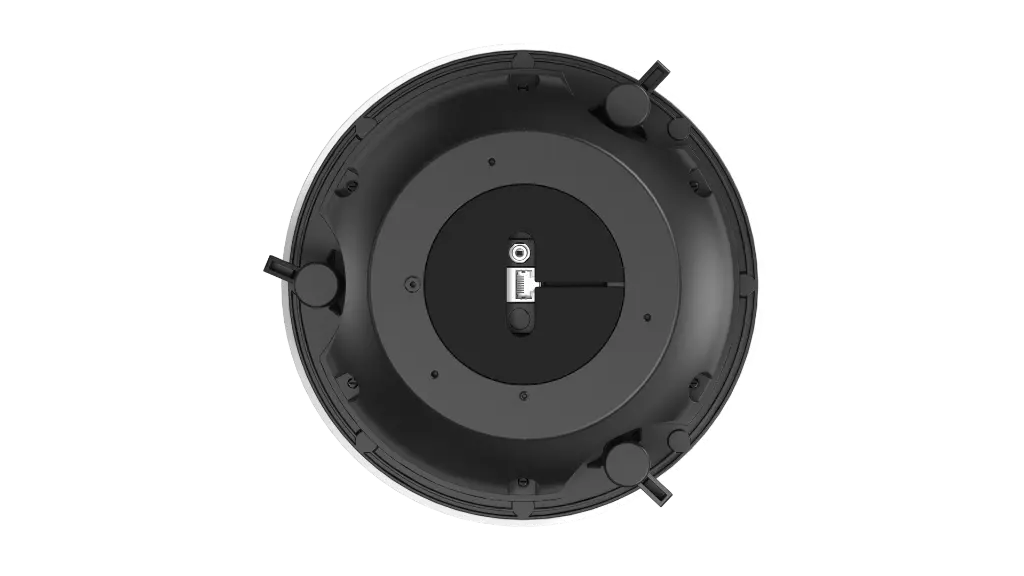

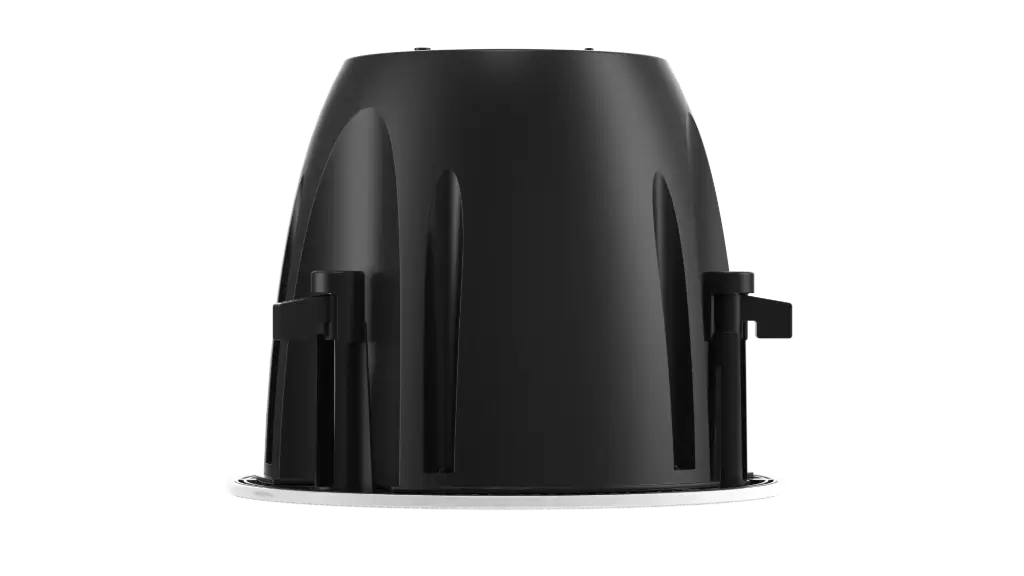

Analog Frameless Ceiling Speaker 10W

• 1 × 1.0-inch tweeter and 1 × 6.5-inch woofer
• Rated Power: 100V: 10W/5W/2.5W, 70V：10W/5W/2.5W/1.25W
• Sensitivity(1 m, 1 W): 89 dB
• Max. SPL: 98 dB
• Frequency Response: 120 Hz to 20 kHz
• White or black appearance optional

• Impedance 8Ω
• Rated Power 10W
• Total Harmonic Distortion (THD) ≤1%
• Sensitivity(1 m, 1 W) 89dB
• Max. Acoustic Pressure 98dB
• Frequency Response 120Hz~20kHz(-10dB)
• Speaker Unit1 × 1.0-inch tweeter and 1 × 6.5-inch woofer
• Coverage Angle Conical Coverage: 88°

• Audio In Constant voltage input: 100 V/Constant voltage input: 70 V/Constant impedance input: 8 Ω
• Voltage Input

  100V: 10W、5W、2.5W

  70V：10W、5W、2.5W、1.25W

  8Ω

• Material

  Main body: PC

  Base: ABS

• Dimension Ø242.78 mm × 192.7 mm (9.56" × 7.59")
• Approx. 2.7 kg (5.95 lb.)
• Language 5 languages: English, French, Spanish, German, Italian
• Package Dimension 305 mm × 305 mm × 315 mm (12.01" × 12.01" × 12.4")
• With Package Weight Approx. 2.9 kg (6.49 lb.)
• Packing List

  Device × 1

  Regulatory Compliance and Safety Information × 1

• Operating Temperature -10 °C to 45 °C
• Operating Humidity ＜90% (No condensation)
