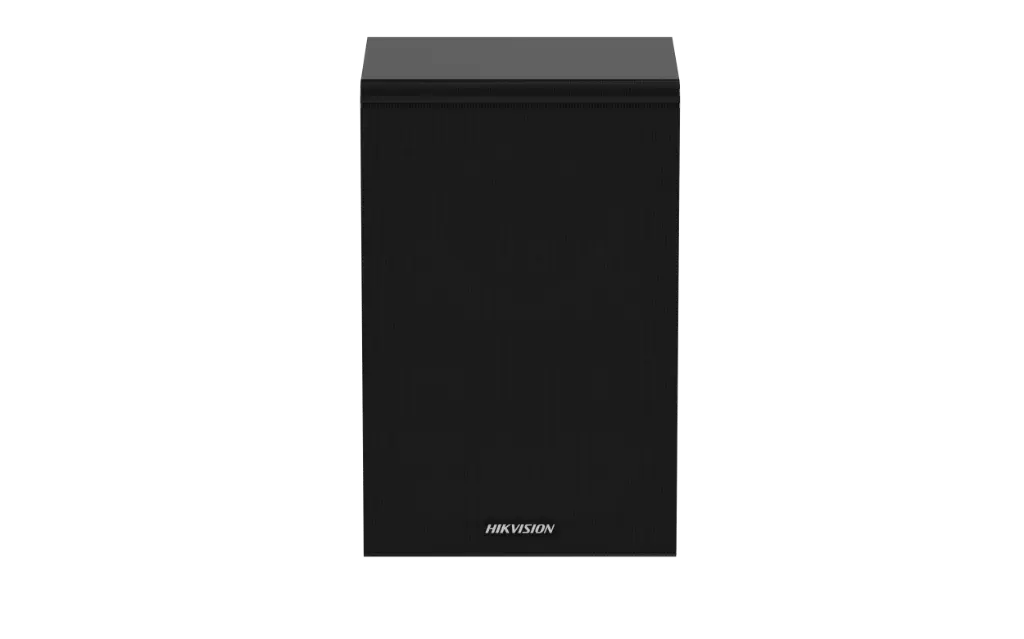

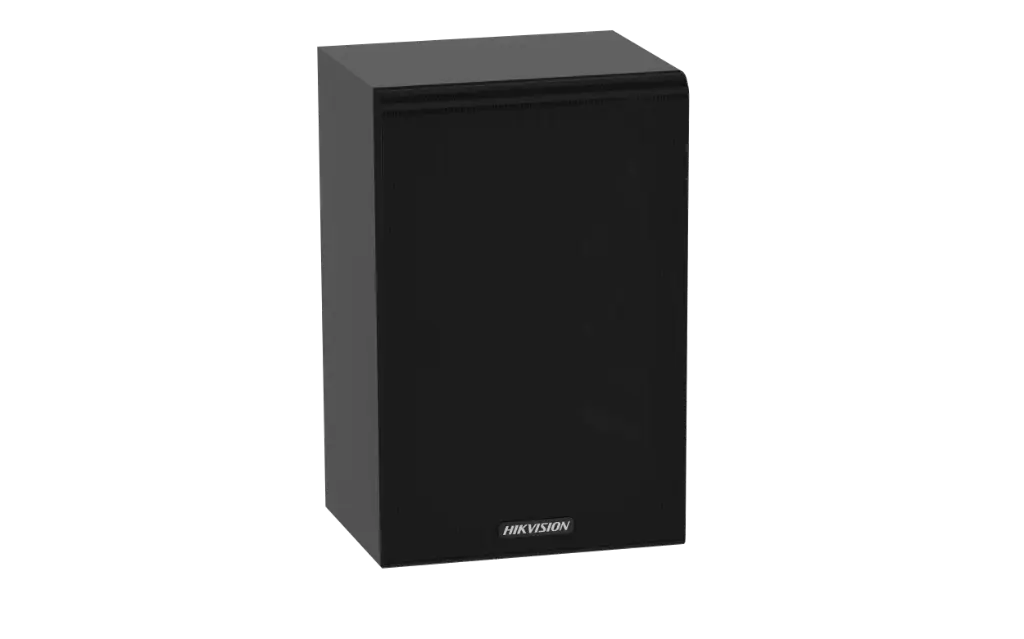

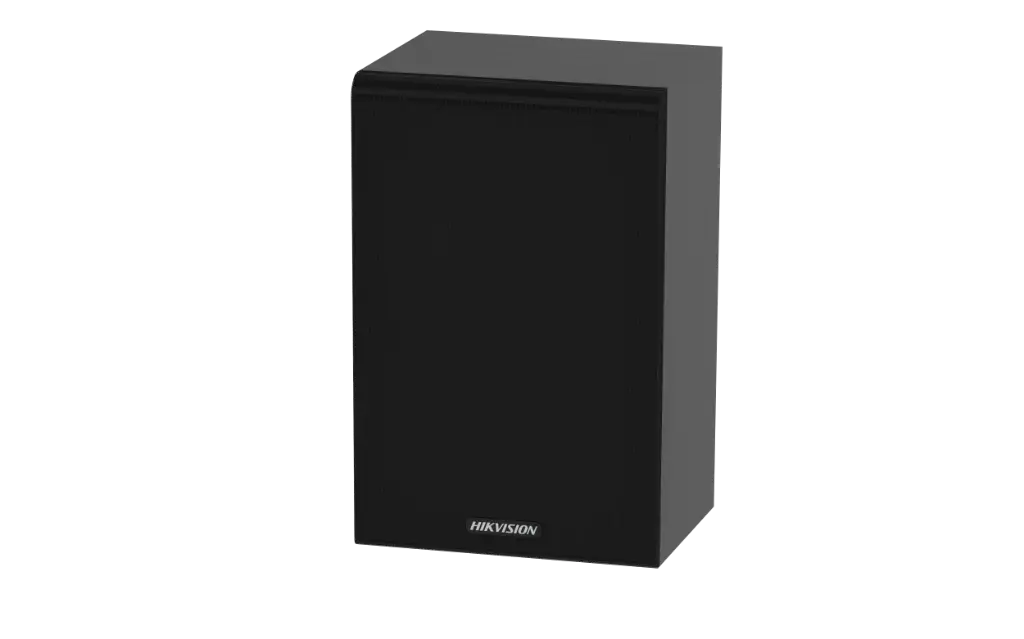

Network Cabinet Speaker 10W

• Full frequency 5.25′′ × 1
• Rated Power: 10 W
• Sensitivity(1 m, 1 W): 90 dB
• Max. SPL: 98 dB
• Frequency Response: 100 Hz to 20 kHz
• Support schedule/live/emergency broadcast; alarm linkage; two-way audio; TTS
• Black

• Type MEMS
• Amount 2
• Frequency Response 100 Hz to 20 kHz
• Sensitivity -42 dBV/Pa
• Sampling Rate 48 kHz
• Quantization Bits 16 bit

• Rated Power 10 W
• Impedance 8 Ω
• Max. Acoustic Pressure 98 dBSPL
• Sensitivity(1 m, 1 W) 90 dB
• Direction All directions
• Frequency Response 100 Hz to 20 kHz
• SNR 83 dB
• Speaker Unit Full frequency 5.25′′ × 1
• Coverage Angle

  Horizontal: 105°

  Vertical: 103°

• Audio Algorithm AEC、AGC、ANS、DRC
• Audio Bit Rate

  G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)

  Sampling bit width: 16 bits

• Audio File Format MP3, WAV
• NTP Timing Support
• Broadcast Regular broadcast, live broadcast, emergency broadcast
• Two-Way Audio Support
• Speech Synthesis Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French

• Network Protocol IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
• Interface Protocol (API)ISAPI, ISUP, SIP, RTP,ONVIF
• Client Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone

• Communication Method Support wired network and bluetoothcommunication

• Number of Sub Speaker 24 V, 2.5 A, max. 60W: support 1* 10W sub speakers
• Sub Speaker Connection Method Impedance Input

• Ethernet InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 1
• Local Storage Built-in 4 GB EMMC (Audio file storage is 1 GB.)
• APII SAPI, ISUP, SIP,ONVIF
• Audio In

  3.5 mm audio interface × 1

  Voltage Input × 1，COM 100 V

• Audio Out Fixed resistance output × 1，phoenix terminal，8 Ω
• LED Indicator

  Green light on: normal

  Green light flash: intercom in progress

  Red light on: start or network disconnection

  Red light flash: upgrading

• Reset Support
• Volume Knob Support

• Power 24 VDC/1.5 A
• Material Wooden
• Operating Temperature -10 °C to 50 °C(14 °F to 122 °F)
• Operating Humidity ＜90% (No condensation)
• Dimension 180.6 mm × 156 mm × 280 mm(7.11" × 6.14" × 11.02")
• Package Dimension 355 mm × 265 mm × 240 mm(13.98" × 10.43" × 9.45")
• Approx. 2.5 kg (5.51 lb.)
• Color Black
• With Package Weight Approx. 3.72 kg (8.2 lb.)
• Packing List

  Device × 1

  Adapter × 1

  Screw pack × 1

  Installation sticker × 1

  Regulatory Compliance and Safety Information × 1

• Language 41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
• Bluetooth Bluetooth 5.0, 10 m

• RF

  CE-RED: EN 301489-1 V2.2.3 (BT or 2.4G), EN 301489-17 V3.2.4 (BT or 2.4G), EN 300 328 V2.2.2 (BT or 2.4G), EN62311 2020(BT or 2.4G)

  RCM: EN 300 328 V2.2.2 (BT or 2.4G), AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note

  IC ID: RSS-247(BT or 2.4G)

  ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018

• EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
• Safety

  CB: IEC 62368-1:2014

  CE-LVD: EN 62368-1:2014/A11:2017

• Environment

  CE-RoHS: 2011/65/EU

  WEEE: 2012/19/EU

  Reach: Regulation (EC) No 1907/2006
