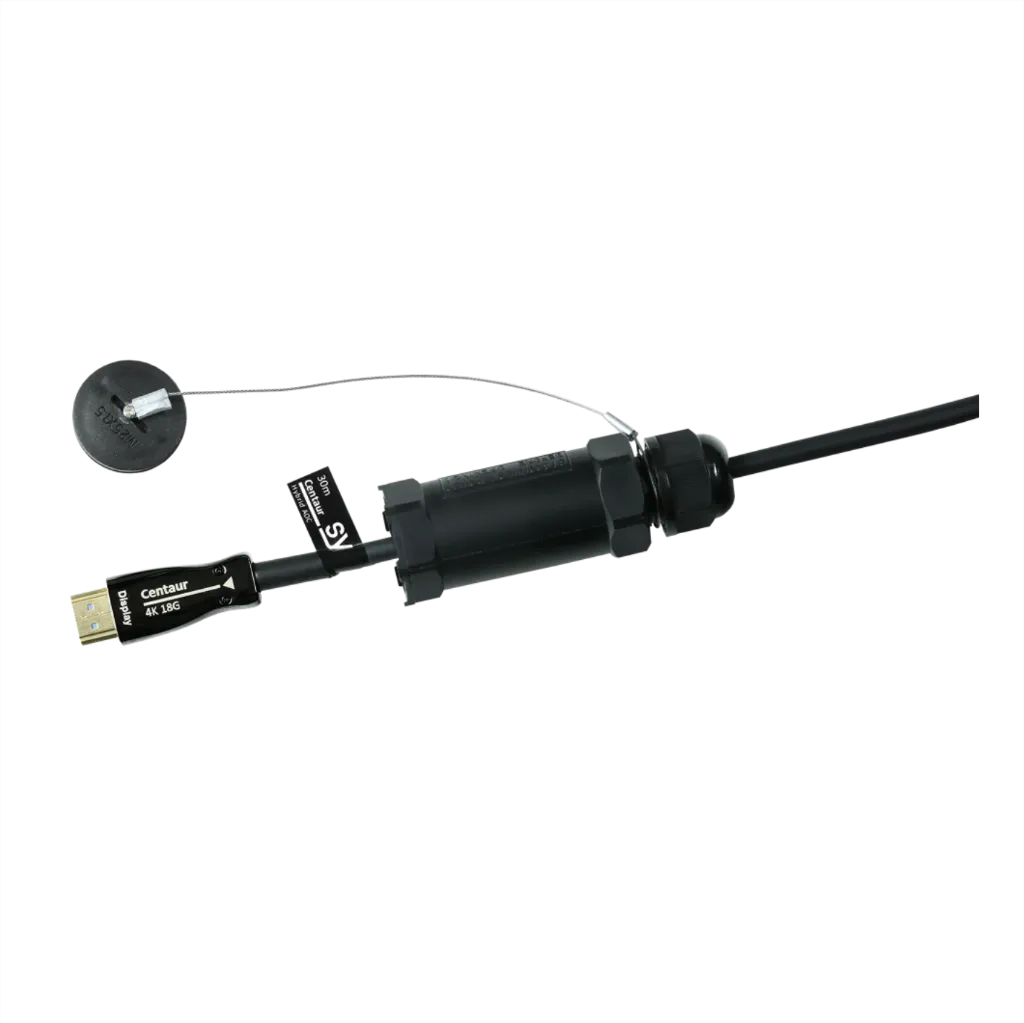

SY, SY-CENTUAR-A75(Centaur-A70?) - 75m Centuar Armoured

CENTAUR - HDMI Armoured AOC Cable

Providing unmatched resilience and durability, our ruggedised Centaur Armoured HDMI AOC (Active Optical Cables) have a bandwidth of 18Gbps and are suitable for sending uncompressed HDMI signals over almost any environment. Providing total immunity from electrical and electro-magnetic interference.

The hybrid design contains a copper pair for power delivery and HPD signalling, whilst the video and audio signals are sent over Fibre Optic Light Pipe, employing VCSEL laser technology.

The cable is powered directly by the HDMI source and does not require any external PSU, providing a stable performance over distances of between 10m and 100m.

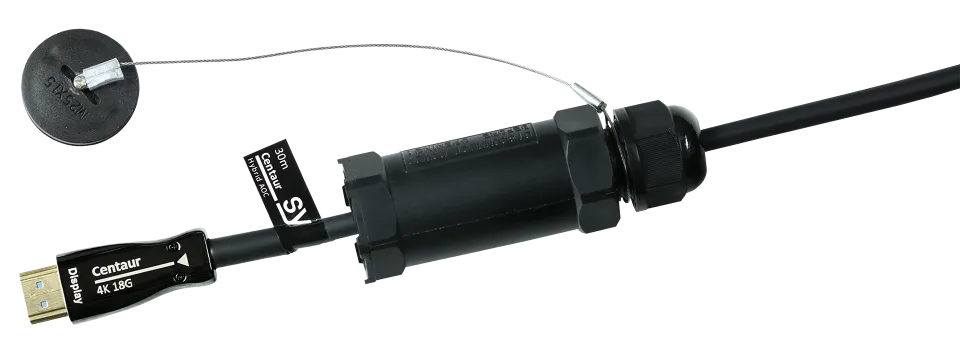

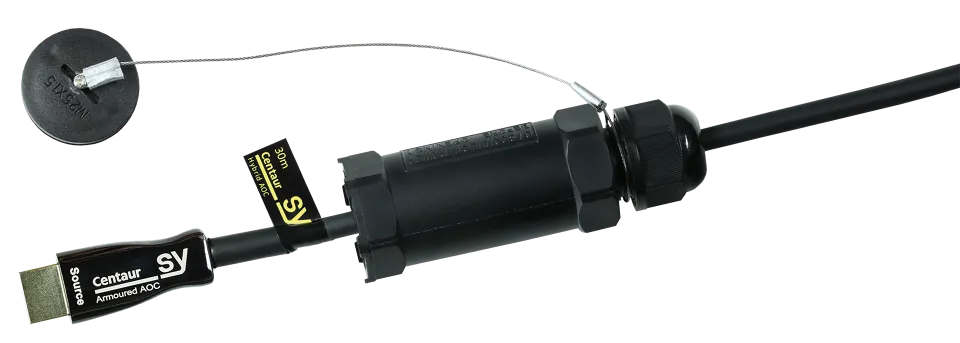

Unidirectional, providing simplified install, with clearly labelled 'source' and 'display' heads.

Centaur Armoured AOCs provide the highest level of armoured protection, with Stainless Steel Spiral covering and Kevlar fibre for added protection.

Suitable for a wide range of environments; in particular commercial, residential and in outdoor live hire/performance. Centaur Armoured AOCs meet the most difficult fire safety standards. Plenum rated CMP (Communications Multipurpose Cable) meaning they can be safely installed above ceiling spaces, below raised floors, in ducts and in service risers.

Features

• Hybrid Copper and Fibre cable
• HDMI 2.0, 4K60 4:4:4 (18Gbps)
• VCSEL chipset ensures signal integrity
• Die cast metal shell head for superior shielding
• Armoured design – Protected with Spiral Stainless Steel covering
• 4.5mm diameter outer sheath, with 25mm bend radius
• 70Kg pull weight
• Powered from source device (no PSU required)
• Help reduce EMI & RFI emissions impacting Bluetooth & Wifi
• Plenum rated - CMP
• Outstanding HDR, 10bit colour depth and 1.07 billion colours
• Plug and Play, reliable HDMI extension
• Lengths: 10m - 100m

PART NUMBER: SY-CENTAUR-AXX

INPUT

Source connector

  1x Metal shell HDMI-male connector for connecting to the source device

OUTPUT

Display connector

  1x Metal shell HDMI-male connector for connecting to the display device

CABLE TYPE

  Hybrid Copper and Fibre cable

  Di-cast metal shell head for superior shielding

  Armoured design – Protected with Spiral Stainless Steel covering

  4.5mm diameter outer sheath, with 25mm bend radius

  Pull weight of 70Kg on connector and 120Kg on cable

  Crush weight of 70Kg

  Plenum rated - CMP

POWER

  Powered from source device (no PSU required)

BANDWIDTH

  18Gbps

HDMI VERSION

   HDMI 2.0,  4K60 4:4:4 (18Gbps)

ELECTRONICS

VCSEL chipset ensures signal integrity

DIMENSIONS

  Available in lengths of 30m to 100m

  4.5mm diameter cable with 25mm bend radius

POWER

Powered from Source device

Part numbers

SY-CENTAUR-A10                10m

SY-CENTAUR-A15                15m

SY-CENTAUR-A20                20m

Stock items:

SY-CENTAUR-A30                30m

SY-CENTAUR-A50                50m

SY-CENTAUR-A75                75m

SY-CENTAUR-A100              100m

WHATS IN THE BOX

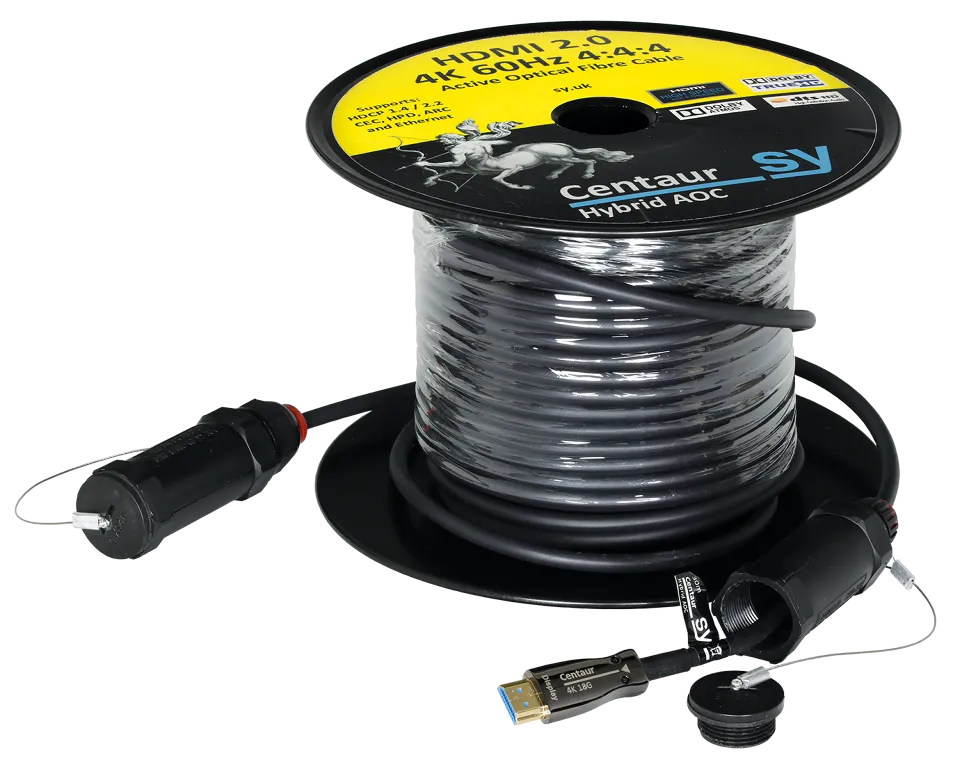

  1x SY-CENTUAR-Axx AOC cable supplied on a reel.
