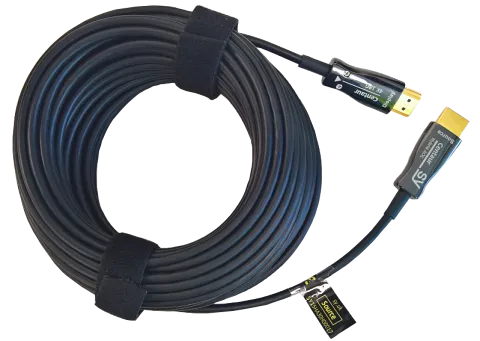

SY, SY-CENTUAR-7.5 - 7.5m Centuar AOC

Centaur - HDMI AOC Cable

Delivering uncompressed 18G HDMI transmission, our Centaur HDMI AOC (Active Optical Cables) have a bandwidth of 18Gbps and are suitable for sending uncompressed HDMI signals, and provide immunity from electrical and electro-magnetic interference. Hybrid design, using advanced fibre-copper hybrid cables.

The copper pair for power delivery and HPD signalling, whilst the video and audio signals are sent over Fibre Optic Light Pipe, employing VCSEL laser technology.

The cable is powered directly by the HDMI source and does not require any external PSU, providing a stable performance over distances from 7.5m up to 100m.

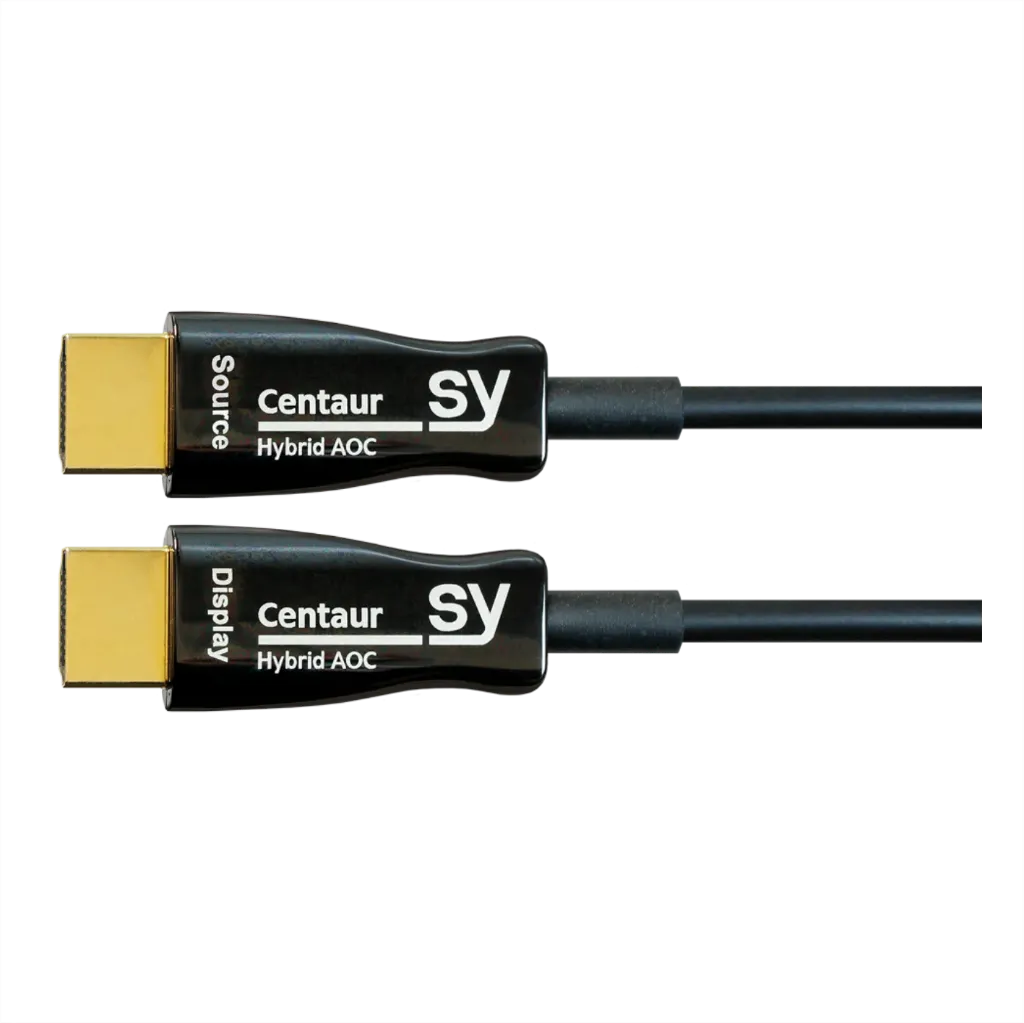

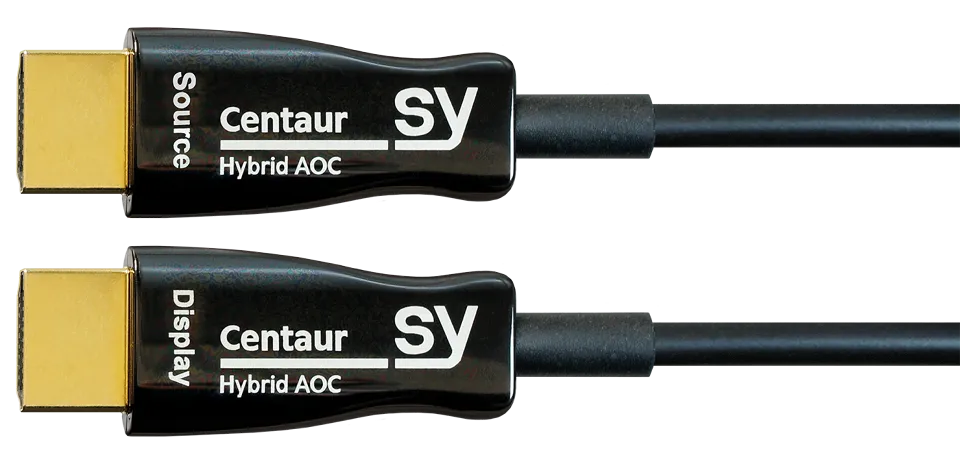

Unidirectional, providing simplified install, with clearly labelled 'source' and 'display' heads.

Suitable for a wide range of applications requiring stable extension of HDMI signals, applications including commercial application, residential, in educational and medical settings, conference rooms and retail signage.

Features

• • Hybrid Copper and Fibre cable
  • HDMI 2.0, 4K60 4:4:4 (18Gbps)
  • VCSEL chipset ensures signal integrity
  • Carries full uncompressed HDMI 2.0 payload (17.8Gbps)
  • Plug & Play, cost-effective HDMI 2.0 extension.
  • Laser Fibre transmission of TMDS lines
  • Die cast metal shell head for superior shielding
  • Help reduce EMI & RFI emissions impacting Bluetooth & Wifi
  • Compact, light and flexible
  • Labelled ‘source’ and ‘display’ for quick long distance HDMI installations
  • 55% lighter than Cat X

  • Cost effective and reliable HDMI 2.0 extension
  • Outstanding HDR, 10bit colour depth and 1.07 billion colours
  • Lengths: 7.5m, 10m, 15m, 20m, 30m, 50m, 75m, 100m

PART NUMBER: SY-CENTAUR-XX

INPUT

Source connector

  1x Metal shell HDMI-male connector for connecting to the source device

OUTPUT

Display connector

  1x Metal shell HDMI-male connector for connecting to the display device

POWER

  Powered from source device (no PSU required)

BANDWIDTH

  18Gbps

HDMI VERSION

   HDMI 2.0,  4K60 4:4:4 (18Gbps)

ELECTRONICS

VCSEL chipset ensures signal integrity

DIMENSIONS

  Available in lengths of 7.5m to 100m

  4.5mm diameter cable with 28mm bend radius

POWER

Powered from Source device

WHATS IN THE BOX

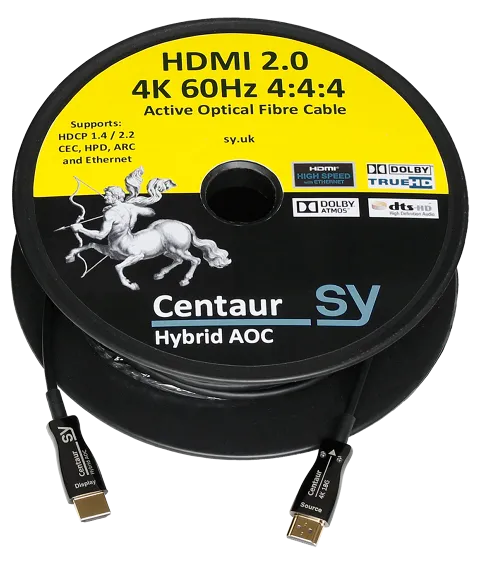

  1x SY-CENTUAR-Axx AOC cable supplied on a reel.

• Bandwidth up to 18Gbps
• Audio Return Channel (ARC)
• HDMI 2.0 4k 60Hz 4:4:4
• Up to 32 audio channels
• Up to 1536KHz audio sample frequency
• Simultaneous delivery of dual video streams to multiple users on the same display
• Simultaneous delivery of multi-stream audio to multiple users (Up to 4)
• Supports 21:9 video aspect ratio
• Dynamic synchronization of video and audio streams
• CEC extensions provide more expanded command and control of consumer electronics devices through a single control point
• Enables transmission of High Dynamic Range (HDR), Dolby Vision™, HLG, Ethernet, CEC
• HDCP 1.4 HDCP 2.2 supported
• Supports 4091x2160, 24 to 60Hz, 4:2:0 to 4:4:4, RGB to 16Bit colour depth
• Lengths 7.5m, 10m, 15m, 20m, 30m, 50m, 75m, 100m
