SY, PS-5V2A-1.3-ILP - In-Line PSU -Multi purpose. IEC Input, IEC output + 1.3mm DC Jack output

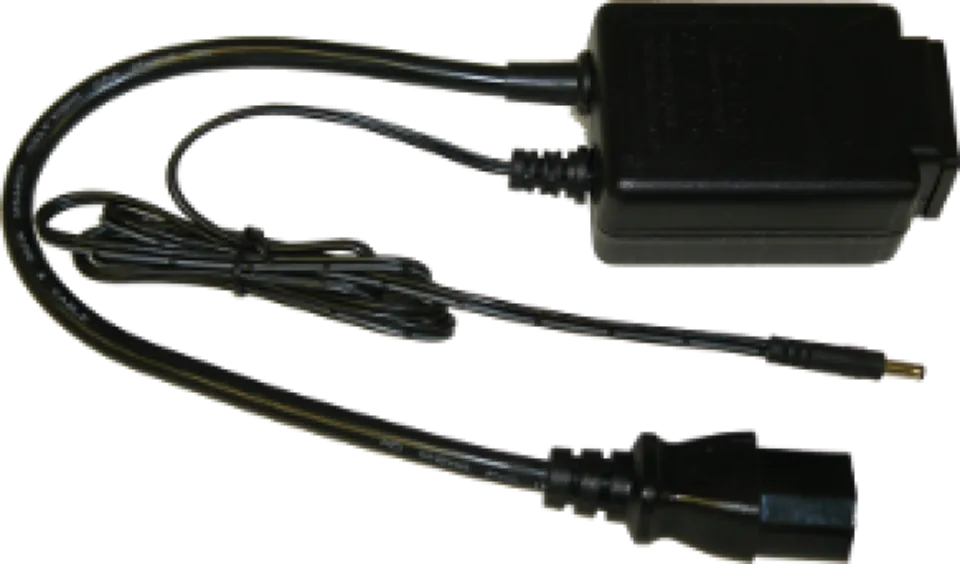

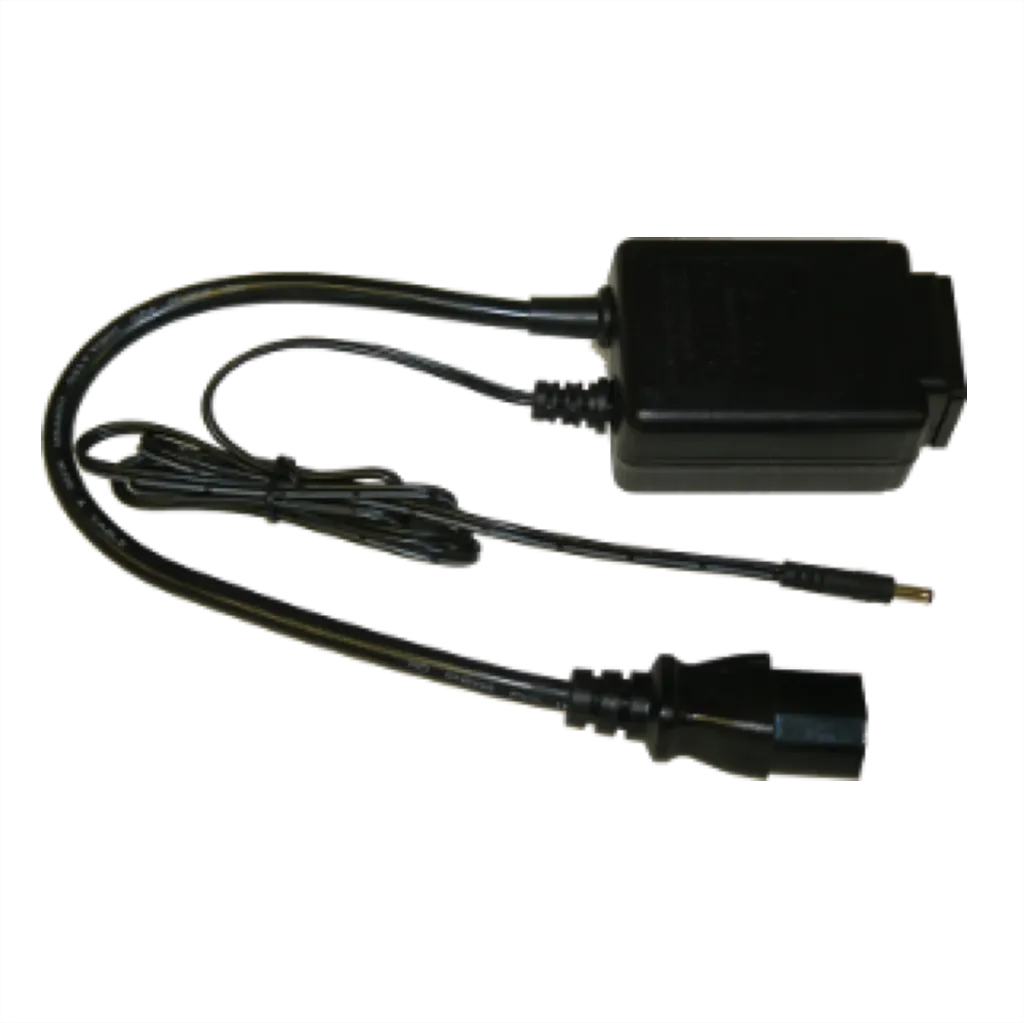

PS-5V-2A-1.3-ILP is an in-line PSU with a 1.3mm DC Jack

Small 5V @ 2A DC PSU with 1.3mm DC jack, an IEC 60320 type C14 inlet and an IEC 60320 type C13 connector on a short cable.

Suitable for all CatX VGA extenders in the CatX AV and AVP ranges.

Simply plug the IEC connector that would normally go to the display to the PSU and attach the IEC connector from the PSU to the power input of the display.

Then connect the 1.3mm 5V DC connector to the CatX receiver and you’re ready to go.

This PSU is especially useful when there is only one power outlet available at the CatX receiver location.

Features

• 5V @ 2A DC PSU
• 1.3mm DC jack
• IEC 60320 type C14 inlet
• IEC 60320 type C13 connector on a short cable.

PART NUMBER: PS-5V-2A-1.3-ILP

Input Voltage Range : 100 – 240 VAC

• Input Frequency Range : 50 / 60 Hz
• Input Current : 0.2A
• Input Connector : IEC 60320 type C14 inlet
• Output Voltage : 5 VDC
• Output Current : 2A
• AC Output Connector : (same voltage/frequency as on input connector) IEC 60320
• DC Output Connector (5V DC @ 2A) : 1.3mm DC jack
• IEC cable length : 290 mm
• 5V DC cable length : 1m
• Dimensions
• 47mm [W] x 72mm [D] x 33mm [H]
