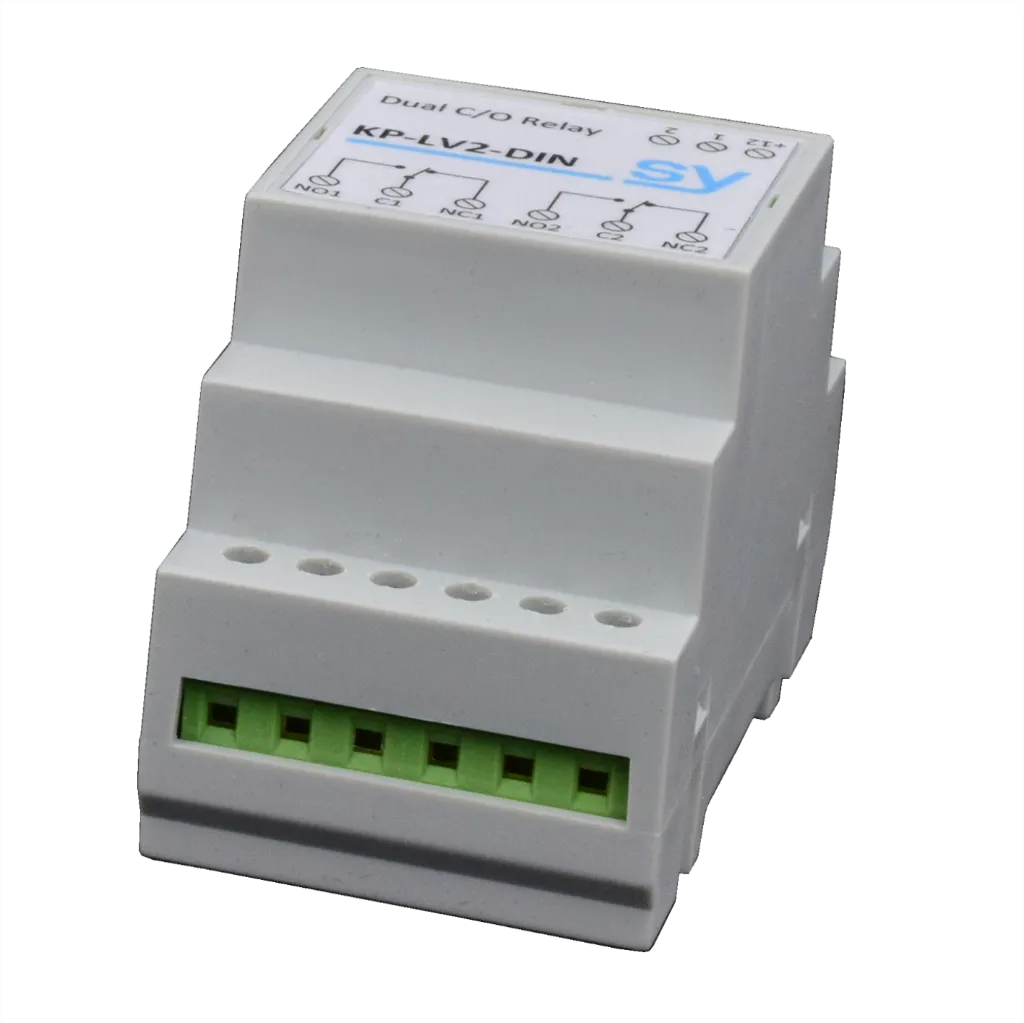

SY, SY-KP-LV2-DIN - Dual Low Voltage Change Over Relay Suitable for switching external lighting/screen controllers

LV2-DIN is a Low Voltage Relay with dual, double throw relay contacts. The two independently controllable relay contacts are powered from separate live connections that can switch up to 12V DC at 20A max.

This robust relay can be controlled directly from the digital outputs of any SY keypad, it may also be used with any control system that can provide either two controllable logic outputs or two voltage-free, normally open contact closure outputs.

Wide Compatibility with a host of control systems

Use with SY Keypads - Relays are controlled directly from the digital outputs of any SY keypad series.

Use with Contact Closures - Can be controlled from remote push button contact closure switches.

Use with Active Low Outputs - Also controllable with other brand controllers equipped with active Low Outputs.

DIN Rail Mount - Comes fitted with a DIN rail mounting fitment.

Suitable for use with one or two devices that require independent 2-way switching circuits, that can act either separately or simultaneously.  The default state can be either normally Open, or Normally Closed, as the 2-way terminals can be connected and used as desired. For use in meetings rooms, presentation spaces, commercial and residential installations.

Features

• Two independent relay circuits
• Easy to fit DIN Rail Mount
• Interfaces directly with SY keypads
• Interfaces with control systems having active low logic outputs
• Interfaces with control systems having voltage-free contact closure outputs
• 12V DC switching contacts at 20A
• DP/DT - Both inputs have independent live feeds, both outputs are 2-way

PART NUMBER: KP-LV2-DIN

RELAY CONFIGURATION FORMAT

  Double Pole, Double Throw Relay – both of the 2-way outputs are controllable independently of each other.

CONTROL INPUTS

Relay Input Voltage

  12V DC

Relay Operating Current

  50mA per relay

OUTPUT CONTACT RATINGS

Low Voltage Output

  12V DC Max

Contact Rating – Resistive Load

  20A @ 12V DC

ENVIRONMENTAL AND PHYSICAL

Operating Temperature Range

  0 ~ 40°C (32 ~ 104°F)

Operating Humidity Range

  10 ~ 90% RH (non-condensing)

Dimensions (L x W x H)

  90 x 53 x 58 – DIN rail mounting

Weight

  86g

Enclosure Material

  Plastic Enclosure

WHAT’S IN THE BOX

  1x SY-LV2-DIN Relay
