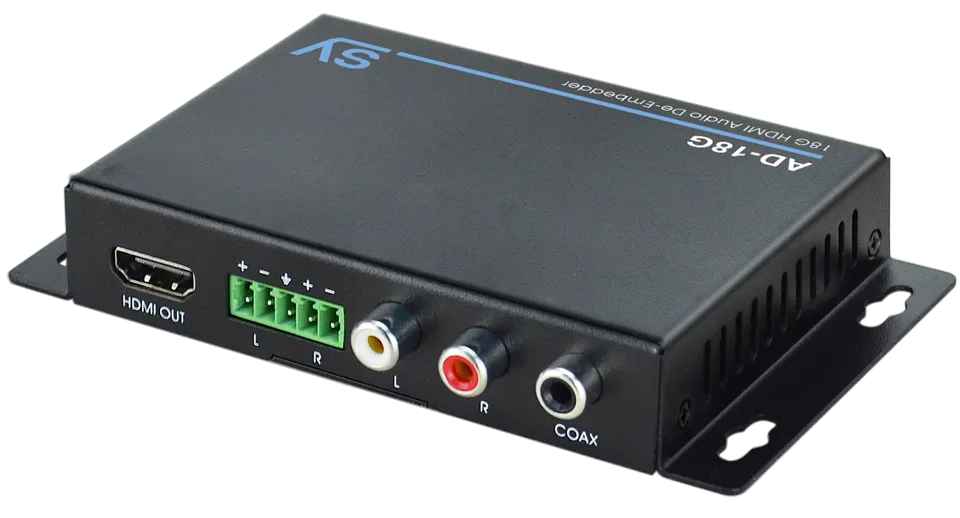

SY, SY-AD-18G - 4K 18 Gbps, HDMI 2.0 Coax S/PDIF, L/R & Balanced Audio Extractor/De-Embedder

The AD-18G is a HDMI 18G de-embedder, compatible with HDMI 2.0, 4K60 4:4:4 (18Gbps), HDR, EDID and CEC pass-through.

In 2Ch mode, it de-embeds the audio simultaneously to all 3 audio outputs (Balance stereo, unbalanced & Coaxial S/PDIF).

In Bitstream mode, the audio is de-embedded only to the Coax S/PDIF.

Although it accepts HDCP 1.4/2.2 on the input, it always outputs HDCP 1.4, to ensure that even legacy equipment can receive a valid signal.

With AD-18g you could divert the Audio signal out to the AVR for Surround Sound processing, while transmitting the Video signal further up the chain and onto the Home Cinema Projector.

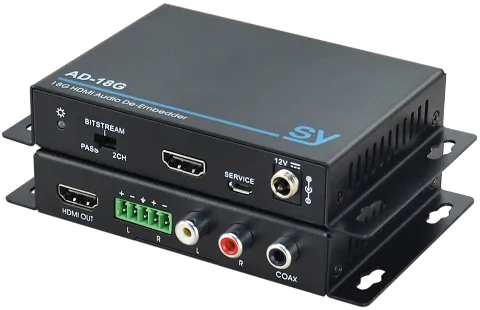

To ease installation, all inputs are on one side, with all outputs on the opposite side.

Mounting brackets are part of the design, to enable fitting to rack shelves, TV brackets, AV credenzas and furniture.

The unit is suitable for mounting behind other equipment, thanks to its compact design and form factor.

The ability to pass 4K signals is imperative in today's world of Hi-Def cinema, therefore, the AD-18G is good choice for connecting up a UHD Blu-ray source via an AVR to a Laser Projector.

Features

• HDMI 2.0, 4K60 4:4:4 (18G)
• Supports HDCP 2.2
• Supports HDR
• Supports CEC
• HDMI HBR (high Bit Rate) supported in PASS mode
• LPCM 2.1, Dolby 2/5.1 and DTS 2/5.1
• Balanced stereo analogue and Coax S/PDIF audio outputs
• Audio De-embed, even when no display connected
• Supported Audio input modes: Pass-through, Bitstream, PCM

PART NUMBER: SY-AD-18G

HDMI VIDEO FORMATS / RESOLUTIONS:

  VESA and SMPTE 480p to 2160p with 3D.

  All HDMI resolutions to 3840x2160p @60Hz 4:4:4 (18 Gbit/s)

  480p@60Hz

  576p@50Hz

  720p@60Hz

  1080p@24Hz

  1080p@50Hz

  1080p@60Hz

  4K@24Hz

  4K@30Hz

  4K@60Hz 4:4:4

  All PC resolutions to 1920x1200@60Hz

HDMI

  HDMI 2.0 – All HDMI versions to 2.0v HDCP Version (Input) 1.4 and 2.2

  HDCP 1.4/2.2 supported on HDMI IN – EDID and CEC pass-through

  HDCP 1.4 only on HDMI OUT

  HDMI HBR (High Bit Rate) supported in PASS mode only

AUDIO

  Balanced L+R Audio via 5 pin phoenix screw terminals

  Unbalanced L+R Audio via RCA Jacks

  Coax S/PDIF

Coax digital audio formats

  PCM 2ch

  Dolby Digital 2 or 5.1ch

  DTS 2 or 5.1ch

  Coax Digital S/PDIF

  Pass-Through, Bitstream and PCM

AUDIO DE_EMBEDDER

  Audio de-embedding works even when no display connected ​

Input Connectors:

  1x HDMI

  1x 2.1mm DC connector

Output Connectors:

  1x HDMI

  1x Balanced L+R Audio 5 pin phoenix screw terminals

  1x Pair L+R Audio RCA Jacks

  1x Coax Digital S/PDIF

POWER

Power Supply

  12V DC @ 1A max.

Power Consumption

  3W max.

PHYSICAL

Operating Temperature

  -10 to +55°C (+14 to +131°F)

Operating Humidity

  10 to 90 % RH (non-condensing)

Weight

  245g

Dimensions (WxHxD)

  129 x 21.5 x 77mm

Case Material

  Steel chassis

WHAT’S IN THE BOX

  1x AD-18G

  1x Affixed wall brackets​

  1x 12V PSU ​

  1x User Manual
