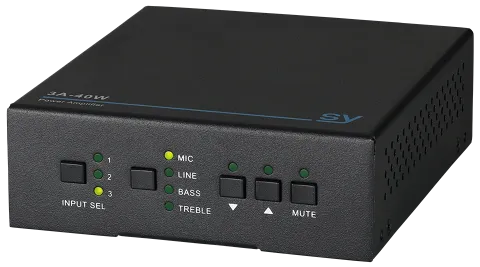

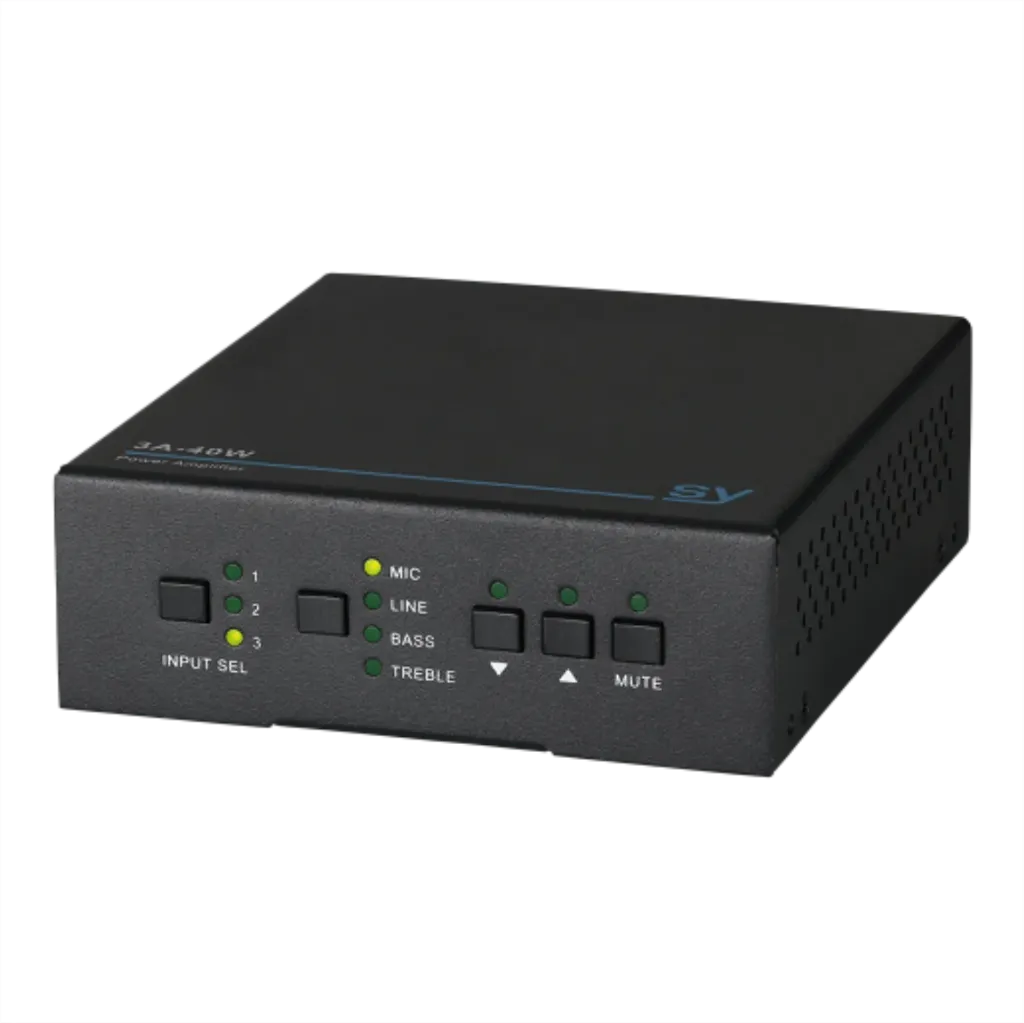

SY, SY-3A-40W - 70/100V Line out Amp

SY-3A-40W is a 40W 70/100V Speaker Line output driver, with 3 Audio inputs + Microphone/Line with Mixer.

Inputs - This Mono Amplifier accepts various input types.

Analogue - L+R analogue inputs via a 3.5mm TRS Jack and also RCA inputs.

Digital Audio – Digital audio via an S/PDIF Optical input.

Microphone /Line -  A Microphone input is complimented by switchable 48v phantom power and is equipped with an ‘Auto Ducking’ feature for professional talk over effect.  This is user selectable via RS232 command.  What does this do?  With auto Ducking enabled, when someone speaks into the Microphone, then it will lower (or Duck) the Level of the Programme Audio from your other inputs.  The Mic input can be set to MIC level with selectable 48V phantom power or set to LINE level.

Internally Summed to Mono - All inputs are summed internally to provide a Mono output, which is rated at 40W.

100V/70V Line Drive Speaker Output – This Amplifier drives a 40 Watt speaker load. For use with 'constant voltage' or 'high impedance' speaker systems that contain a special step-down transformer.

Auto Mute - The unit mutes itself when no audio signal is detected.

Control – Equipped with RS232, Infra Red and Button controls.

RS232 Control - The 3A-40W is controllable by RS232, with Volume Up, Down, Balance and Mute along with Absolute Volume commands for exact and accurate system control.

Infra Red Control – An IR Handset is included

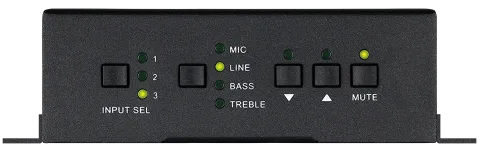

Front Panel Buttons – Button controls for Bass, Treble, Volume adjustments and Input selection.

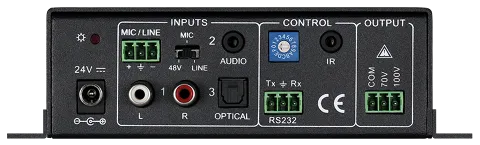

Connections - All connections are on the rear panel via relevant connectors, along with the MIC setting controls.

Rack mountable by using the RS01 accessory shelf

This is an ideal product for either rack installation or fitting into credenzas and AV cupboards as found in many boardroom and classroom equipment installation scenarios.

Features

• Two analogue L+R inputs, 1x Optical digital input plus a balanced MIC/Line input.
• Mono output.
• 40Watts output powering 70V or 100V Line
• RS232 controllable
• Absolute Volume commands
• Balance and Mute commands
• MIC Ducking
• 48V Phantom Power

PART NUMBER: SY-3A-40W

INPUTS

  Audio

  1x Mic/line with switchable 48V Phantom Power

  1x RCA connectors L+R

  1x 3.5mm TRS L/R

  1x TosLink Optical

OUTPUTS

  Audio

  70V/100V Line Drive Speaker output

  Mono

AMPLIFIER

Amplifier design

  70/100V Line Drive Amplifier

Speaker Output

  40W to either 70V or 100V line speakers

Audio Frequency Response

  20 Hz to 20 kHz

Channel Separation

  > 75 dB Input Impedance

Line1 & Line 2 (Analogue)

  10K ohms

Line 3 Input (Optical)

  TosLink Optical Fibre

Input Impedance (Mic/Line)

  10K ohms

CONTROLS

  Input, Volume, Bass, Treble

  Front panel

  IR

  RS232

  RS232 settings: 9600, 8 data bits, 1 stop bit, no parity – No handshaking

POWER

  Power Suply

  24V DC

  Power Consumption

  1.4 W max. (Steady state - No output)

ENVIRONMENTAL

  Operating Temperature 0 - 40 °C non condensing

PHYSICAL

  WEIGHT (net)

  0.270kg

  DIMENSIONS (WHD)

  99 x 39 x 86mm (excluding connectors or flanges)

  Rack mountable by using the RS01 accessory shelf

WHAT’S IN THE BOX

  1x 3A-40W

  3x 3 pin screw terminal connectors (3.5mm pitch)

  1x 24V 3A Power Supply

  1x User manual
