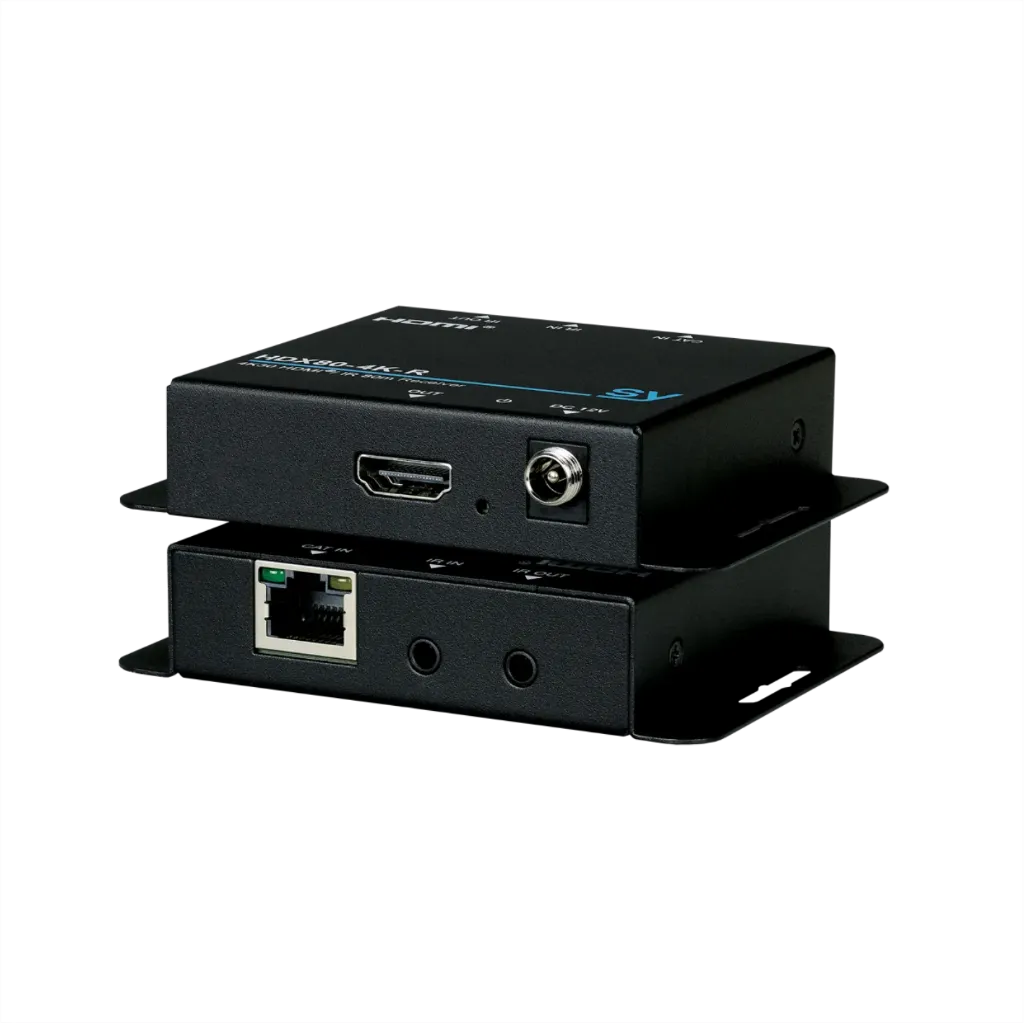

SY, SY-HDX80-4K - 4K Cat5e/6/6a extender to 80m HDMI Loop-out at Tx Bi-directional IR & PoC

HDX80-4K

SY-HDX80-4K – Essential Extender

In line with the core objectives of the Essential range, this HDMI Extender delivers all 4K HDMI transmission formats over distances of up to 80 meters via CAT6 cabling. Featuring a streamlined design focused on high-quality HDMI extension, the HDX80 offers a cost-effective and easy-to-install solution.

HDX technology

HDX is a cutting-edge, low-power, high-performance transmission technology designed to deliver HDMI signals at higher bandwidths over significantly longer distances. Its low power consumption results in reduced core temperatures, aiding device longevity and ensuring consistent, reliable performance, making it a true "fit and forget" solution.

With support for uncompressed 4K30 4:4:4 HDMI signals at distances of up to 80 meters, HDX achieves performance levels typically reserved for much more expensive systems that rely on alternative technologies.

Pro-level features such as:

HDMI Loop Through port – Built-in splitter to feed an extra local HDMI input.

Screw locking power connection. No power interruptions.

PoC – Power from either the TX or RX end.

Inputs and Outputs

HDMI – A single HDMI input along with an HDMI Loop output on the transmitter, and a single HDMI output port on the Receiver.

Infra-Red control ports – The IR Pass Through ports, allow control of source or display devices to and from either end over the CAT cable.

HDCP – HDCP version 1.4

The ideal choice for situations where simple but reliable HDMI extension is needed. For use in Home Cinema, Home Office, Commercial offices, Training Rooms, Lecture Theatres, Education, etc.

Features

• HDMI 1.4, 4K30 4:4:4 (10.2Gbps) or 4K60 4:2:0 at up to 80m
• 1x HDMI inputs, and 1x HDMI Loop output on TX
• 1x HDMI output on RX
• IR Pass Through (including IR emitter & IR receiver buds)
• Locking Power connection
• PoC – Power from just one end (either TX or RX)
• Built-in mounting brackets for rapid installation

PART NUMBER: SY-HDX80-4K

VIDEO RESOLUTIONS/FORMATS

  Up to 4K inc. 4096x2160P 30Hz 4:4:4, 3840x2160P 30Hz 4:4:4,  1920x1080P 60Hz, 1920x 1200p 60Hz

Supports

  HDCP, CEC, 3D

  PCM 2.0, LPCM 5.1, 7.1 Channel audio

HDMI

  Version 1.4

HDCP

  Versions 1.4

Bandwidth

 10.2Gbps

INPUTS

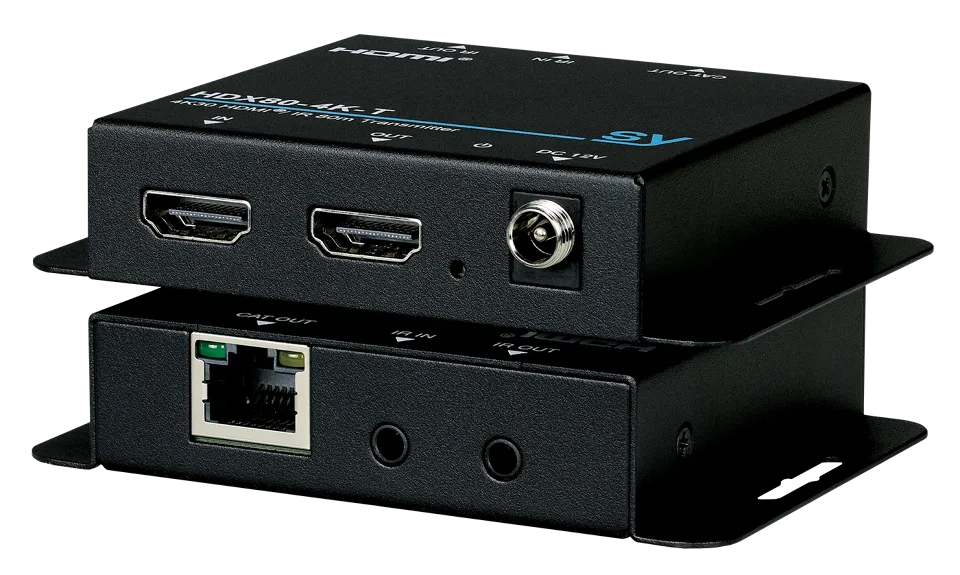

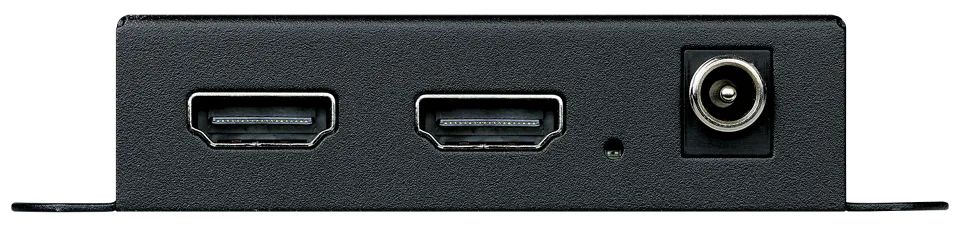

TX

  1x HDMI type A Input

  1x HDMI type A Loop Output

  IR In

  IR Out

  12V DC Power

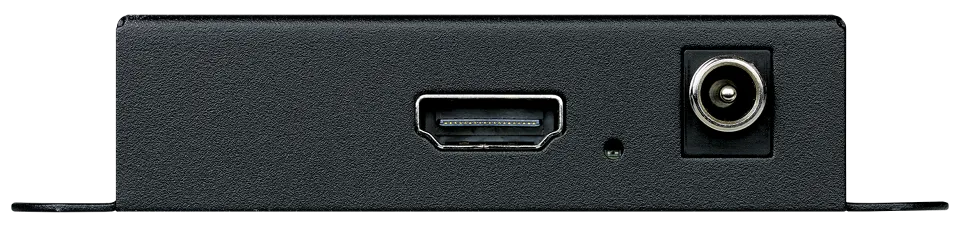

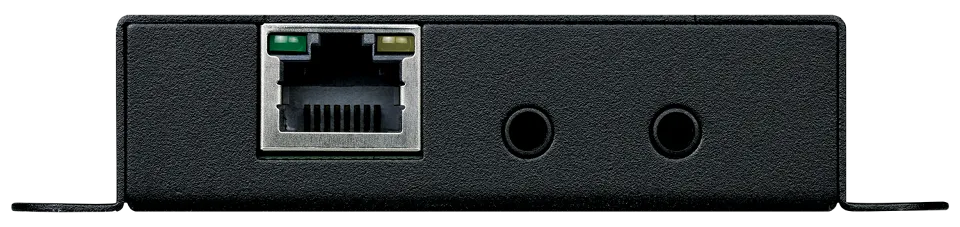

RX

Video

  1x HDMI type A Output

  IR In

  IR Out

  12V DC Power

POWER

Power Supply

  12V 1A DC

Power Consumption

  3.2W Max

PHYSICAL AND ENVIRONMENTAL

Weight (net)

  TX:  162g

  RX:  159g

Dimensions (WHD)

  74 x 20 x 68mm TX

  74 x 20 x 68mm RX

  97 x 20 x 68mm TX Inc mounting brackets

  97 x 20 x 68mm RX Inc mounting brackets

WHAT’S IN THE BOX

  1x SY-HDX80-4K-T – Transmitter unit

  1x SY-HDX80-4K-R – Receiver unit

  1x IR emitter (1.5m cable)

  1x IR wideband receiver (1.5m cable)

  1x User Manual

  1x 12V/1A international locking power supply
