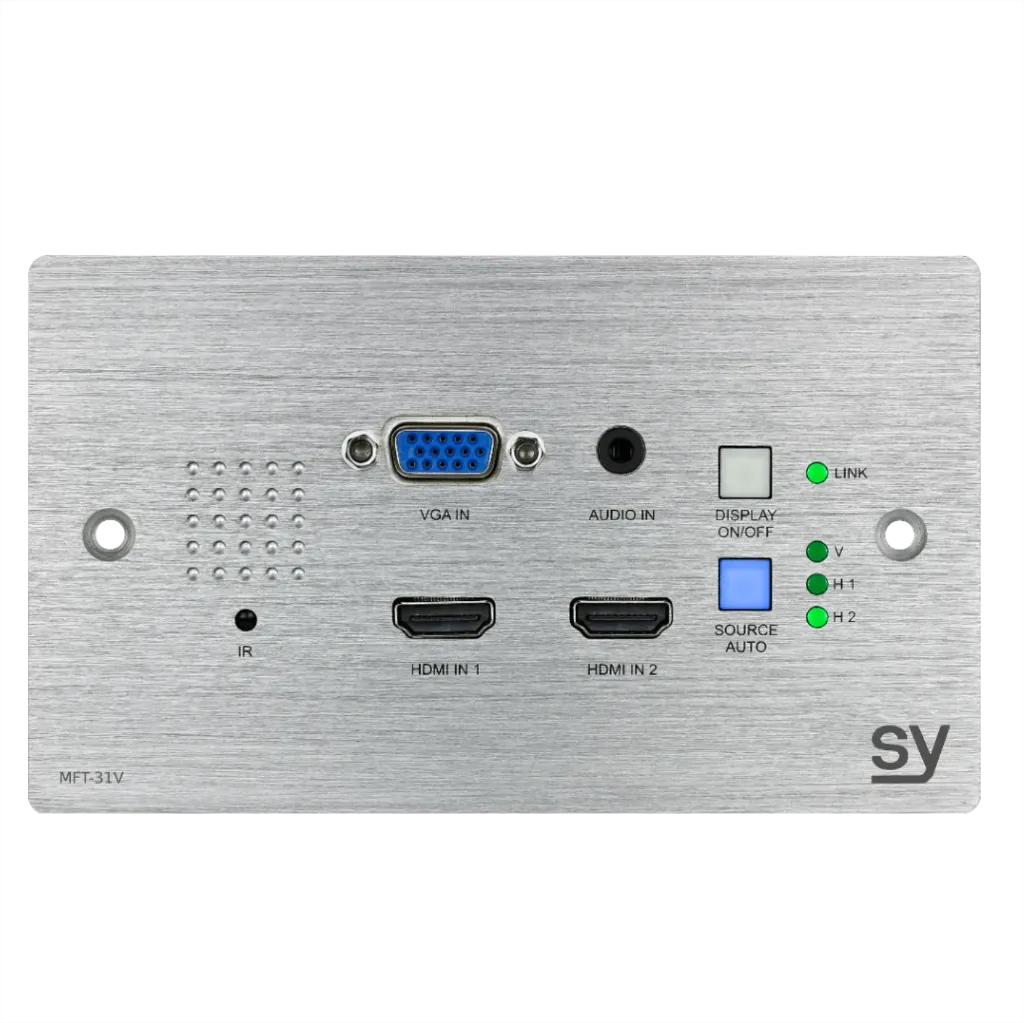

SY, SY-MFT-31V - 4K UHD Wall-mounted Multi Format HDBaseT extender

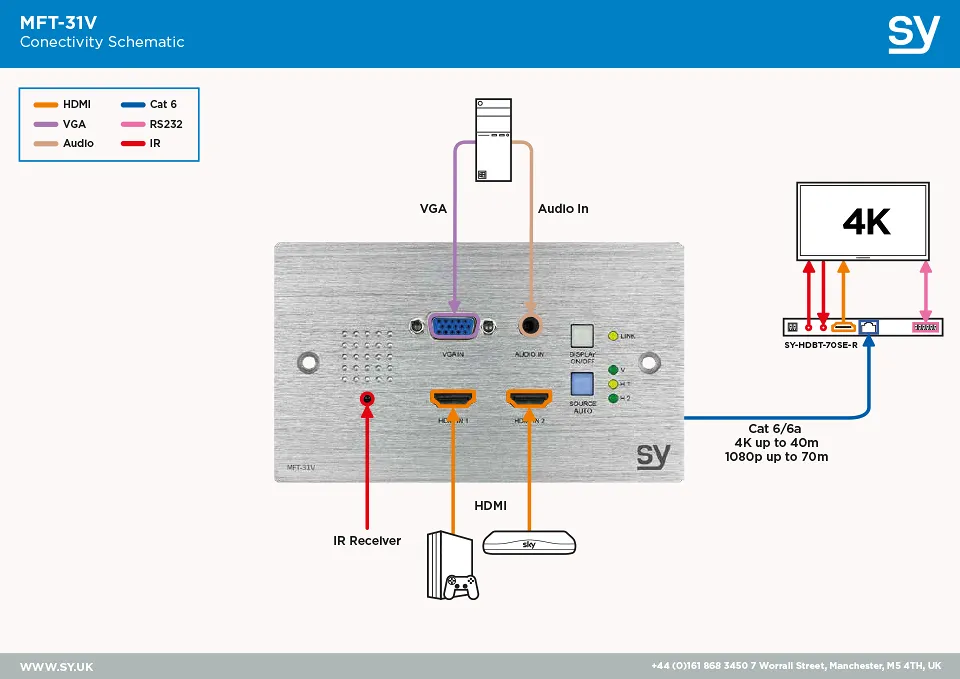

MFT-31V is a feature packed Muti-format wall-mounted HDBaseT Transmitter with a VGA and 2x HDMI inputs.  The HDMI or VGA video signals can be selected (Auto/Manual) and extended to 70m @ 1080P or 40m @ 4K30 using a single cat6 cable.  The HDBaseT output can be scaled (up or down) over a range of resolutions up to 4K30, with full control of HDCP up to 2.2, along with using an extensive choice of built in EDID or the connected display EDID.

The remote display can be turned ON/OFF (Auto/Manual) upon video detection or push-button, using RS232, or CEC.  The SY-PCTools utility program simplifies customisation of parameters such as display ON/OFF commands, OFF command delay, EDID and HDCP management etc.

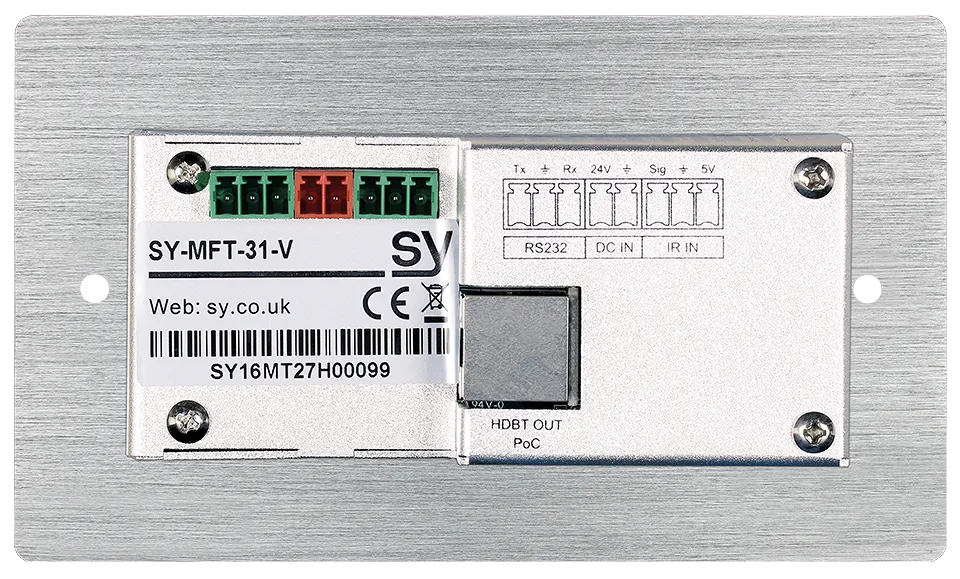

The pass-through RS232 port is also used for setup as well as control/monitoring of the unit.  Both a remote and a built-in IR sensor are provided for extra flexibility.

PoC (Power over Cable) facility ensures installation flexibility, as only a single PSU is required to power both the transmitter and receiver units.  The Slim70-R is an optimal HDBaseT Receiver choice.  The MFT-31C is also available in white finish. Designed to fit into a Standard UK double gang back box. (A USB C input version is available - MFT-31C, USB-C & 2x HDMI inputs).

Many customers use this solution as a standard fit into podiums and multiple meeting rooms within a large venue complex, further offering an easy to use and consistent way of connecting users' devices to in-room displays with minimal effort.  Fit and Forget.  MFT31 units are the perfect choice for use in classrooms, meeting rooms or board rooms where a laptop, mobile or similar devices require accessible connection.

Features

• HDMI inputs (2)
• VGA + L/R Audio
• Up/Down Scaler to 4K30
• HDBaseT output
• 40m @ 4K30 or 70m @ 1080p
• HDCP control
• RS232 control and pass-through
• Built in IR Eye (Pass-through)
• Auto/Manual input selection
• Auto/Manual Display On/Off control
• Bi-directional PoC

PART NUMBER: SY-MFT-31V

Video Inputs

  2x HDMI

  1x VGA + L/R Audio

Audio Inputs

  L/R 3.5mm Stereo Jack - 20Hz – 20kHz, 1.5Vrms max

VIDEO RESOLUTIONS/FORMATS:

  VESA and SMPTE up to       2160p with 3D

  All HDMI resolutions up to    3840x2160 @ 30Hz 4:4:4 / 60Hz 4:2:0

  All PC resolutions up to        1920x1200 @ 60Hz

Output Scaling

  1024x768 @60Hz        1280x720 @50Hz         1280x720 @60Hz

  1360x768 @60Hz        1600x1200 @60Hz       1920x1080p @50Hz

  1920x1080p @50Hz    1920x1080p @60Hz     3840x2160 @30Hz

HDMI

  1.4

BANDWIDTH

  10.2Gbps

HDCP

  1.4, 2.2, Cascade mode

MAXIMUM HDBaseT RANGE

  40m - 4K30 4:4:4

  70m - 1080p60

CONTROL

  RS232

  IR

  Front Panel buttons

  Auto-Switching

  CEC

RS232 communication settings:

  2400,  4800,  9600(Default),  19200,  38400,  57600,  115200 bps

  8 data-bits   No parity   1 stop bit   No handshaking

POWER

Power Supply

  24V DC @ 1.25A via 2 pin phoenix screw terminal connector

Power Consumption

  5W max. (excluding HDBaseT Receiver)

Environmental

Operating Temperature

  -10 to +40°C (+14 to +104°F)

Operating Humidity

  10 to 90 % RH (non-condensing)

PHYSICAL

Weight (net)

  0.245kg

Dimension (WHD)

   146 x 86 x 43mm

Case Material

  Aluminium

Finish

  Brushed Aluminium

WHAT’S IN THE BOX

  1x MFT-31V

  2x 3 pin phoenix screw terminal connectors

  1x 24V DC 1.25A PSU with UK and EU plug adapters

  1x User’s Manual
