SY, SY-MFT62 - 4K UHD, 6 Input / 2 Output Multi-Format Switcher, with HDMI and HDBaseT outputs

MFT62  is a compact 4K UHD, 6 Input, 2 Output Multi-Format Switcher, with independently matrixed HDMI and HDBaseT outputs. This unit is also available as the ‘MFT62-SET’ which is also supplied with our ‘Slim70 Pro’ HDBaseT receiver. This device is well suited for use in auditoriums, public venues, and conference/meeting rooms.

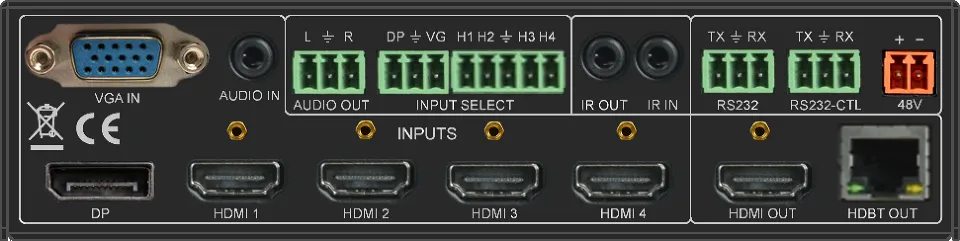

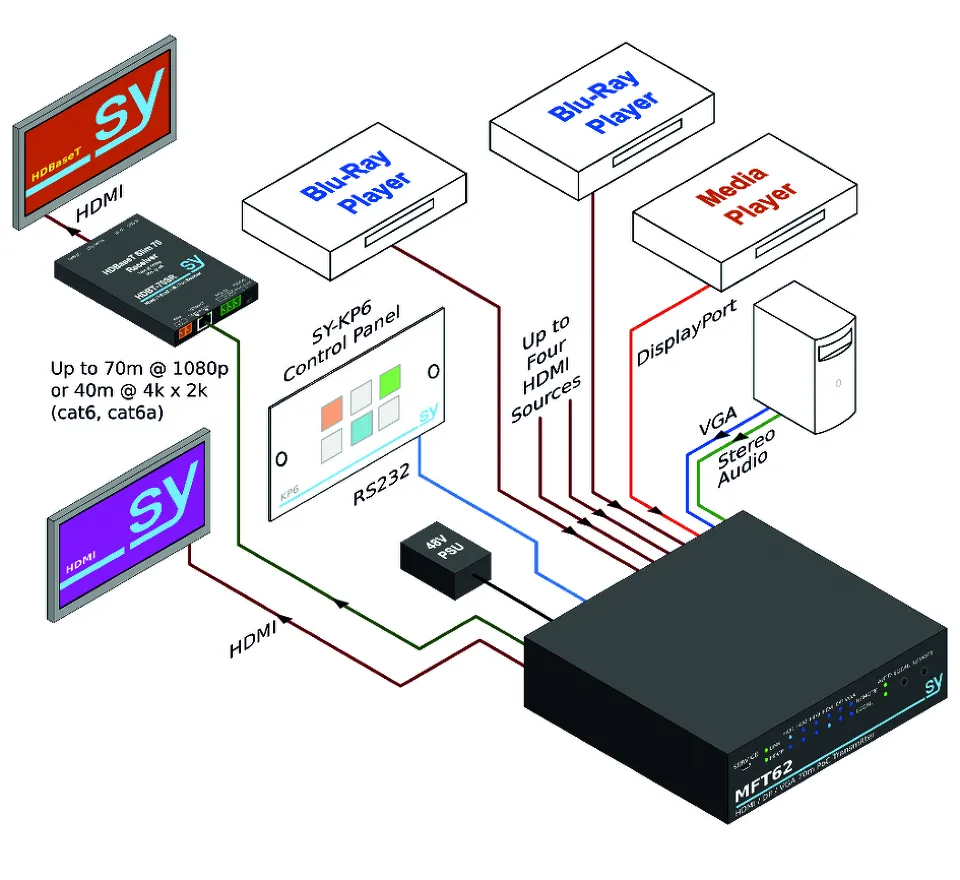

Inputs and Outputs - The 6 inputs consist of 4x HDMI, 1x VGA + Audio, 1x  Display Port input.  Outputs consist of 1x HDMI and 1x HDBaseT output.  When used with an HDBaseT receiver such as the  ‘Slim70 Pro’  it can transmit 1080p signals to 70m, and 4K signals to 40m using a single Cat 6 cable.

Audio output – Audio can be de-embedded via an analogue output using the 3x pin phoenix terminal connectors. By default the audio is matched to the HDBaseT output, but can be changed to match the HDMI output by sending an RS232 command to the unit.

Matrix Switching - Any source can be routed to either or both of the outputs as required

Control – A choice of front panel buttons, IR, RS232 or external contact closures enable control over the unit.  Control over the HDBaseT link is bi-directional, with the ability to control the display from the source location and the source from the display location.  Infra-Red input and output ports are fitted to the rear of the chassis.

Auto Switching – Manual or Automatic source selection is controlled by front panel buttons or RS232 commands.

Contact Button Terminals – Rear mounted contact closure terminals are provided for connection of remote contact button panels.

Source Status – The status of selected inputs can be read from the front panel mounted LED indicators

EDID – Extensive control is afforded by selecting one of the 24x built-in EDIDs, or you can choose to read an EDID from a connected display and stored onto one of the 3x user programmable EDID memory positions.

Features

• Inputs - 4x HDMI, 1x DisplayPort, 1x VGA inputs
• Outputs - Independent HDMI and HDBaseT Matrix outputs
• HDBaseT PoC powers remote Slim 70 Receiver
• HDBaseT output to 70m @1080p or 40m @4K30
• Auto input switching and monitor on/off options
• Control: Front Panel, Bi-directional IR, RS232, contact closure
• Independent RS232-CTL for device control
• L/R de-embedded audio
• Extensive EDID Management

PART NUMBER SY-MFT62

VIDEO RESOLUTIONS/FORMATS

HDMI Video Input/Output

  VESA and SMPTE 480p to 2160p (4K UHD) with 3D.

  All resolutions to:-

  4096x2160p @60Hz 4:2:0 8bit

  3840x2160p @30Hz 4:4:4 8bit

  All PC resolutions to 1920x1200

VGA Video Input

The following VGA resolutions are supported:-

  800x600      1024x768    1280x768   1280x800    1280x1024

  1400x1050  1600x1200  1920x1080  1920x1200

HDMI Audio Input/output

  Pass through of all HDMI audio formats including:-

  Dolby D (TrueHD)  DTS (HD-Master Audio)  PCM Channel count: 2.0 to 7.1

  Sample rates:-

  32 kHz  44.1 kHz  48 kHz  88.2 kHz  96 kHz  176.4 kHz  192 kHz

INPUTS

VIDEO

  4x HDMI 2.0

  1x DisplayPort

  1x VGA

AUDIO

  1x 3.5mm analogue stereo for VGA IP

OUTPUTS

VIDEO

  1x HDMI 2.0

  1x HDBaseT (IPoC)

AUDIO

De-embedded Audio out

  Analogue L+R

  PCM 2.0 channel audio (from HDBT output) extracted onto 3 pin Phoenix connector.

  Stereo L/R  0.7V Rms – 20Hz-20KHz

BANDWIDTH

  10.2Gbps

HDCP

  Compatible with all versions up to 2.2

EDID MANAGER

  EDID data and manual EDID management

CONTROL

  IR, RS232, Front Panel Buttons, Remote Contact closure terminals

POWER SUPPLY

  48V DC max.

POWER CONSUMPTION

  14.4W (inc. a powered HDBT RX)

WEIGHT

  0.860kg

SIZE (WHD)

  164 x 40 x 145mm

MFT62

WHAT’S IN THE BOX

  1x MFT62

  1x Wall power supply with UK and EU plug adaptors

  1x User’s Manual

Also available as the ‘MFT62-SET’

MFT62-SET

WHAT’S IN THE BOX

  1x MFT62

  1x SY-HDBT-70-SE-R

  1x Wall power supply with UK and EU plug adaptors

  1x User’s Manual
