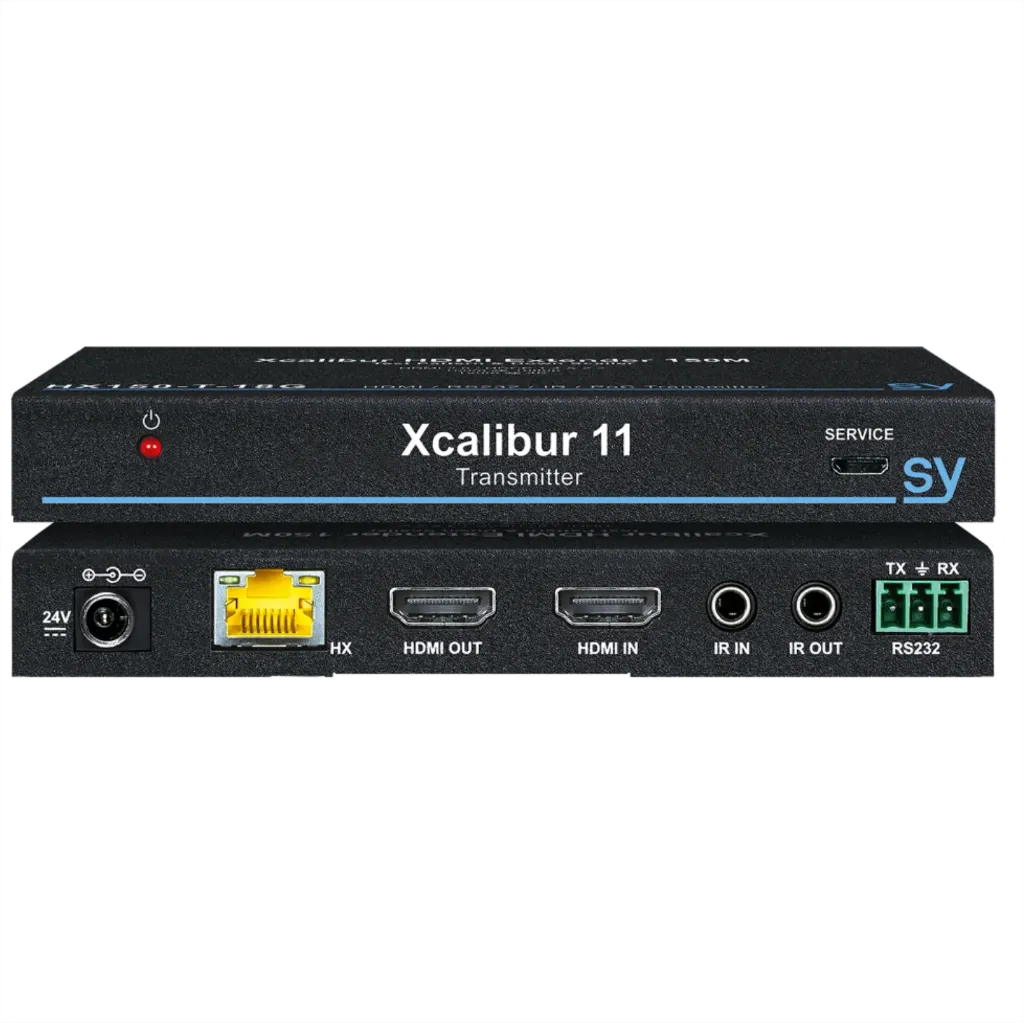

SY, SY-HX150-11-18G-T - Xcalibur 11 4K 18G 150m Transmitter. HDMI local loop out (Includes 1x PSU)

Xcalibur 11 - HDMI Extender using HX Technology

Xcalibur matrices from SY Electronics, featuring HX technology, present a dependable and cost-effective solution for effectively handling high bandwidth video distribution, forming a reliable hub in sectors including Education, Residential, Offices/Meeting Rooms and Commercial.

This amazing Extender can extend HDMI 2.0 (4K60 4:4:4) signals to 120m and 1080p signals to 150m. It supports HDR, HDR10, HDR10+, HLG and Dolby vision, as well as HBR, and all sound formats to 7.1 channels.

The Xcalibur-11 Transmitter unit also has an HDMI Loop-out, whilst the Receiver unit provides De-embedded Audio output. The system is feature rich, with some diagnostic tools amongst its other useful features, such as: Bi-directional IR, RS232 Pass-Through, RS232 Control, Down Scaling, Test Pattern Generator, VKA, PoC, HDCP and EDID management. In addition, the Receiver unit has an analogue Audio De-embed Output.

Long Range transmission - It will transmit HDMI 2.0 video signals to 150m @1080p or 120m @4K60 4:4:4 over a Cat6 cable, utilising T568B wiring standard.

HDR - The Xcalibur product range supports HDR, HDR10, HDR10+, HLG and Dolby vision.

Down Scaling - The Transmitter unit has a built in Down-Scaler that may be used in either Auto Mode (default) or selected manually.  4K signals can be scaled down to 1080p while retaining the Refresh Rate, (frame rates are always preserved). As an example, a 4K source can be displayed on a 1080p display automatically while in Auto mode.

The HDMI loop-out is a Pass-Through port, and as such is not affected by the Scaler.

HDCP Control - Support and ‘Management of HDCP’ ensures compatibility. The HDCP can be set independently for the HDMI Input, HDMI Loop Out and HX outputs. You can convert from HDCP 2.2 down to HDCP 1.4, or simply put the unit into Cascade Mode - No more HDCP issues.

EDID Management - As well as pass-through, there is a user programmable EDID memory option. The choices include ‘Use EDID from User memory’, ‘Use EDID from HDMI output’ or ‘Use EDID from HX output’.  This facility can ensure the video source is optimised to suit the installation.

Test Pattern Generator - We have equipped this Professional device with an on-board ‘Test Pattern Generator’ complete with a choice of 6 Test Patterns including Checkerboard or Solid Colour Patterns, at 4K@60, 4K@30, 1080p@60. Perfect for commissioning or checking all the component parts from the transmitter to the display.

VKA - The ‘Video Keep Alive’ option, maintains video output whenever the input video is lost. This function can be very useful, particularly when used with projectors, which may otherwise shut down and then run a long cool down sequence. The unit can output a currently selected Test Pattern to prevent the display device from powering down. By default, it is in 'VKA OFF mode'.  Other options include ‘VKA Timed mode’ with a user programmable time-out interval of up to 4 hours long or maintained indefinitely until input signal is resumed.

Audio Support - Pass through of audio signals up to 7.1 channels for connection to a surround sound system with an HDMI input.

Audio De-embedder - The Receiver unit has Audio De-embedding available via a 3.5mm jack as stereo analogue audio.

Control - The Xcalibur-11 is equipped with pass-through bi-directional IR ports and an RS232 pass through port. The Transmitter/Receiver units can also be controlled through the USB interface, to adjust the various parameters.

CEC - The device will pass through all CEC commands between input and output.

PoC - (Power over Cable) Only one 24V PSU is required to power both Transmitter and Receiver units, from either end.

Features

• HDMI 2.0 (18Gbps) 4K60 4:4:4 in and out
• HDMI Loop-out + HX outputs
• 1080p to 150m, 4K60 to 120m over single cat6 cable
• HDR, HDR10, HDR10+, HLG and Dolby vision
• Down Scaler – 4K to 1080p
• Bi-directional IR
• RS232 pass-through and control
• CEC pass-through
• Audio Analogue De-embedder
• EDID and HDCP Control/management
• Test Pattern Generator – Various patterns
• VKA (Video Keep Alive)
• PoC – Power from either end

PART NUMBER: SY-HX150-11-18G

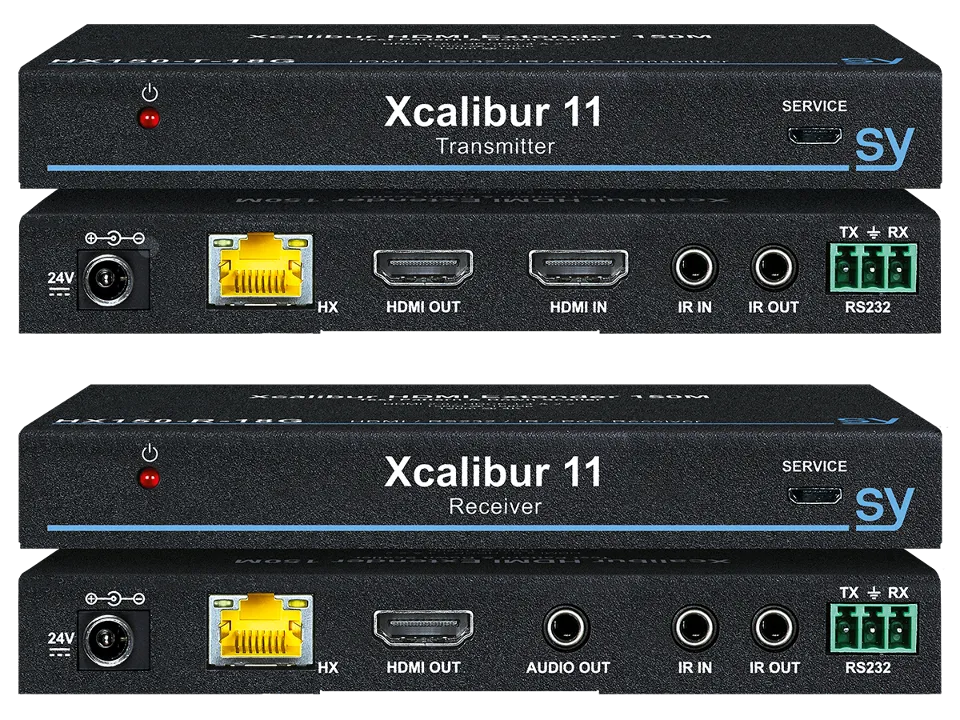

Xcalibur-11 Set (Transmitter and Receiver)

Transmission Distance

  1080p to 150m, and 4K to 120m, using cat5e/6/6a/7

  PoC (24V) on all HX outputs

HDMI VERSION

  Input: HDMI 2.0 (18 Gbps) -  HDR, HDR10, HDR10+, HLG and Dolby Vision Formats supported

  Output: HDMI 2.0 (18 Gbps) - HDR, HDR10, HDR10+, HLG and Dolby Vision Formats supported

HDCP COMPLIANCE

  Input HDCP: Accepts all versions up to HDCP 2.2

  Output HDCP: Fully controlled – Pass through, 1.4, 2.2, Cascade mode

RESOLUTIONS / FORMATS

Input resolutions:

  All HDMI and PC resolutions up to 4K2K 60Hz 4:4:4

Colour Space:

  Pass through of RGB, YCbCr 4:4:4, 4:2:2, 4:2:0

Colour Depth:

  8, 10, 12 bits

SCALER

Down-Scaling (Resolution):

  4K inputs scaled down to 1080p

AUDIO

Audio Formats Supported:

  2.0 / 2.1 / 5.1 / 7.1 channel LPCM, Dolby, AC3, DTS

De-embedded Audio out: (Receiver)

  3.5mm Jack Socket - Analogue Stereo (L/R)

CONTROL

IR In, IR Out –

  Universal, 25-60 KHz carrier frequency

RS232 Pass-through –

  Tx, Rx – Any baud rate to maximum of 115200~

RS232 Control

  USB Service Port Settings

  115200 baud, 8 data bits, 1 stop bit, no parity - for all control commands through the USB Service Port.

CONNECTORS

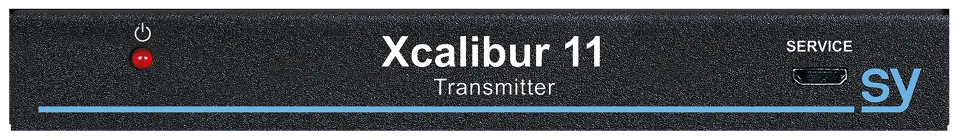

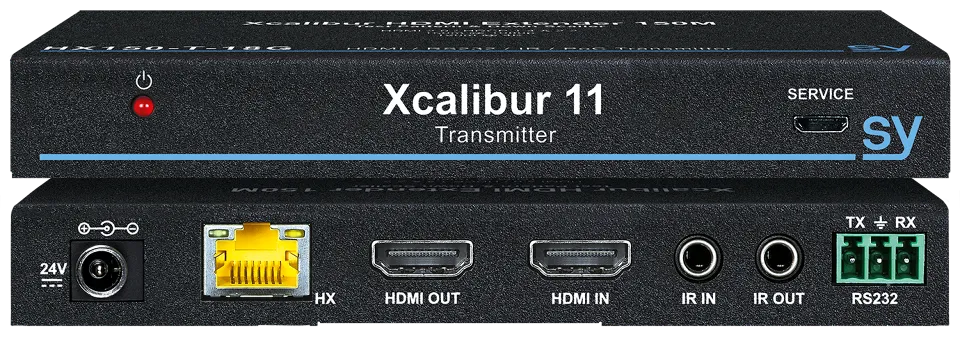

SY-HX150-11-18G Transmitter

  1x Micro USB for configuration or update

  1x RJ45 HX Output

  1x HDMI Output – Loop output to local display

  1x HDMI Input – Input from the Source device

  1x 3-way Screw Terminals for bi-directional RS232 pass through

  1x 3.5mm TRS IR Input

  1x 3.5mm TRS IR Output

  1x 24V DC Power input (2.1mm barrel jack)

SY-HX150-11-18G Receiver

  1x Micro USB for configuration or update

  1x RJ45 HX Input

  1x HDMI Output – To display device

  1x 3.5mm TRS Audio Output – Analogue Stereo L/R Audio

  1x 3-way Screw Terminals for bi-directional RS232 pass through

  1x 3.5mm TRS IR Output

  1x 3.5mm TRS IR Input

  1x 24V DC Power input (2.1mm barrel jack)

POWER

Power Consumption:

  2.75W – Transmitter

  7.25W – Receiver

  10W max. (Transmitter + Receiver)

Power Supply:

  24V 1.0A DC - (2.1mm barrel jack)

ENVIRONMENTAL

Operating Temperature Range:

  0 ~ +40C (32 ~ 104F)

Operating Humidity Range:

  10 ~ 90% RH (Non-condensing)

PHYSICAL

DIMENSIONS (WDH) Each unit:

  140 x 65 x 18mm

WEIGHT (net) Each unit:

  250g

WHAT’S IN THE BOX

  1x SY-HX150-11-18G T

  1x Pairs of mounting plates

  1x 3-way Screw Terminal Connectors

  1x IR Emitter

  1x IR Receiver

  1x 24V 1A Power Supply

  1x User manual
