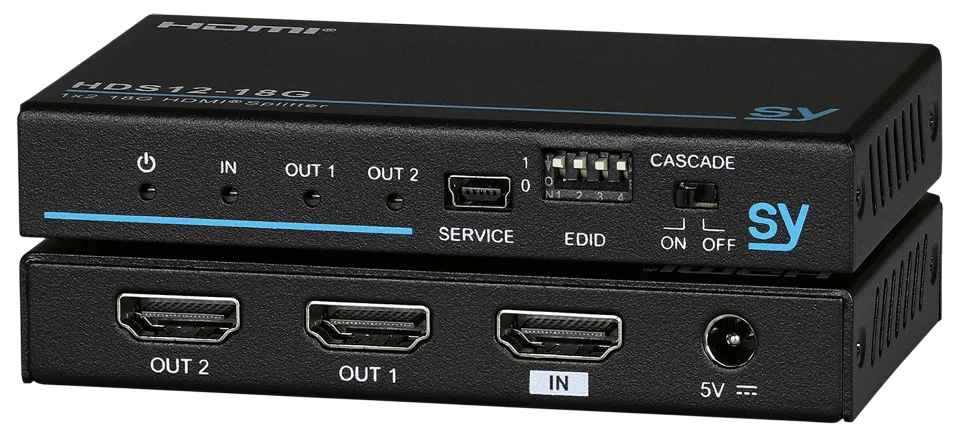

SY, SY-HDS12-18G - Slim 1:2 HDMI 2.0 Splitter 18Gbps (DA)

HDS12-18G is an HDMI Splitter offers a straight forward and reliable 1:2 video distribution solution with added features.

4K Resolution – The HDMI 2.0 ports are capable of handling all resolutions up to 3840 x 2160 @ 60Hz 4:4:4 and support HDCP 2.2.

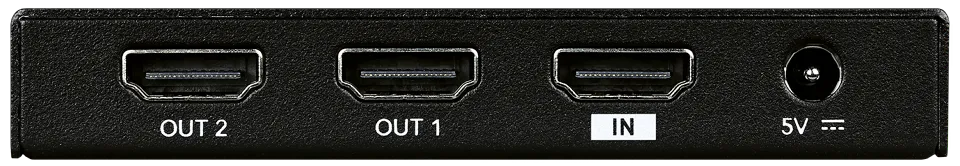

For use where a '1 in x 2 out' HDMI signal is needed, it is designed with a slim profile, and thereby enables it to be concealed and remain inconspicuous when placed alongside other equipment, with all HDMI and Power connectors located on the rear panel, to aid in providing a neat installation.

As well as its main function as a DA, it also has extra functions, as can be expected from SY Electronics devices.

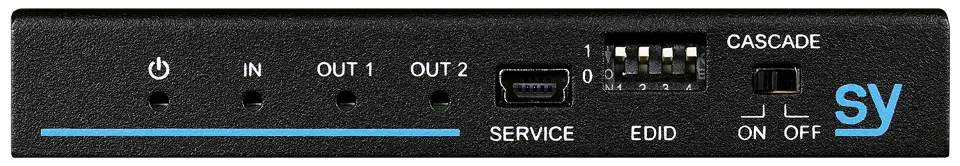

EDID and HDCP Management – The front panel contains the EDID DIP switches and the handy HDCP selector switch to enable Cascade mode.

HDR – Full HDR capability, allowing uncompromised distribution of high-quality content.

Audio Formats – This will also handle several audio formats such as 2 channel PCM, Dolby/DTC 5.1 and LPCM 7.1.

Automatic Down Scaler – Each HDMI output is independently capable of automatic down scaling from 4K to 1080P, ensuring a mixture of 4K and 1080p displays/projectors can be connected to different outputs, without the need for any additional scaling equipment.

Power AOC Cables – The HDS12-18G has been designed to accommodate the expanding growth of hybrid AOC cables. Each output can provide a maximum of 500mA, which thereby gives enough power for up to AOC cables (We recommended the SY Centaur AOC Fibre cables), thus achieving distances of up to 100m @ 4K, 18G, 4:4:4.

They are ideal for use with an HDMI signal needs to split, including digital signage, conference rooms, educational establishments, home cinema and home office setups.

Features

• 1:2 HDMI Splitter
• HDMI 2.0 18G (4K60 4:4:4)
• HDCP 1.4/2.2/2.3 Compliant.
• Supports HDR and 3D
• Supports multiple audio formats
• Independent Automatic Down Scaling from 4K to 1080p on all ports
• Outputs can power AOC cables
• HDCP control
• EDID management

PART NUMBER: SY-HDS12-18G

RESOLUTIONS / FORMATS

  VESA and SMPTE 480p to 2160p (4K UHD) with 3D.

  All PC VESA mode video format resolutions up to QSXGA @60Hz

  All resolutions to: 3840x2160p @60Hz 4:2:0 to 4:4:4 /10/12/16bit

HDMI VERSION

  2.0

HDCP COMPLIANCE

  1.4 and 2.2

BANDWIDTH

  18Gbps

VIDEO

  Video input:

  1x HDMI 2.0

  Video outputs:

  2x HDMI 2.0

CONTROL

  HDCP cascade mode:

  via front panel switch

  EDID management:

  via front panel dip switches

POWER

  Power supply

  5V DC, 1A

  Power consumption

  1.9W max.

ENVIRONMENTAL

  Operating Temperature Range:

  0 ~ +40°C (32 ~ 104F)

  Operating Humidity Range:

  20 ~ 90% RH (Non-condensing)

PHYSICAL

  Dimension (WHD)

  100 x 16 x 55mm

  Weight (Net)

  165g

WHAT’S IN THE BOX

  1x HDS12-18G

  1x Wall power supply with UK and EU plug adaptors

  1x User Manual
