SY, SY-HDS41-18G - 4x1 SLIM HDMI 2.0 (18G) 4 Port switcher. Control: Push button, IR, RS232, Auto Switch

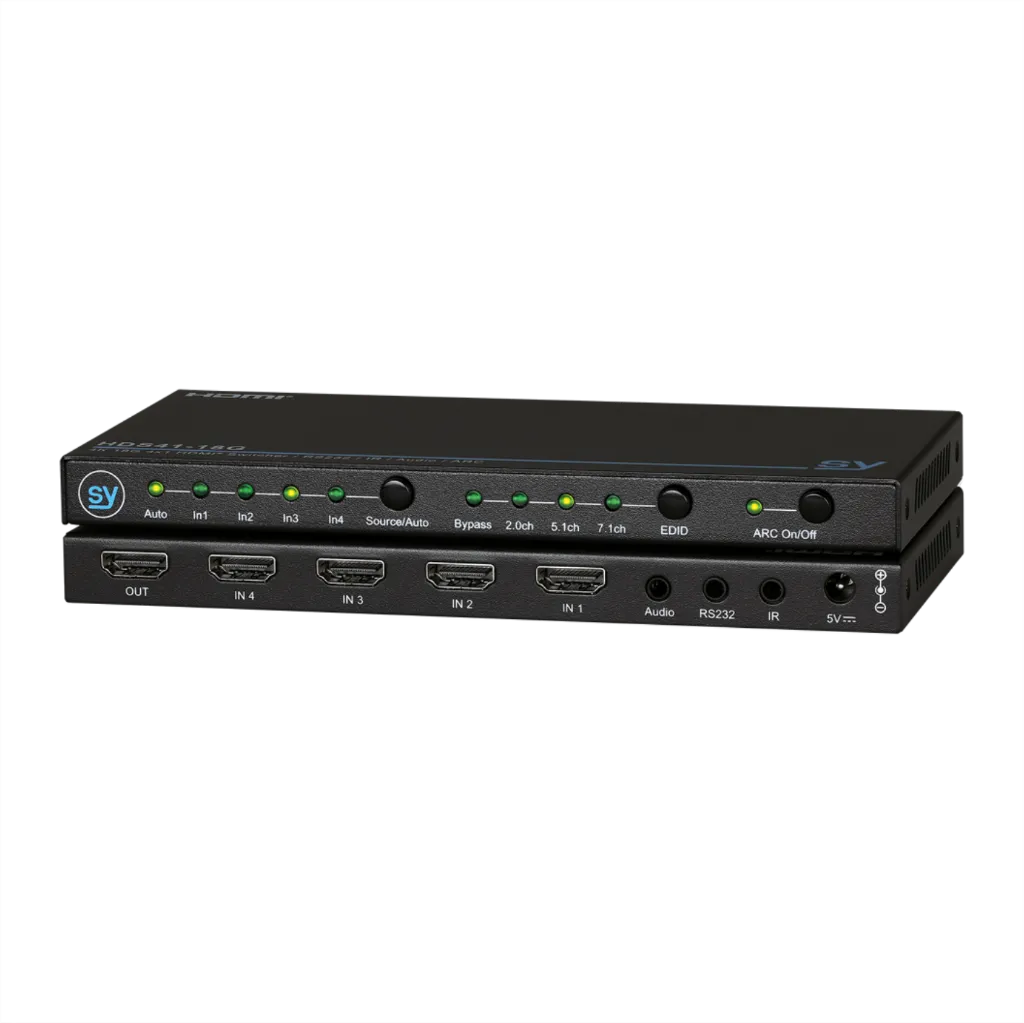

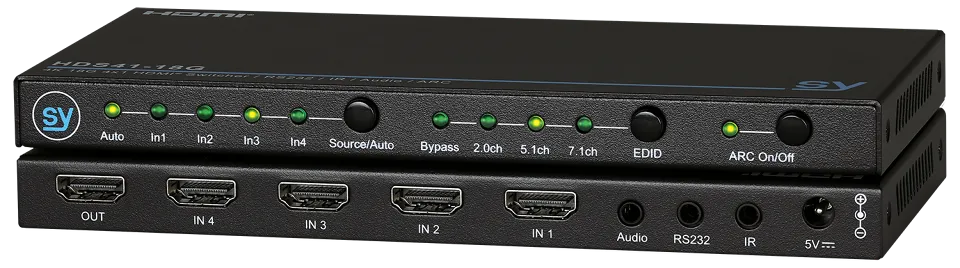

SY-HDS41-18G - 4K 18G HDMI 4x1 Switcher

4x Input HDMI Switcher with De-Embedded Audio, ARC, EDID and HDCP support.

This switcher is useful for switching up to four HDMI sources to a single display device.

HDMI 2.0, HDCP 2.2 and CEC compliant. With support for 3D, Deep Colour and HDR.

Inputs and Outputs - HDS41-18G has four HDMI 2.0 18G Inputs and a single HDMI 2.0 18G Output.

Control - The switcher can be controlled manually from the front panel, from the included IR remote controller, or via the RS232 interface.

Auto & Manual Switching - A high quality video switcher with both manual and auto selection modes. Whilst in Auto Mode, whenever a new HDMI input is detected, it is automatically selected and will switch to that source, by detecting the 5V from the recent HDMI device.

CEC – Pass through of all CEC commands from input to Display.

EDID - Choose between onboard EDID presets, or read the EDID of a connected display. Full EDID management via Serial commands, and quick EDID Audio settings via front panel button or the IR remote.

HDCP – Serial commands let you choose HDCP version 1.4, 2.2 or Cascade mode.

Audio De-embedding – A De-embedded audio signal can be returned back from the Display to the Audio output. Both Analogue Stereo and Digital Toslink audio formats output via the same 3.5mm TRS combo jack.

An ideal choice for situations where multiple HDMI inputs need to be routed to a single display with the added ability to receive back the audio from the display to an AVR, a soundbar or other Audio playback system. For use with Home Cinema, Home Office, Training Rooms, Work Office, Education etc.

Features

• HDMI 2.0, 4K60 4:4:4 (18Gbps) switcher

• 4x HDMI inputs, and 1x HDMI output

• De-embedded L/R audio – Analogue & Digital Out

• Auto/Manual selection options

• Extensive EDID management

• Control: Front panel, IR, RS232

PART NUMBER: SY-HDS41-18G

VIDEO RESOLUTIONS/FORMATS

  Up to 4K 60Hz 4:4:4

 Supports

  3D, HDCP and CEC

HDMI

  Version 2.0

HDCP

  Versions 1.4 , V2.2 & Cascade mode

Bandwidth

  18Gbps

INPUTS

Video

  4x HDMI type A

OUTPUTS

Video

  1x HDMI type A

Audio

HDMI audio out:-

  L-PCM 2.0, 5.1 & 7.1 Dolby 5.1, DTS 5.1, Dolby True-HD, DTS-HD audio.

Audio De-embedding -

  via 3.5mm TRS combo jack:-

  L+R Analogue 0.775Vrms line level output

  Digital Toslink L-PCM 2.0, Dolby 5.1, and DTS 5.1,

  (ARC) Audio Return Channel to Audio output.

CONTROL

  RS232

  Push Button

  Auto Switch

  IR Infra Red Remote control included (uses a CR2032 3V button cell battery).

POWER

Power Supply

  5V DC

Power Consumption

  5W Max

PHYSICAL AND ENVIRONMENTAL

Weight (net)

  0.365g

Dimensions (WHD)

  180 x 15 x 84mm

WHAT’S IN THE BOX

1x SY-HDS41-18G

1x User Manual

1x 5V/1A PSU

1x RS232 cable – DB-9 to 3.5mm jack

1x IR Remote Controller

1x IR Eye – needed for IR control

1x 3.5mm Jack to TosLink adapter

2x Mounting ears
