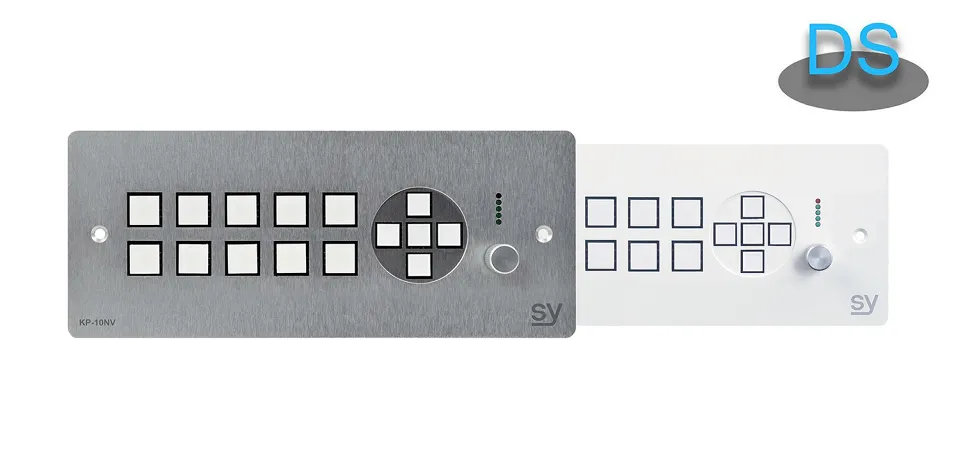

SY, SY-KP10NV-BW - UK 10 button Keypad Controller with navigation keys and rotary volume control. White

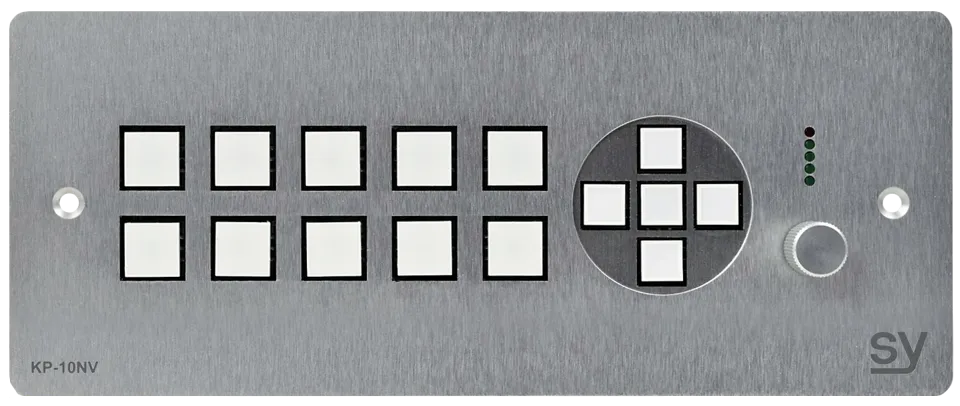

KP10-NV-BA

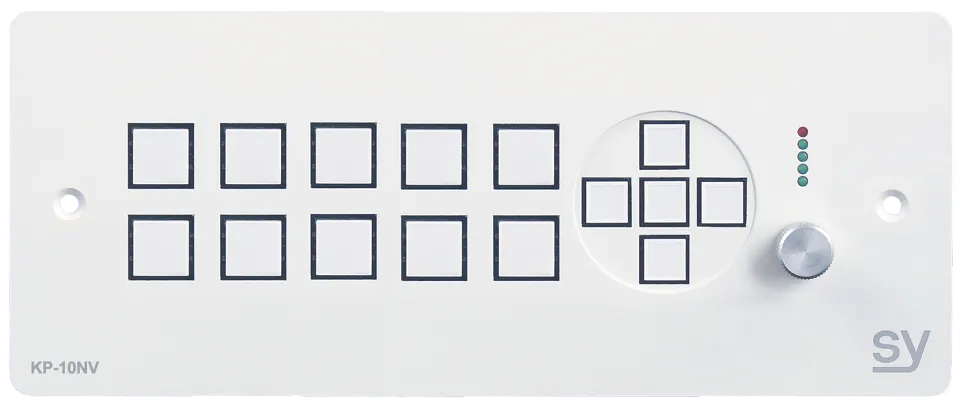

KP10-NV-BW

KP10-NVE-BA

KP10-NVE-BW

The KP10-NV series offer a convenient and reliable point of control, simple to use and easy to install keypads for a wide range of room control purposes, including media displays and associated equipment control. Available with or without Ethernet.

The KP10-NV and KP10-NVE feature a host of connection ports: 4 bi-directional ports assignable as RS232 or IR, 2 Inputs ports, eg; detect sensors for motion, room dividers etc. and 2 Output ports – for control of displays, amplifiers, relay units etc.

The clean front facia has 10 buttons plus navigation keys, a rotary dial and LED bar. Buttons feature a tri-colour LED to allow feedback colour or state to be programmed, or change on receipt of information back from the bi-directional serial ports. Each button can be programmed to perform multiple functions, replacing the need for multiple handsets, whilst providing a permanent singular point of control, with no external power source required.

Ethernet (E) models allow for configuratuin through Web GUI, programming over IP – download the project configuration files and update firmware over IP.

Absolute Volume – over IP provides a definitive audio volume level with feedback directly on the Keypads with Rotary Volume Control.

Wake On LAN – support for devices with embedded systems prior to Power Up.

Macro functions – create and run a named Macro in addition to button controls.

Real-time Feedback – the bi-directional serial and Ethernet ports bring actual device status to the Keypad and Web GUI in real-time.

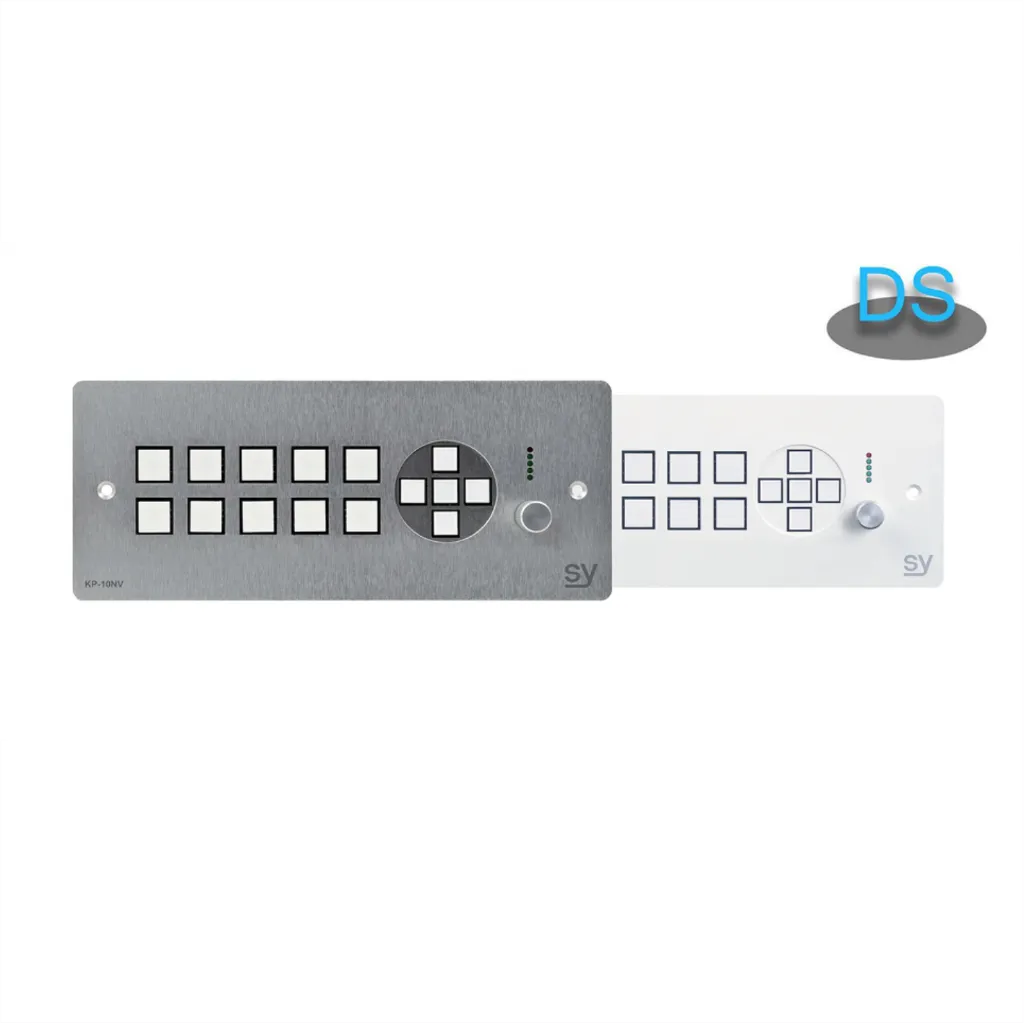

The KP10-NV series is available in a white or brushed aluminium finish and with European or UK faceplate screw holes, and fits standard UK and European size back boxes.

Features

• 10 + 5 Push Buttons
• 4 Control ports – bi-directional RS232 or IR (software configurable)
• 2 Inputs ports – for detect sensors for motion, room dividers etc.
• 2 Output ports – for control of displays, amplifiers, relay units etc.
• Easily Programmable with new NebulaStudio® software
• Ethernet allows network of devices – up to 10 devices controllable from a single Ethernet Keypad Controller
• Multiple actions per button – create macros for intuitive control
• Tri-colour LEDs – allows device state changes to be indicated
• USB-A programming port – provides power whilst uploading or downloading
• 8 levels per button
• Power Up and Timeout
• Panel and Button Lockout
• Conditional Scripting based on real device state
• Time Delays
• Built-In ASCII/HEX Converter
• Back box compatibility for UK and Euro standards

Backlight LEDs: Tri-Colour RGB

  Control: Types – IR and Bi-directional Serial RS232

  Control: Ports – 4

  Control: Connectors – 3.5mm captive screw 3 pole Transmit, Receive, Ground

  Control: Serial Comms – +/-9V

  Control: Baud Rate – 1200 to 115200

  Control: Protocol – Data Bits 7 or 8, 1 or 2 Stop Bits, Parity None, Odd, or Even

  Control: Ethernet – 10/100

  Digital Inputs: Ports – 2

  Digital Inputs: Connectors – 3.5mm captive screw 3 pole Input 1, Input 2, Ground

  Digital Inputs: Voltage Range – 0-24VDC

  Digital Inputs: Input Impedance – 10K ohms

  Digital Inputs: Threshold L to H – 1.5VDC

  Digital Inputs: Threshold H to L – 1.2VDC

  Digital Outputs: Ports – 2

  Digital Outputs: Connectors – 3.5mm captive screw 3 pole +V, Output 1, Output 2

  Digital Outputs: Type – 100mA sink from 24VDC max

  Program: Port – USB

  Program: Control Software – SY Device Suite

  Power: Connector – 3.5mm captive screw 2 pole

  Power: Range – 6-24VDC

  Power: Consumption – 400mA max

  Thermal: Cooling Type – Convection

  Thermal: Dissipation – 16.4BTU/hr max

  Compliance: CE, FCC

  Warranty: RTB – 2 years

  PSU: 12V/1A

DIMENSIONS (WHD)

   208 x 86 x 18.3 mm

WHAT'S IN THE BOX

  Power Supply

  Fixing Screws

  Button Insert Legend Sheet

  Getting Started Guide

  PSU : 12V/1A
