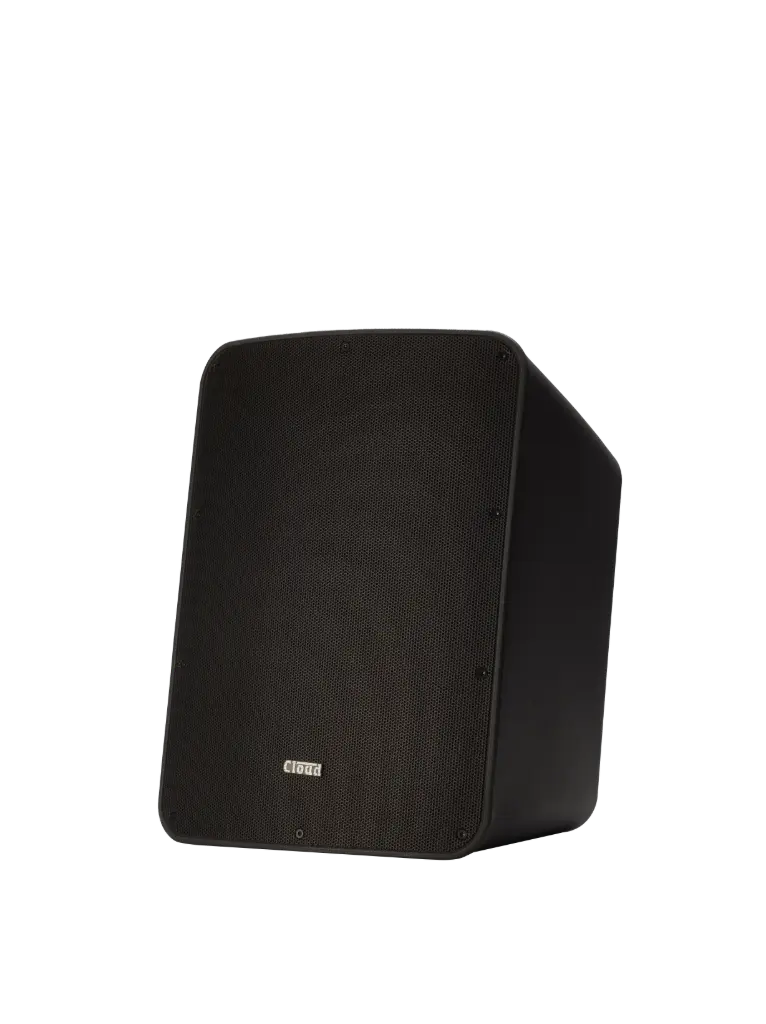

Cloud, CS-S10AD-B - 10” 2-way Active Dante® Surface Mount Speaker (Black)

The Cloud CS-S10AD is the 10" Active Dante version of the CS-S Series of high quality 2-way loudspeakers for internal or external fixed installation in leisure and hospitality venues. They are an excellent choice to produce a “front of house” sound when higher levels and better quality musical reproduction is needed than can be achieved with typical small background music speakers.

Cloud Electronics innovative 10-inch surface mount speakers are a unique product perfect for numerous applications. The chassis is made of LLDPE (Linear low-density polyethylene) making it robust, lightweight and fully recyclable and ideal for outdoor as well as indoor use.

There are 4 variants of the CS-S10 in two colours:
CS-S10 - 8Ω Passive
CS-S10T - 70/100v
CS-S10A - Active
CS-S10AD - Active Dante

The new range consists of two additional speaker sizes:

The Loudspeakers are available in three sizes, based on the diameter of the LF driver. All sizes feature a coaxial speaker design using a 1" diameter HF compression driver mounted within a 8, 10 or 12 inch diameter treated cloth surround.

CS-S10AD

  • 10" Woofer (Paper Treated with Cloth Treated Surround)
  • 1" Exit Compression Drive
  • Dual Concentric Design
  • ClassD Amplifier and Digital SMPS
  • Standard RJ45 Ethernet socket for direct connection to Dante™ network
  • AES67 compatible
  • 250w Continues Power / 375w Peak Power
  • Two balanced analogue mic/line inputs (Neutrik® Combo XLR/ TRS jack and 3-pin Euroblock)
  • 5 DSP Pushbutton Presets
  • Dynamic microphones may be connected directly to the inputs • Additional stereo line input on 3.5 mm TRS jack socket
  • Per-input level controls
  • Master level control
  • Balanced line output (XLR and 3-pin Euroblock) for linking to further loudspeakers
  • Mono/stereo operation – R channel is routed to link output for stereo/different programme use
  • Integrated 1.375" Pole Mount cup and flat ends
  • M6 Mounting Points for 3rd Party Brackets
  • Safety Cable fixing point for Carbine Hooks
  • Optional U-Bracket (CS-BRK810) Black or White, Powder Coated Steel
€ 1,325.00 € 1,325.00 (Tax excluded)
